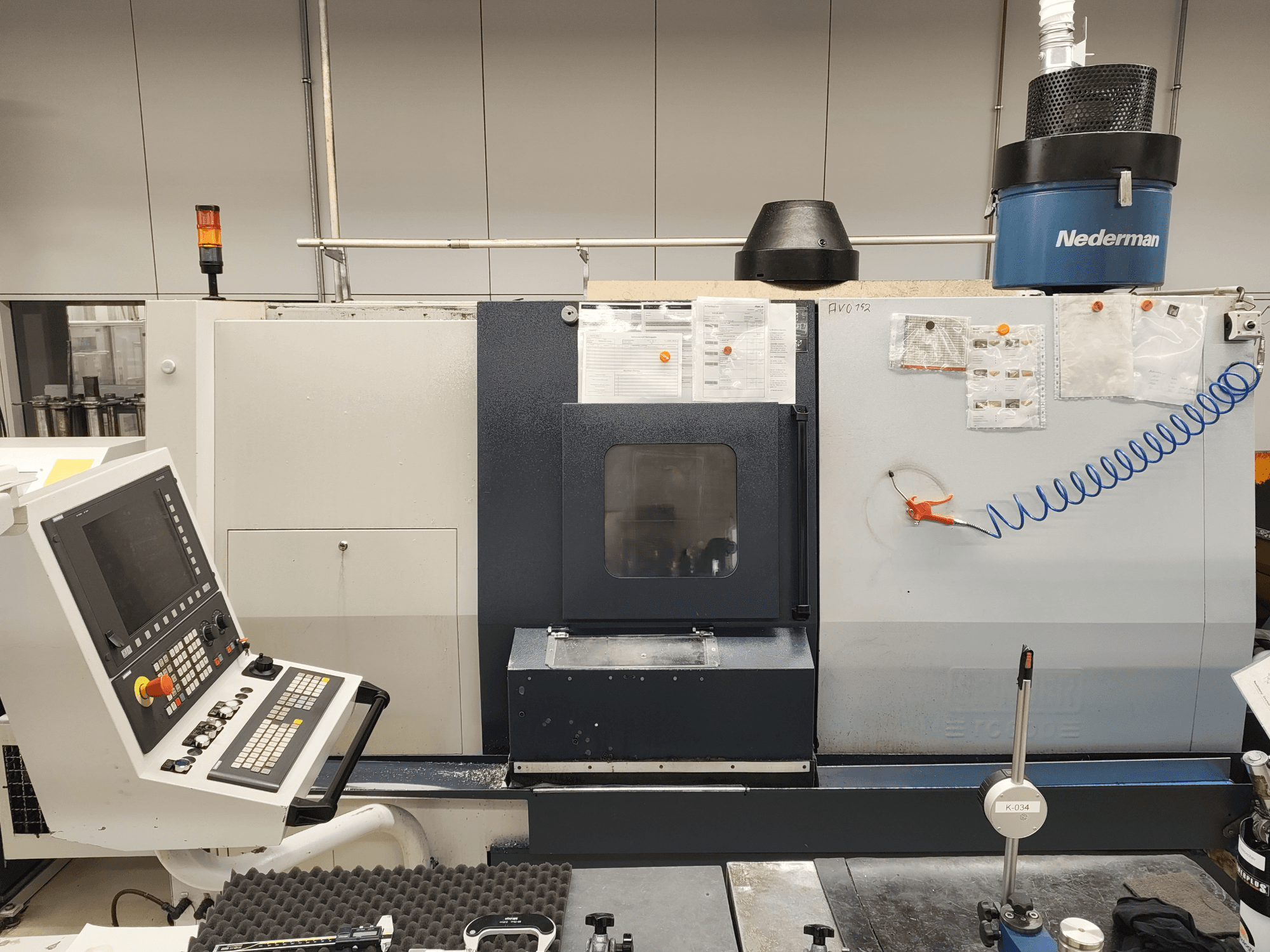

SPINNER - TC 800 110 MCDE-TUR-SPI-2009-00002

• Live Tool Speed: 4,000 rpm

• Live Tool Power (100%/40%): 5 / 9.6 kW

• Rapid Traverse X/Z: 15 / 24 m/min

• Maximum Turning Diameter: approx. 500 mm

• Maximum Swing Diameter: approx. 800 mm

• Distance Between Centers: 800 mm

• Main Spindle Nose: A11

• Main Spindle Power (100%/40%): 22 / 33 kW

• Main Spindle Torque (Gear 1, 100%/40%): 175 / 263 Nm

• Main Spindle Torque (Gear 2, 100%/40%): 700 / 1050 Nm

• Coolant Tank Capacity: approx. 235 l

• Hydraulic Tank Capacity: approx. 11 l

• Central Lubrication Tank: approx. 2–3 l

• Machine Weight: approx. 7,000–7,500 kg

• Supply Voltage: 3/PE ~ 400 V

• Frequency: 50 / 60 Hz

• Operating Current (IB): 63 A

• Rated Current (IN): 80 A

• Collet Chuck Used for Clamping

• Supply Voltage: 3/PE ~ 400 V

• Frequency: 50 / 60 Hz

• Operating Current (IB): 63 A

• Rated Current (IN): 80 A

• Collet chuck used for clamping

• Dust extraction system

Optional equipment:

• Bar feeder

• Parts catcher

• Turret with driven tools

• Chip conveyor

• Tailstock
