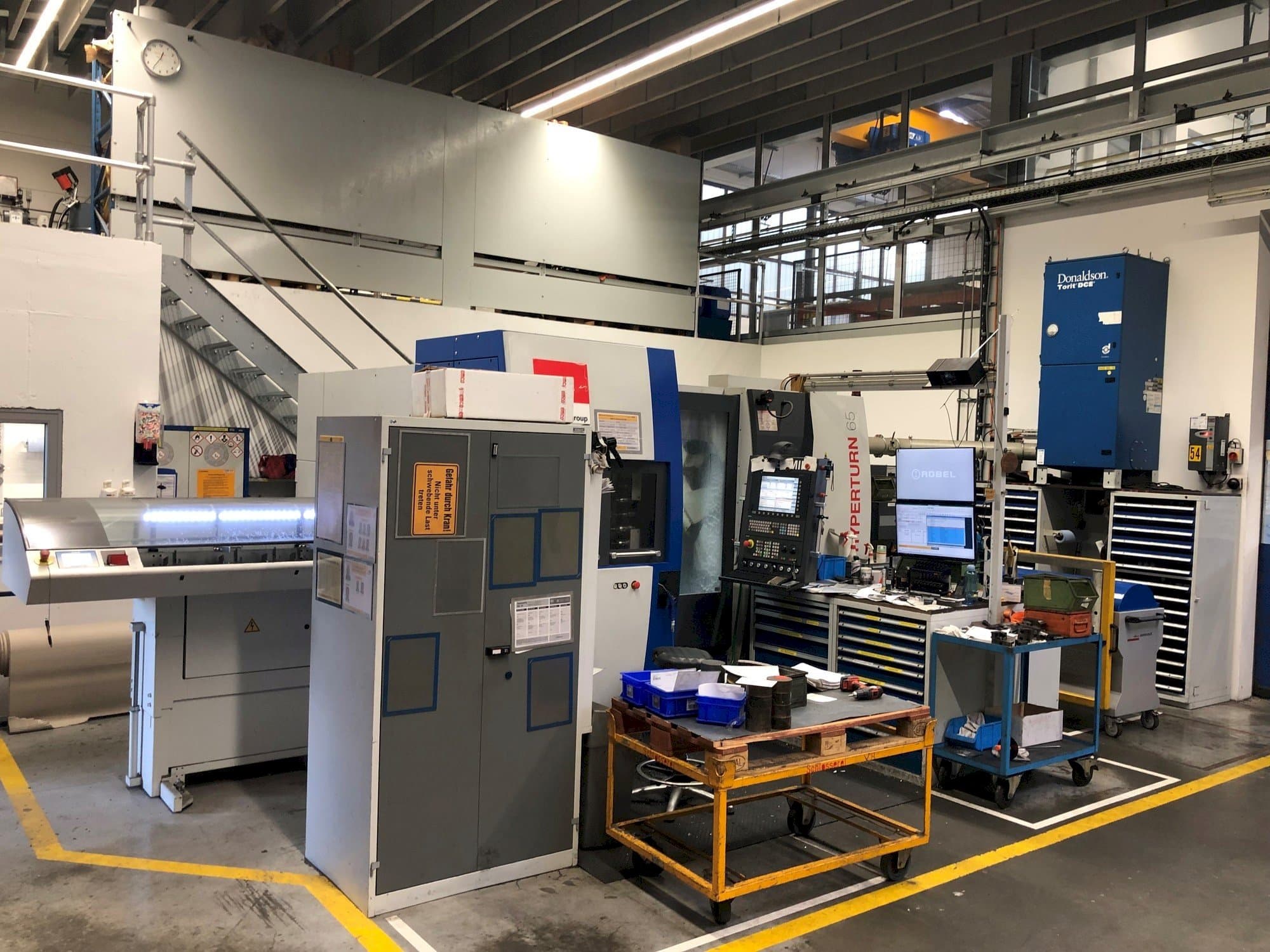

Front view of EMCO HYPERTURM 65 PM  machine

EMCO HYPERTURN 65 PM

EMCO - HYPERTURN 65 PM

2019

329,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This EMCO HYPERTURN 65 PM CNC turning milling center was manufactured in the year 2019 and has 13650 production hours. It is equipped with a SIEMENS control unit. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: EMCO
  • year: 2019
  • MODEL: HYPERTURN 65 PM
  • production hours: 13650
  • application type: Turning
  • Location: Germany
  • machine type: Milling Machine
  • availability: Sold
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-TUR-EMC-2019-00001

Technical Information

Control Unit

  • Brand: SIEMENS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 29kW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Milling spindle and turret incl.
      • - Max. Bar capacity Ø 65mm
      • - Main spindle: kk6
      • - Socket at control panel
      • - B-axis with +/- 110° swivel range
      • - Y-axis with +120 / -100 mm traverse path
      • - Rod passage: Ø 76. 2mm
      • - Draw tube connection: m85 x 2
      • - Spindle connection (din 55026): a2-8
      • - Max. Chuck size: Ø 250mm
    • Qualitative Machine Benefits:
      • - Max. Torque: 250nm
      • - Irco bar feeder: rods up to 1200 mm length
      • - Milling spindle and turret incl. Milling drive
      • - Siemens main spindle: kk6 (max. Bar capacity Ø 65mm) 230 v socket on control panel
      • - B-axis with +/- 110° swivel range
      • - Y-axis with +120 / -100 mm travel range
      • - C-axis for main and counter spindle coolant device integrated in chip conveyor
      • - Bar passage 3 inch (Ø 76. 2mm) instead of Ø 65mm (main spindle), max. Speed: 4000 rpm max. Torque: 250nm max. Power: 29kw max. Chuck size: Ø 250mm
      • - Vdi 40 for ht65-pm tool system vdi 40 replaces vdi 30 for ht65-pm/mt65 1000 with driven tools on the turret! Max. Speed: 4500 rpm max. Torque: 25 nm max. Power: 6. 7 kw drive coupling: din5480
      • - 80-fold chain hsk-t63 an 80-fold chain magazine replaces the 20-fold disk magazine from the basic machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
