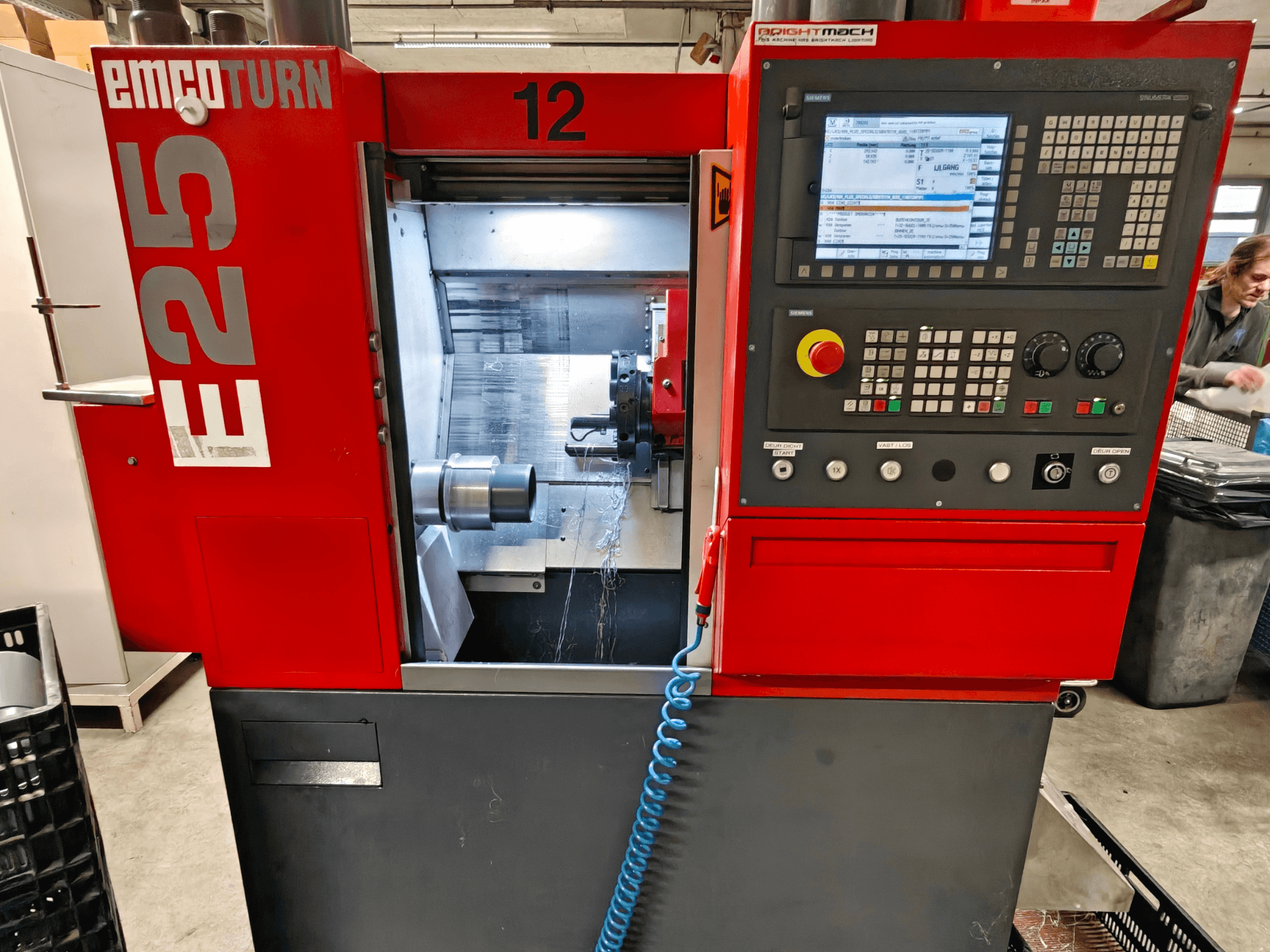

EMCO TURN E25 machine front view, featuring control panel, tool holder, and interior area with cutting tool visible.
EMCO TURN E25 machine front view, featuring control panel, tool holder, and interior area with cutting tool visible.

EMCO - TURN E25NL-TUR-EMC-2014-00001

22,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

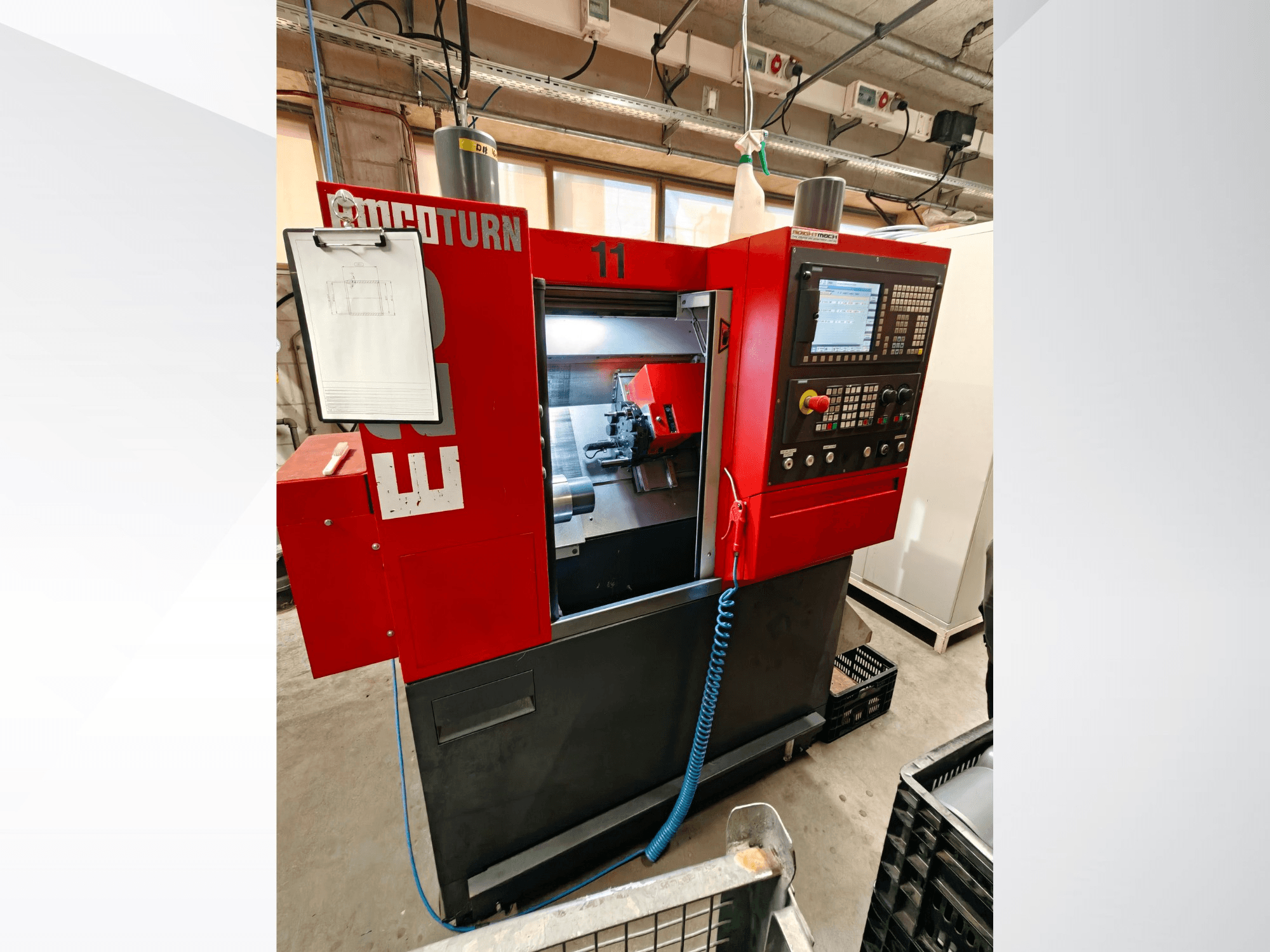

Horizontal turning machine manufactured in 2014. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available.

Overview

  • brand: EMCO
  • year: 2014
  • MODEL: TURN E25
  • production hours: 3971
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • Available from: 31/10/2026
  • control unit brand: SIEMENS

Technical Information - EMCO TURN E25

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 828D

Dimensions

  • Machine Depth: 1270 mm
  • Machine Weight: 1400 kg
  • Machine Width: 1700 mm

Movement

  • Number of Axes: 2
  • X-axis Travel: 100 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Spindle Power: 5.5 kW
  • Spindle Speed: 6300 RPM

Additional Information

  • Availability: 2 units

  • Working range:

    • Swing over bed: 250 mm

    • Max. turning diameter: 85 mm

    • Max. turning length: 225 mm

    • Max. bar capacity: 25.5 mm

    • Distance between centers: 405 mm

  • Main spindle & drive:

    • Spindle connection: Ø 70 h5

    • Max. chuck size: Ø 100 mm

    • Max. torque: 35 Nm

    • C-axis resolution: 0.001°

  • Tooling system:

    • Turret type: VDI 16 disk turret with directional logic

    • Number of tool stations: 12

    • Tool shank cross-section: 12 x 12 mm

  • Feeds & axis performance:

    • Feed force (X / Z): 3000 N / 3500 N

    • Rapid traverse (X / Z): 15 m/min / 24 m/min

    • Positioning spread (Ps): 3 µm

  • Physical dimensions Utilities:

    • Supply voltage: 400 V (3/PE)

    • Total connected load: 6 kVA

    • Coolant tank capacity: 140 liters

    • Sound pressure level: 78 dB(A)

Additional equipment

  • Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
