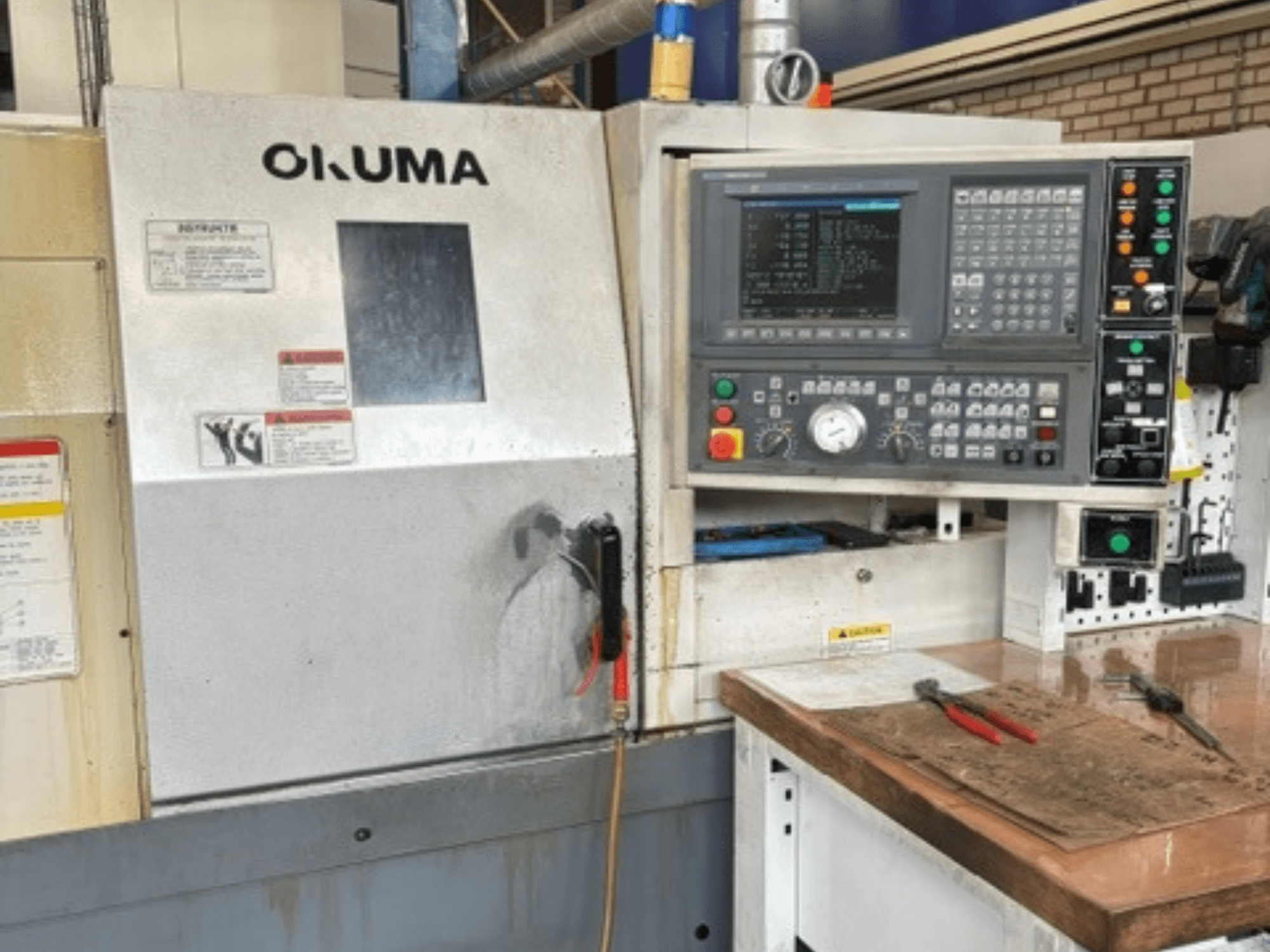

Okuma - ES-L10IINL-TUR-OKU-2008-00001

• Working capacity:

  • Max swing over bed: 520 mm

  • Max swing over cross slide: 450 mm

  • Max turning diameter: 390 mm

  • Max turning length: 500 mm

  • Rapid traverse: X 20 m/min, Z 25 m/min

• Main spindle:

  • Spindle bore: 80 mm

  • Speed range: 50–3,000 rpm

  • Gear ranges: 2 automatic

  • Max spindle torque: 416.9 Nm

  • Spindle motor power: 20 kW (continuous), max power at 251 rpm

  • Chuck: 254 mm (10"), through‑hole Ø70 mm

  • Spindle nose: JIS A2-8

• Turret:

  • Type: Okuma MQ turret

  • Stations: 12

  • Tool shank size: 25 × 25 mm

  • Boring bar capacity: Ø40 mm

  • Indexing time: 0.1 s per station

  • Clamping force: 4,000 kg

• CNC control:

  • Okuma OSP-U10L

  • 10.4" TFT colour display

  • NC Operating Monitor

  • Cycle Time Reduction Function

  • Three-colour machine status indicator

• Option included in quotation:

  • 15 kW high-torque spindle, 25–3,000 rpm, max torque 570.7 Nm

Additional equipment

• Chip conveyor

• Automatic coolant system (0.25 kW)

• Tool kit

• Instruction and spare parts manual

• Dutch operating manual
