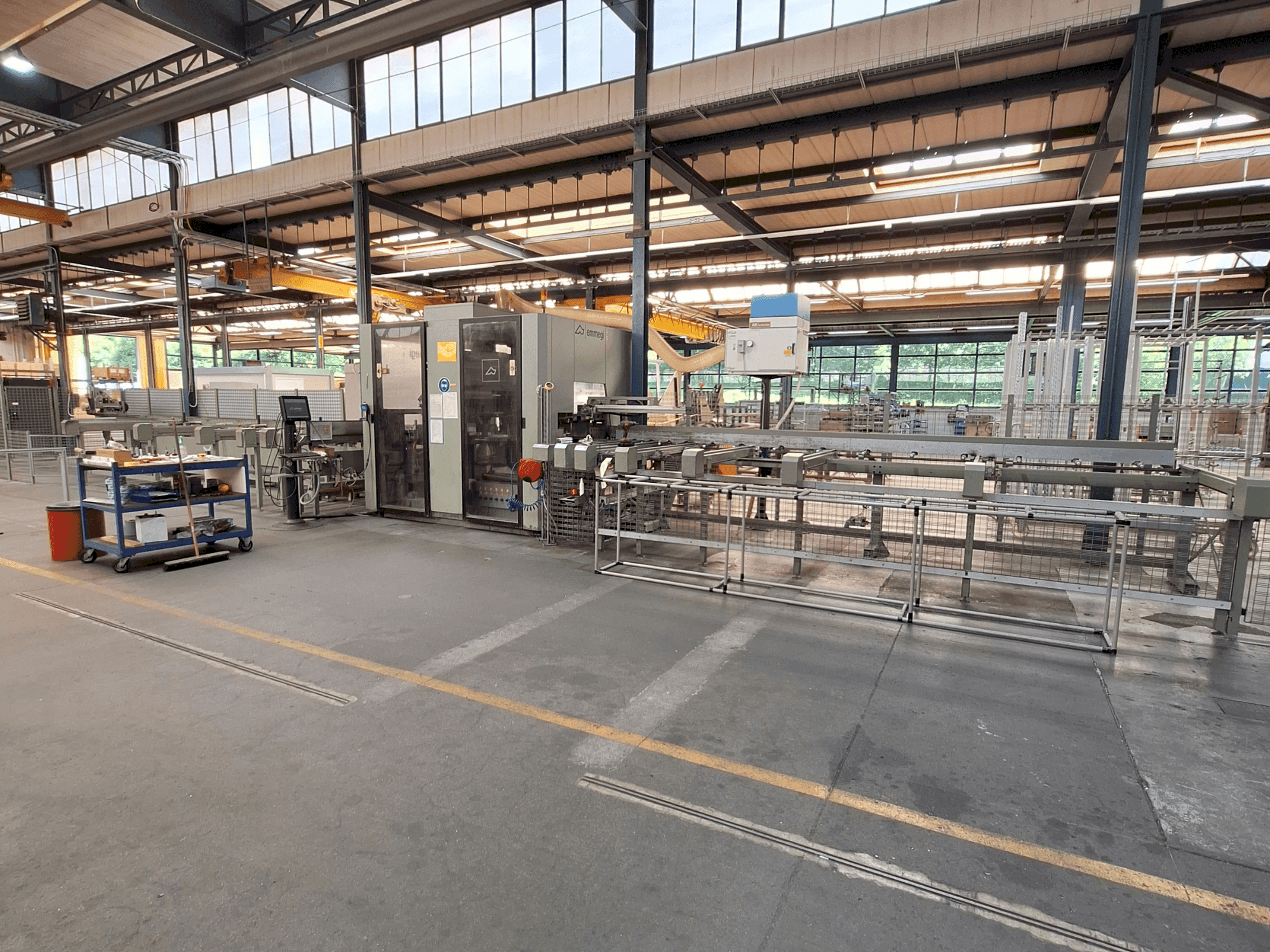

Emmegi - Quadra L1CH-MIL-EMM-2013-00001

Additional Equipment

• - Pressure spraying system
• - Automatic and motor-driven clamping systems
• - Monoblock machine frame made of electro-welded and normalized steel

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Milling unit with 6 air-cooled electrospindles
  • - Max. Power: 5. 6 kw
  • - Functions: milling, drilling, and cutting

Extra information

• - Movement Axes: 12 X-AXIS Travel: 320 mm, Speed: 30 m/min, Acceleration: 1.5 m/sec² Y-AXIS Travel: 402 mm, Speed: 30 m/min, Acceleration: 5 m/sec² Z-AXIS Travel: 395 mm, Speed: 30 m/min, Acceleration: 5 m/sec² A-AXIS Rotation: 0° ÷ 360°, Speed: 6000°/min U-AXIS Travel: 9660 mm, Speed: 120 m/min, Acceleration: 7.5 m/sec² V-AXIS Travel: 138 mm, Speed: 9 m/min, Acceleration: 0.36 m/sec² W-AXIS Travel: 215 mm, Speed: 9 m/min, Acceleration: 0.36 m/sec² H-AXIS Travel: 627 mm, Speed: 24 m/min, Acceleration: 2.5 m/sec² P-AXIS Travel: 880 mm, Speed: 30 m/min, Acceleration: 5 m/sec² Q-AXIS Rotation: 298°, Speed: 6600°/min B-AXIS Travel: 790 mm, Speed: 60 m/min C-AXIS Travel: 47 mm, Speed: 9 m/min Operation and Control Control cabinet with cooling system CNC-PC with Celeron M 1.5 GHz processor 15" Touch Screen Display 1 GB RAM, 4 GB Compact Flash memory 1 USB port, RJ45 network card
