DOOSAN - VC 630/5AxPT-MIL-DOO-2013-00002

Name: DOOSAN VC 630/5Ax
Brand: DOOSAN
SKU: PT-MIL-DOO-2013-00002
Price: 108500 EUR
Availability: InStock

108,500 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN VC 630/5Ax For Sale | gindumac.com

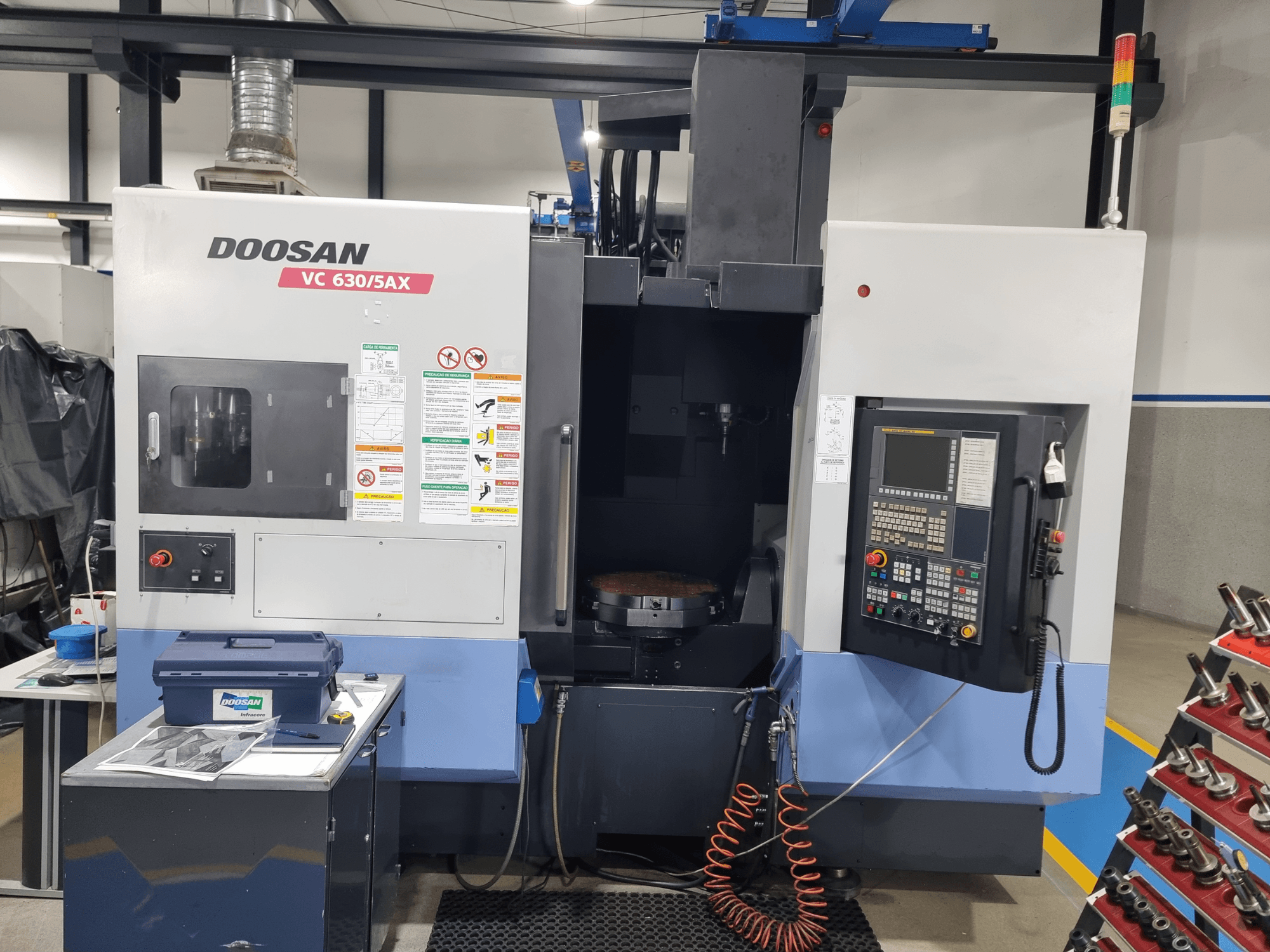

This 5-axis DOOSAN VC 630/5Ax was manufactured in 2013. It features an impressive X-axis travel of 650 mm, Y-axis travel of 765 mm, and Z-axis travel of 520 mm. The machine includes a maximum workpiece weight capacity of 500 kg and a spindle speed of up to 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the DOOSAN VC 630/5Ax universal machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2013
MODEL: VC 630/5Ax
application type: Milling
Location: Portugal
machine type: Universal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN VC 630/5Ax

Control Unit

Control Brand: FANUC
Control Model: 31i-5

Dimensions

Machine Height: 3295 mm
Machine Length: 3537 mm
Machine Weight: 12500 kg
Machine Width: 3200 mm

Movement

Number of Axes: 5
X-axis Travel: 650 mm
Y-axis Travel: 765 mm
Z-axis Travel: 520 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Speed: 12000 RPM
Tool Stations: 40

Additional Information

Travels: A (tilt) +30° to -120°; C (rotation) 360°
Spindle nose to table: Standard 160–680 mm; with APC 210–730 mm
Spindle center to column guideway: 220 mm
Rapid traverse: X/Y/Z 40/40/36 m/min; A/C 20/30 rpm
Cutting feed: X/Y/Z 18,000 mm/min; A/C 7,200 deg/min
Table: Ø630 mm (standard); APC pallet 500 x 500 mm
Max workpiece: 500 kg; dimensions standard Ø730 x 500 mm; with APC Ø730 x 450 mm
Min table indexing: 0.001°
Spindle: Built-in; 12,000 rpm; ISO #40 7/24 BIG-PLUS (optional HSK-A63)
Max spindle torque: 204 N·m
Spindle motor power: FANUC 22/18.5 kW
ATC: MAS403 BT40 (options CAT40/DIN40); 40 tools (options 60/81/101/121); max tool Ø adj 80 mm, without adj 125 mm; max tool length 300 mm; fixed address; tool-to-tool 1.0 s; chip-to-chip 8.5 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
