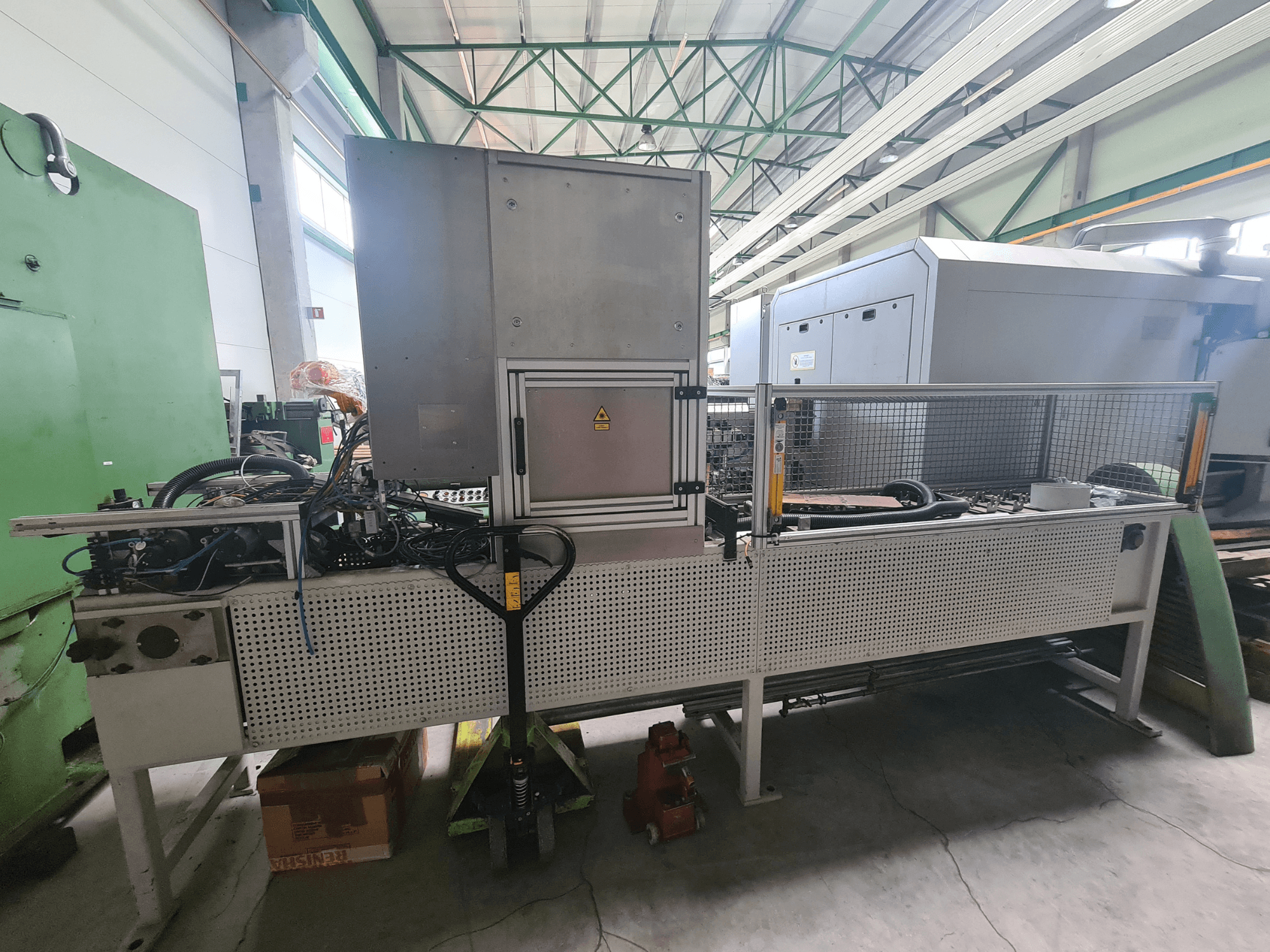

RASOMA - EBZ 200-500LV-MIL-RAS-2018-00001

Aditional information

• Electrical Connection: 3×400V 50Hz

• Control Voltage: 24VDC, 230VAC

• Rated Current: 92 A

• Max Fuse: 125 A

• Power Rating: 62 kW

• Spindle Speed: 0–2000 rpm

• Tool Spindle: Rated Power 7.5 kW, rotation both sides, HSK-C 63, water-cooled, Siemens motor

• Max Z-axis speed: 60 m/min, travel 450 mm

• Max Y-axis speed: 30 m/min, travel 230 mm

• Max X-axis speed: 30 m/min, travel 230 mm

• Max acceleration X/Y/Z: 5 m/s²

• Hydraulic Unit: Capacity 60 L, Max Pressure 200 bar, Operating 180 bar, Bladder accumulator 120 bar, Oil HLP 46

• Cooling System: Tank 75 L, Cooling capacity 7.5 kW, Pump 40 L/min, Cooling medium water + 30% antifreeze

• Chip Conveyor: Discharge height 1150 mm

• Compressed Air: 5 bar, quality per ISO 8573-1:2010

• Ambient Temperature: 15–40°C

• Ambient Air Conditions: Dust ≤1 mg/m³, SO2 ≤1.5 mg/m³, Water 5–15 g/m³
