Engel Vc 5160/260

Photo Gallery

Engel - Vc 5160/260AT-INJ-ENG-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

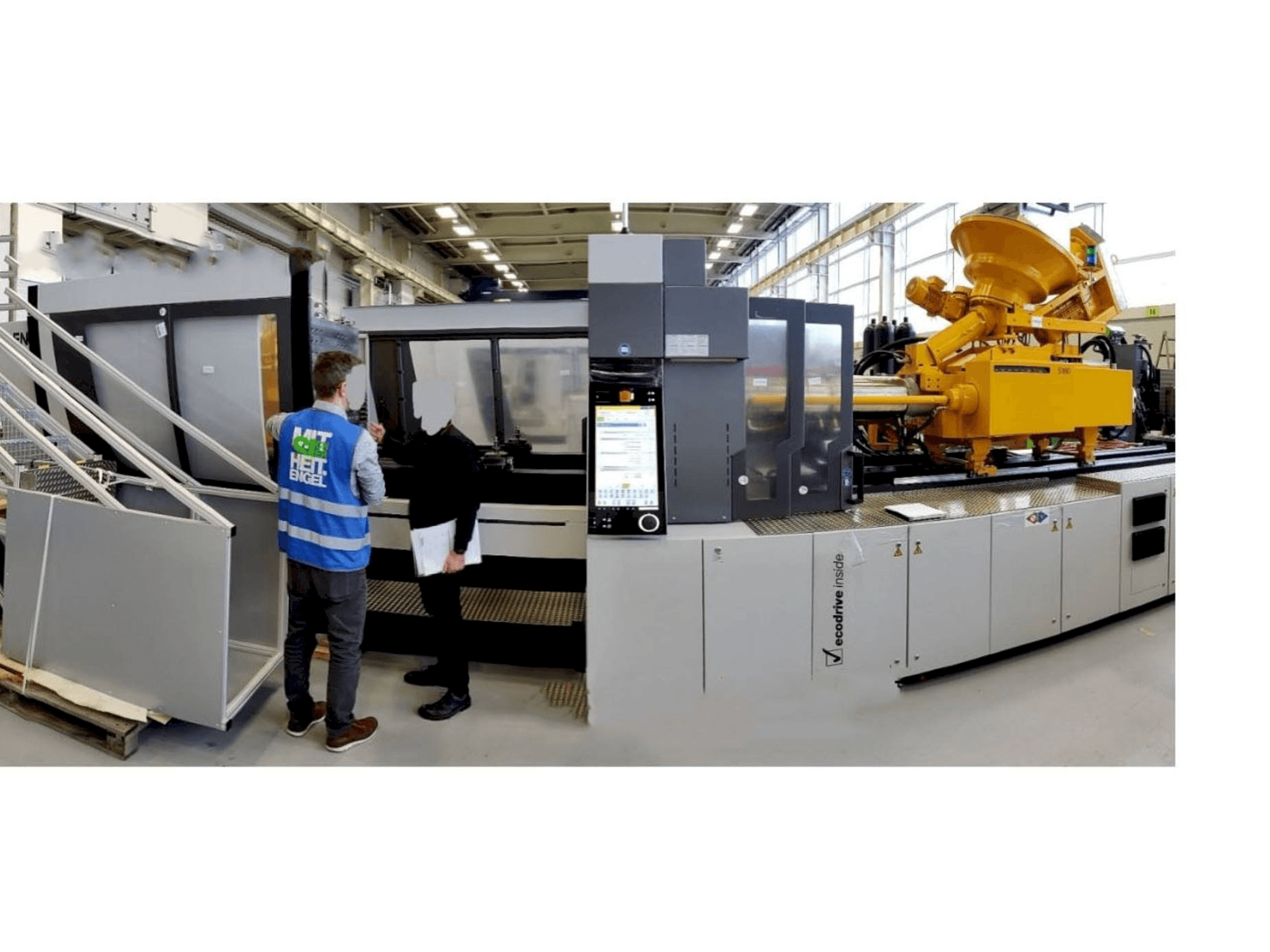

This ENGEL Vc 5160/260 Injection Moulding Machine was manufactured in Germany in the year 2019 and it has never been used before. It incorporates a clamping force of 2600 kN and an opening stroke 909 mm. This machine is equipped with several options as an integrated vacuum pump and a Roto Feeder for BMC feeding. It is like new.

Overview

brand: Engel
year: 2019
MODEL: Vc 5160/260
application type: Injection Moulding
Location: Austria
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Engel Vc 5160/260

Injection Unit

Screw diameter: 105 MM
Injection pressure: 1469 BAR
Nozzle pressure: 150 KN

Clamping unit

Clamping force: 2600 kN
Opening stroke: 909 mm
Mould height min: 800 mm
Size of mold platens: 1100 x 1000 mm

Additional Equipment

- interface for temperature control units
- integrated vacuum pump
- roto feeder for BMC feeding
- mould injection pressure monitoring
- hydraulic and pneumatic core pullers
- el. mould heating

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Machine is like new, never run in production.
- - Currently stored

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
