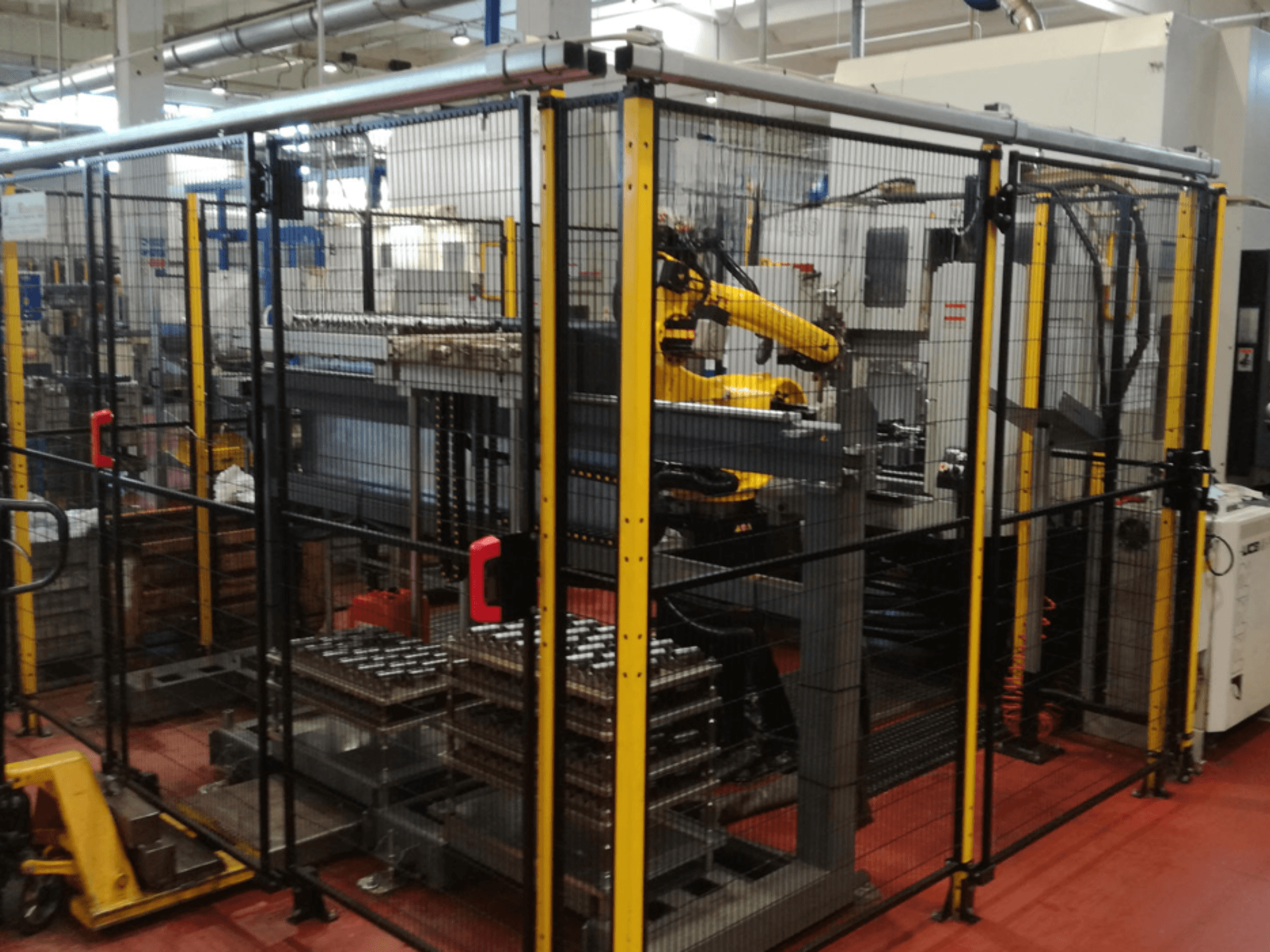

Enshu EV450 vertical machining center in a fenced workspace, featuring robotic arms and multiple stacked workpieces. Front view.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Enshu EV450

Photo Gallery

Enshu - EV450 IT-MIL-ENS-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Enshu EV450 For Sale | gindumac.com

This 3-axis Enshu EV450 was manufactured in 2001. It features an X-axis travel of 560 mm, Y-axis travel of 450 mm, and Z-axis travel of 460 mm. The machine is equipped with tooling for keyway machining and has a spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the Enshu EV450 vertical machining center we have for sale. Contact us for further details.

Overview

brand: Enshu
year: 2001
MODEL: EV450
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Enshu EV450

Movement

Number of Axes: 3
X-axis Travel: 560 mm
Y-axis Travel: 450 mm
Z-axis Travel: 460 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 10000 RPM
Taper Size: BT 40
Tool Stations: 20

Additional Information

CNC control: Yasnac J100M
Special configuration: Equipped with tooling for keyway machining
Rapid traverse (X/Y/Z): 40,000 / 40,000 / 40,000 mm/min
Spindle motor power: AC 7.5 kW (10 min), AC 5.5 kW continuous
Pallet changer: Yes
Pallet size: 400 × 500 mm
Tool magazine capacity: 20 positions
Measuring system: Renishaw probe (2018)
Important maintenance:
- Tool magazine gearbox serviced/repaired (2021)
- Z-axis replaced (2019)
- Y-axis replaced (2019)
- Ballscrews overhauled (2019)
- Telescopic covers replaced (2019)
- Spindle line repaired (2019)
- Spindle taper overhauled (2019)

Additional equipment

RRRobotica Atom 20 S automation cell (2015), fully functional and certified
Pallet storage system available with the robot cell
Note: Robot/work cell is included in the machine sale price

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
