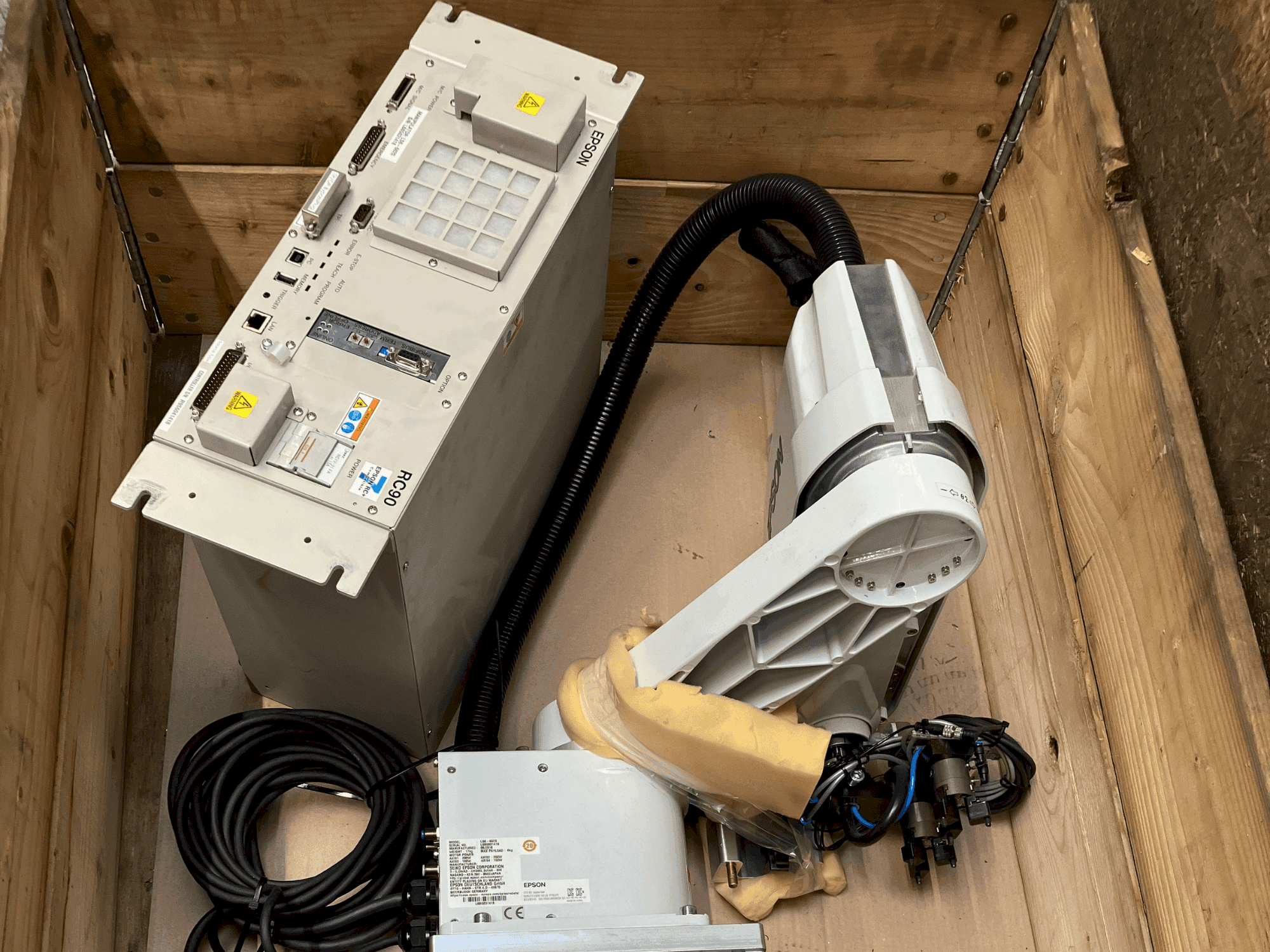

Front view of EPSON LS3-401S  machine

EPSON - LS3-401SDE-ROB-EPS-2018-00002

5,300 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis EPSON LS3-401S robot arm was manufactured in 2018. It features a maximum operating speed of 6000 mm/s for joints #1 and #2, and a payload capacity up to 3 kg. Ideal for tasks requiring high speed and precision, it operates efficiently with a standard cycle time of 0.42 seconds. Consider the opportunity to buy this EPSON LS3-401S robot arm. Contact us for more information about this machine.

Overview

  • brand: EPSON
  • year: 2018
  • MODEL: LS3-401S
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm
  • availability: Immediately

Technical Information - EPSON LS3-401S

General Data

  • Machine weight: 14 kg

Main drive

  • Number of axis: 4

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Mounting type: tabletop
      • - Arm length: 400 mm (arm #1, #2)
      • - Controller: rc90 safety
      • - Standards: ce, ansi/ria15. 06-2012
      • - Payload: rated: 1 kg
      • - Payload: maximum: 3 kg
      • - Standard cycle time: 0. 42 sec
      • - Joint #4 inertia: rated: 0. 005 kg·m²
      • - Maximum: 0. 05 kg·m²

    Extra information

    • - Movement Max. Operating Speed: Joints #1, #2: 6000 mm/s Joint #3: 1100 mm/s Joint #4: 2600°/s Repeatability: Joints #1, #2: ±0.01 mm Joint #3: ±0.01 mm Joint #4: ±0.01° Max. Motion Range: Joint #1: ±132° Joint #2: ±141° Joint #3 (Std): 150 mm Joint #3 (Clean): 120 mm Joint #4: ±360° Motor Power Consumption: Joint #1: 200 W Joint #2: 100 W Joint #3: 100 W Joint #4: 100 W Joint #3 Downward Force: 100 N Electric Lines: 15Pin (D-Sub) Pneumatic Lines: Φ4 mm × 1, Φ5 mm × 2 Installation Environment: Standard/Cleanroom

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
