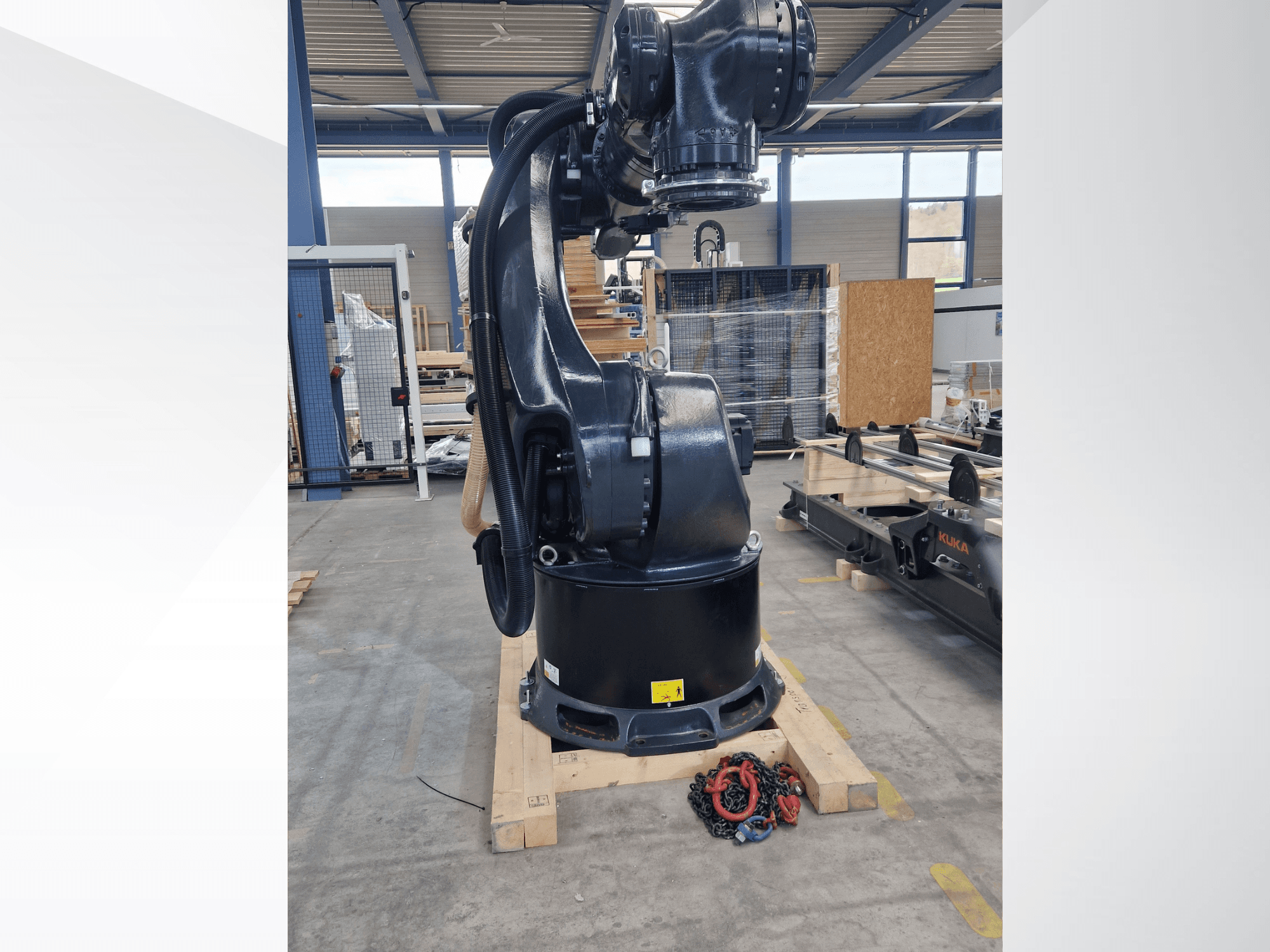

KUKA KR 340 R3330 robot arm in a warehouse, side view showcasing its base and cables, with chains in foreground.
KUKA KR 340 R3330 robot arm in a warehouse, side view showcasing its base and cables, with chains in foreground.

KUKA - KR 340 R3330DE-ROB-KUK-2020-00001

35,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 6-axis KUKA KR 340 R3330 was manufactured in 2020. It features a nominal payload of 340 kg and a maximum reach of 3326 mm, making it suitable for various applications. The robot arm has a work envelope volume of 114.5 m³ and is designed for floor mounting. If you are looking to get high-quality automation capabilities, consider the KUKA KR 340 R3330 robot arm we have for sale. Contact us for further details.

Overview

  • brand: KUKA
  • year: 2020
  • MODEL: KR 340 R3330
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - KUKA KR 340 R3330

Dimensions

  • Machine Weight: 2421 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 418 kg
  • Max. Reach: 3326 mm

Additional Information

- Controlled Axes: 6

- Nominal Payload: 340 kg

- Position Repeatability (ISO 9283): ±0.08 mm

- Work Envelope Volume: 114.5 m³

- Protection Rating (IEC 60529): IP65

- Central Hand Protection Rating (IEC 60529): IP65

- Sound Level: < 75 dB

- Mounting Position: Floor

- Footprint / Mounting Surface: 1050 mm x 1050 mm

- Maximum Supplementary Load (Carousel): 400 kg

- Maximum Supplementary Load (Link Arm): 100 kg

- Maximum Supplementary Load (Arm): 100 kg

- Operating Temperature: 10 °C to 55 °C (283 K to 328 K)

- Controller: KR C4

- Handheld Control Unit: KUKA smartPAD

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
