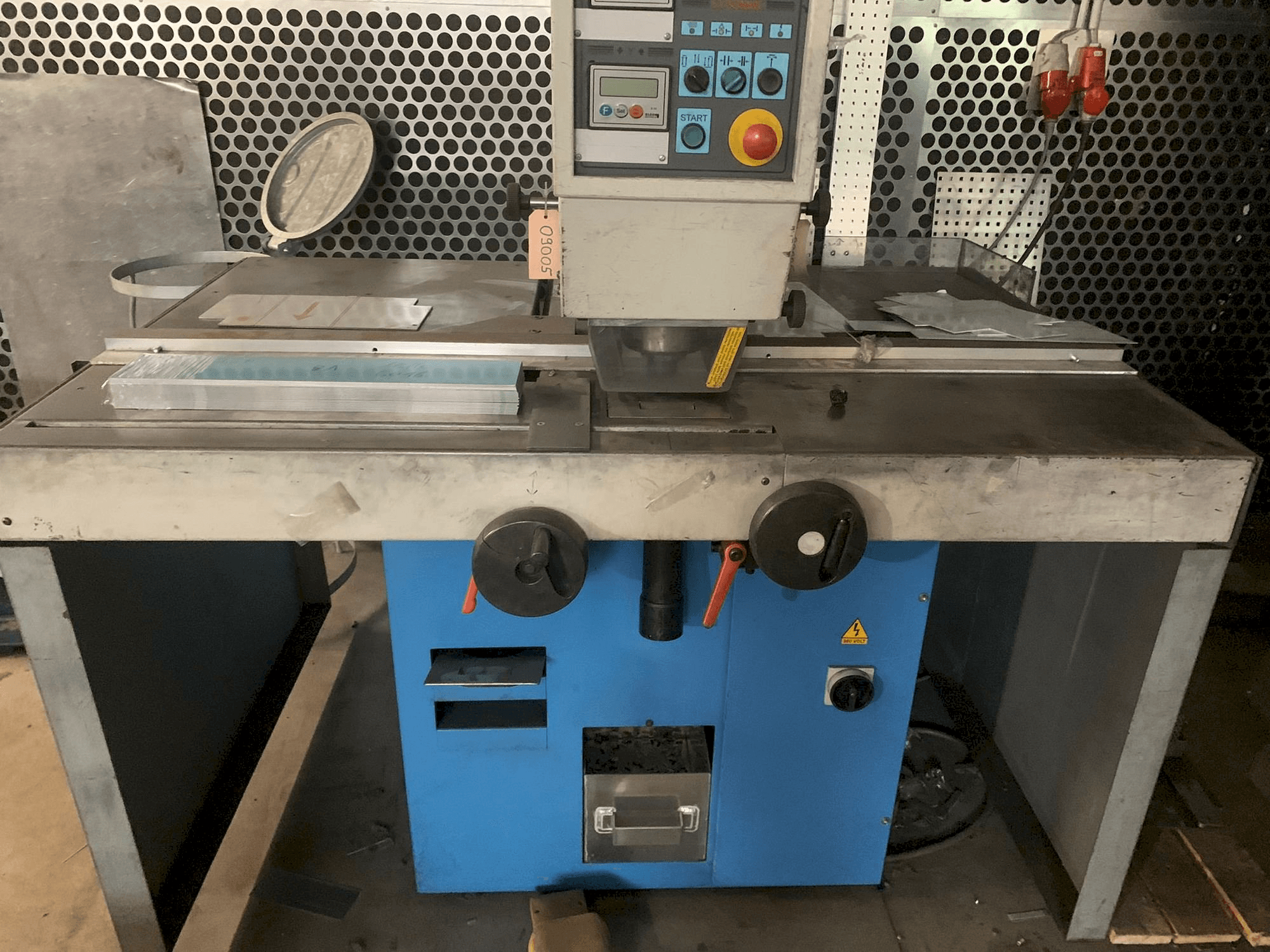

Front view of Euromac XP 750 / 25 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Euromac XP 750 / 25

Photo Gallery

Euromac - XP 750 / 25DE-PUN-EUR-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Euromac XP 750 / 25 Punching machine

This Euromac XP 750 / 25 Punching machine was made in Italy in 1996. It comes with a punching diameter of 105 mm and a table dimensions of 1600 x 1050 mm. This machine runs with a TRUMPF tool and a working force of 25T.

Overview

brand: Euromac
year: 1996
MODEL: XP 750 / 25
application type: Punching
Location: Germany
machine type: CNC Punch Press

Technical Information - Euromac XP 750 / 25

General Data

Measurements width: 2000 MM
Measurements depth: 2200 MM
Measurements height: 1850 MM
Machine weight: 2050 KG

Main drive

Main motor power: 4 Kw

Table

Outer length: 1600 mm
Outer width: 1050 mm

Additional Equipment

- Machine runs with a TRUMPF tool

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working force: 25t
- - Throat: 750 mm
- - Max. Punching diameter: 105 mm
- - Strokes / min: approx. 180/min
- - Max. Stroke (adjustable): 50 mm
- - Stroke adjustment: electronic with indicator
- - X and y axis adjustment: with indicator
- - Oil filling: 100 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
