EXCETEK V650G
EXCETEK - V650G
2016
40,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Excetek V650G Erosion machine

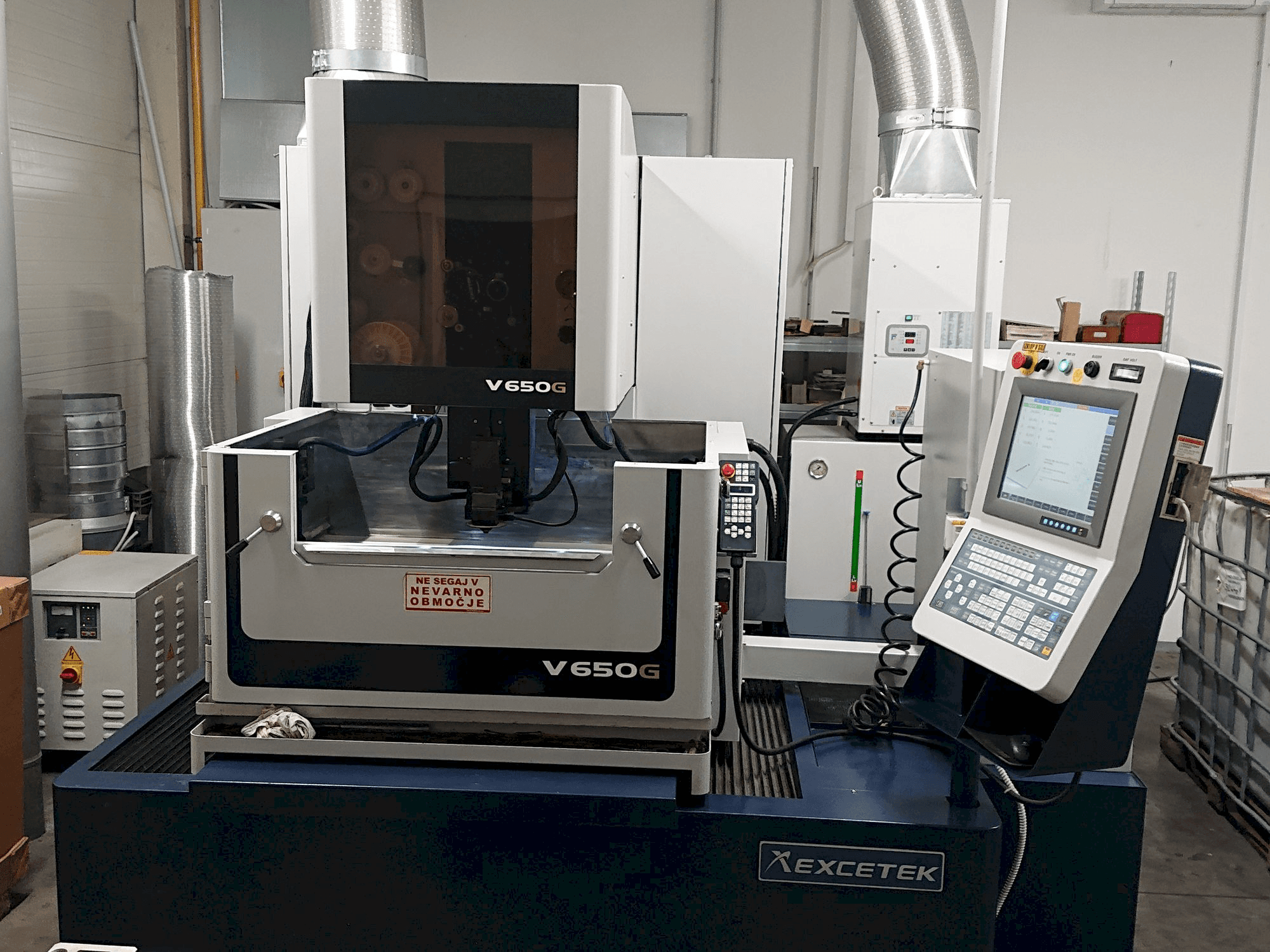

This Excetek V650G Erosion machine was made in 2016 in Taiwan. The machine has a wire diameter of 0.15~0.3 mm.
Overview
- brand: EXCETEK
- year: 2016
- MODEL: V650G
- application type: EDM
- Location: Slovenia
- machine type: Erosion Machine
- availability: Immediately
- GINDUMAC ID: SI-EDM-EXC-2016-00001
Technical Information
General Data
- Measurements width: 2520 mm
- Measurements depth: 2720 mm
- Measurements height: 2290 mm
- Machine weight: 4000 kg
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 650 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 350 mm
- U/V Movement: 160 mm
Additional Information
- Technical Machine Benefits:
- - Maximum workpiece : 1000 x 700 x 345 mm
- - Max workpiece weight: 800 kg
- - Wire diameter: 0. 15~0. 3 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
