➤ Used EXNER EX SBR 200 - Press For Sale | gindumac.com

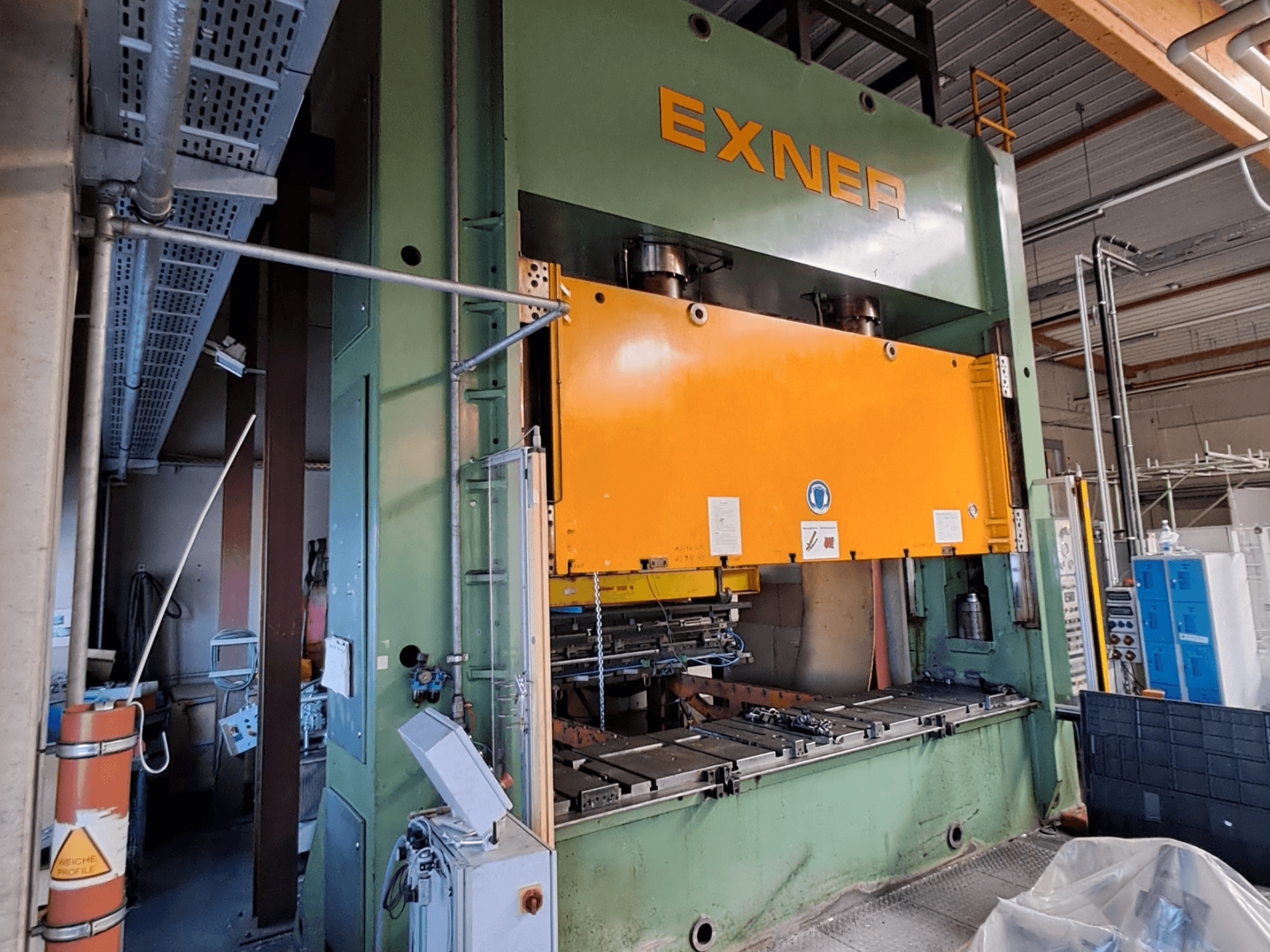

Hydraulic press manufactured in 1995. This EXNER EX SBR 200 features a pressing force of 2000 kN and a drive power of 78 kW. With an oil capacity of 1400 liters and a weight of 52000 kg, this machine is designed for robust performance. If you are looking to get high-quality pressing capabilities, consider the EXNER EX SBR 200 hydraulic press we have for sale. Contact us for further details.

Overview

brand: EXNER
year: 1995
MODEL: EX SBR 200
application type: Bending
Location: Germany
machine type: Hydraulic Press

Technical Information - EXNER EX SBR 200

Dimensions

Machine Height: 5170 mm
Machine Length: 1750 mm
Machine Weight: 50000 kg
Machine Width: 5100 mm
Table Length: 800 mm
Table Width: 3800 mm

Technical Specification

Pressing Force: 2000 Kn

Additional Information

- Pressing Force: 2000 kN

- Drive Power: 78 kW

- Overtravel Distance: 56 mm

- Safety Distance: 235 mm

- Overtravel Time: 147 ms

- Max. Ram Stroke: 700 mm

- Distance Between Columns: 3830 mm

- Installation Height: 1200 mm

- Ram Diameter: 240 mm

- Number of Ram Cylinders: 2

- Table Bed Depth: 800 mm

- Table Bed Width: 3800 mm

- Clamping Plate Thickness: 150 mm

- T-Slots Configuration: 8 slots, 28 mm slot width, 650 mm spacing

- Total Connected Load: 0.900 kVA

- Total Power Requirement: 77.48 kW

- Voltage: 400 V

- Frequency: 50 Hz

- Main Motor 1 (VEM 250 M4): 55 kW, 1475 rpm

- Motor 2 (VEM 132M4): 7.5 kW, 1435 rpm

- Motor 3 (VEM 100Lx4): 3 kW, 1430 rpm

- Motor 4 (VEM 132S4): 5.5 kW, 1440 rpm

- Motor 5 (VEM 132S4): 5.5 kW, 1440 rpm

- Motor 6 (ZG1KMR63G4 VEM): 0.37 kW, 40 rpm

- Oil Cooler Motor (Oiltec TB/33-6): 0.55 kW, 1000 rpm

- Lubrication Pump Motor (Woerner GMA-B): 0.06 kW

- Press Oil Tank Capacity: 1530 liters (ISO VG 46)

- Hand Lubrication Pump Capacity: 1.5 liters (Shell Alvania EP2)

- Motor Lubrication Pump Capacity: 2 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
