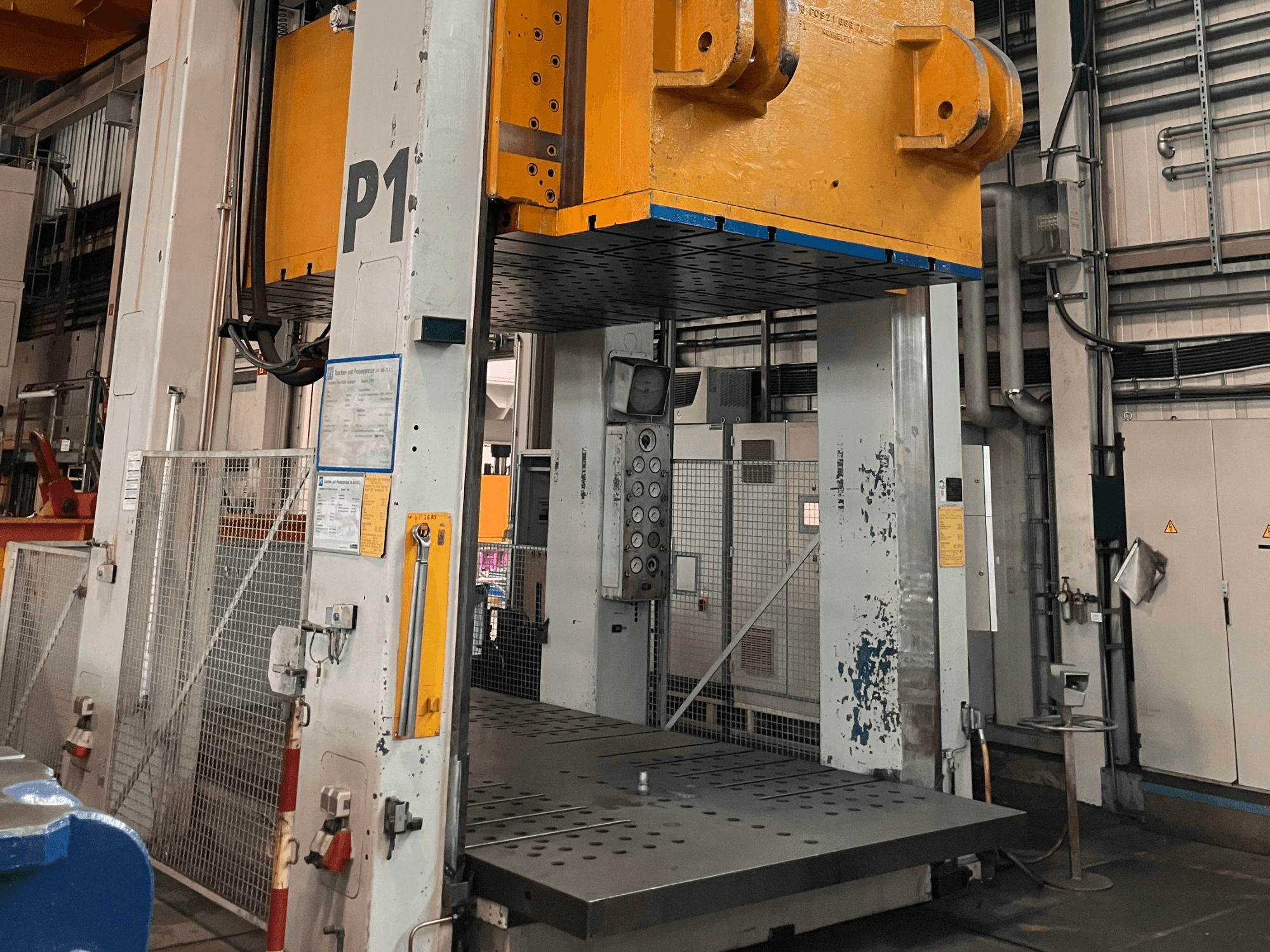

FRITZ MULLER ZAE 400-25.1.1 hydraulic press, front view, showing control panel and large press platform in industrial setting.
FRITZ MULLER ZAE 400-25.1.1 hydraulic press, front view, showing control panel and large press platform in industrial setting.

FRITZ MULLER - ZAE 400-25.1.1DE-BEN-FRI-1980-00001

17,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

Hydraulic press manufactured in 1980. This FRITZ MULLER ZAE 400-25.1.1 features a substantial press force of 400 t and a table size of 1,000 × 900 mm. The ram size is 900 × 800 mm with a ram stroke of 600 mm, providing robust performance for various applications. If you are looking to get high-quality pressing capabilities, consider the FRITZ MULLER ZAE 400-25.1.1 machine we have for sale. Contact us for further details.

Overview

  • brand: FRITZ MULLER
  • year: 1980
  • MODEL: ZAE 400-25.1.1
  • application type: Bending
  • Location: Germany
  • machine type: Hydraulic Press

Technical Information - FRITZ MULLER ZAE 400-25.1.1

Dimensions

  • Machine Weight: 25000 kg
  • Table Length: 900 mm
  • Table Width: 1000 mm

Technical Specification

  • Max. Stroke: 600 mm
  • Pressing Force: 3924 Kn

Additional Information

  • Press Force: 400 t

  • Table Size: 1,000 × 900 mm

  • Ram Size: 900 × 800 mm

  • Ram Stroke: 600 mm

  • Max. Shut Height: 1,000 mm

  • Table Opening: 400 mm

  • Hydraulic Pressure: 250 bar

  • Hydraulic Flow Rate: 40 l/min

  • Machine Weight: 25,000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
