FADAL - VMC4525EE-MIL-FAD-2000-00001

Name: FADAL VMC4525
Brand: FADAL
SKU: EE-MIL-FAD-2000-00001
Price: 12000 EUR
Availability: InStock

12,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FADAL VMC4525 For Sale | gindumac.com

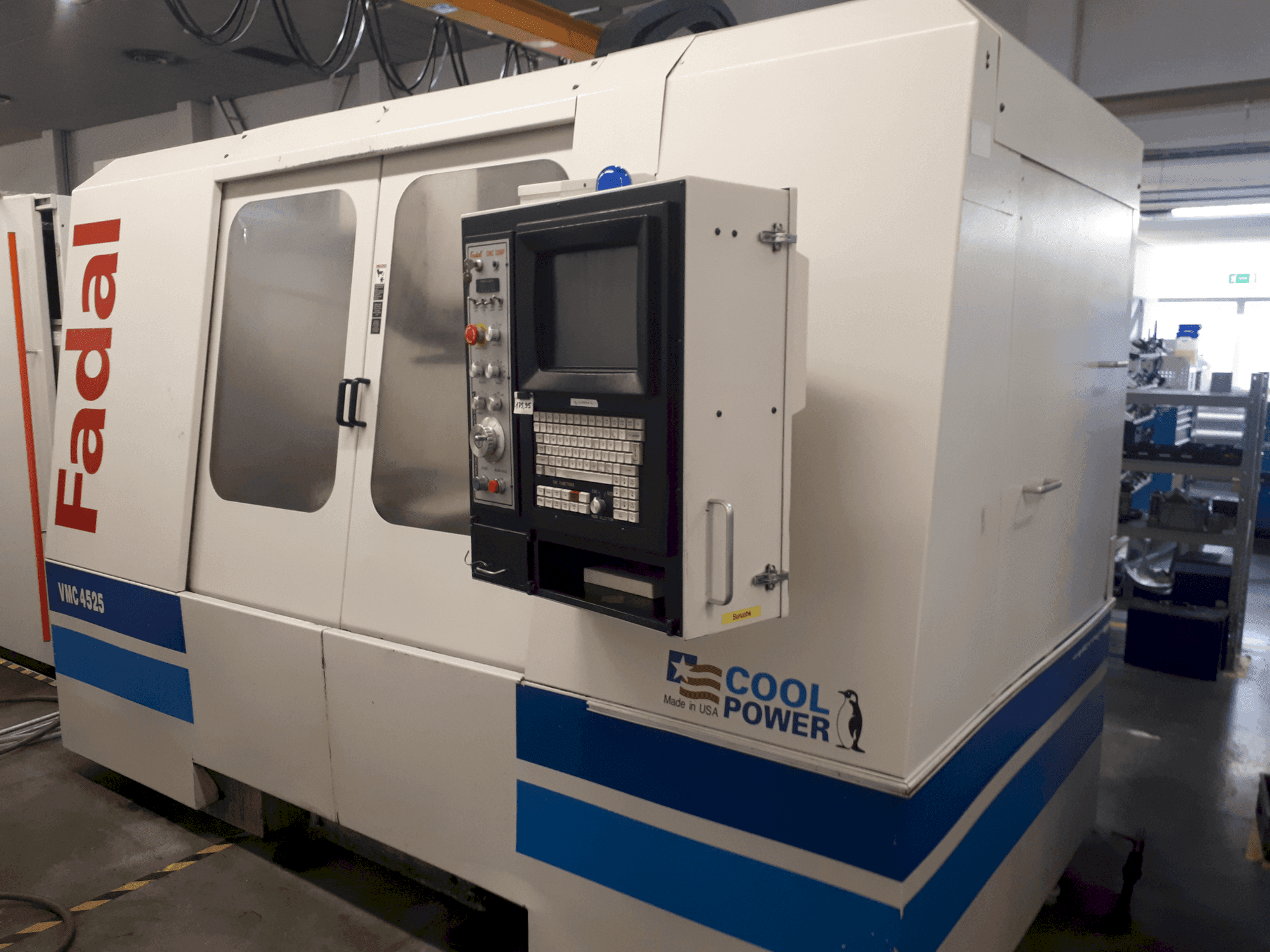

This 3-axis Fadal VMC4525 was manufactured in 2000. A robust vertical machining center featuring a Fadal CNC 88HS control, it offers X/Y/Z travels of 1,143/635/610 mm and a table size of 1,359 × 635 mm. It supports a maximum workpiece weight of 1,928 kg and includes a 24-tool capacity magazine. Ideal for complex milling tasks. Contact us for more information about this machine.

Overview

brand: FADAL
year: 2000
MODEL: VMC4525
application type: Milling
Location: Estonia
machine type: Vertical Machining Centre

Technical Information - FADAL VMC4525

General Data

Measurements width: 2300 mm
Measurements depth: 3250 mm
Measurements height: 3040 mm
Machine weight: 6169 kg

Main drive

Spindle speed range: 10–10000 1/MIN
Tool taper: 40
Number of axis: 3

Movement

X-AXIS Movement: 1143 mm
X-AXIS Rapid traverse: 30.5 m/min
Y-AXIS Movement: 635 mm
Y-AXIS Rapid traverse: 30.5 m/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 17.8 m/min

Tools

Max weight: 6.8 kg
Max tool diameter: 101.6 mm
Max tool length: 381 mm

Additional Information

Table size: 1,359 × 635 mm
Floor to table height: 787 mm
T-slots: 5 × 18 mm, 125 mm spacing
Spindle nose to table: 102–610 mm
Spindle center to column ways: 708 mm
Spindle orientation: Electromechanical
Spindle motor: 16.8 kW (22.5 HP), 2-speed vector drive
Optional high-torque motor: 22.4 kW (30 HP), 270 ft-lbs torque
Torque: 300 Nm (standard) / 375 Nm (optional)
Axis drive motors (X/Y/Z): AC, 16,903 N peak thrust
Ball screw diameter (X/Y/Z): 40 mm
Cutting feed rate: 0.25–10,160 mm/min (15,240 mm/min max @150%)
Tool changer: Dual arm, random, bi-directional
Tool magazine capacity: 24 tools
Tool change time: 1.9 s
Positioning accuracy: ±0.004 mm
Repeatability: ±0.0015 mm
Glass scales: Optional on X/Y/Z
Coolant: Spindle, headstock, and ballscrews cooled
Air requirement: 5.5 bar (120 psi, 15 scfm)
Electrical requirement: 230 VAC, 40/60 A (or 480 VAC, 20/25 A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
