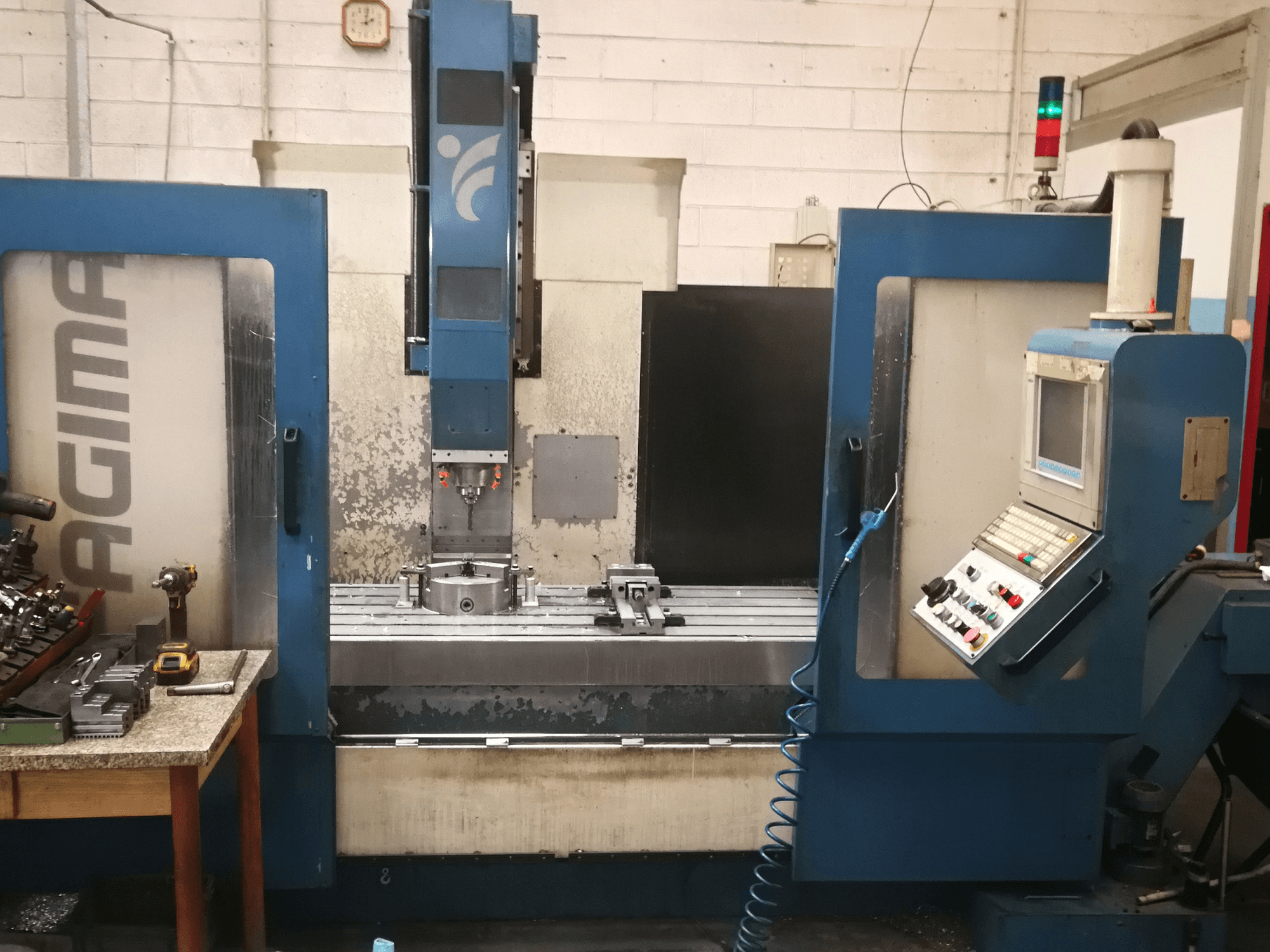

This 3-axis FAGIMA FAST 160 was manufactured in 1999. It features an X-axis travel of 1600 mm, Y-axis travel of 700 mm, and Z-axis travel of 700 mm. The machine includes a table size of 1800 × 700 mm with a maximum table load of 1500 kg. If you are looking to get high-quality machining capabilities, consider the FAGIMA FAST 160 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Fagima
- year: 1999
- MODEL: FAST 160
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Fagima FAST 160
Dimensions
- Machine Height: 2800 mm
- Machine Length: 4000 mm
- Machine Weight: 9000 kg
- Machine Width: 3000 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1600 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 700 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
Additional Information
Table:
Size: 1800 × 700 mm
Spindle:
Torque: 75 Nm
Feed rates:
Rapid X/Y/Z: 20,000 mm/min
Cutting feed: 1 – 10,000 mm/min
Tooling:
Tool changer: 38 positions
Additional information:
Machine overhauled in 2016
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
