FANUC - ROBODRILL α-T21iDIT-MIL-FAN-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used FANUC ROBODRILL α-T21iD For Sale | gindumac.com

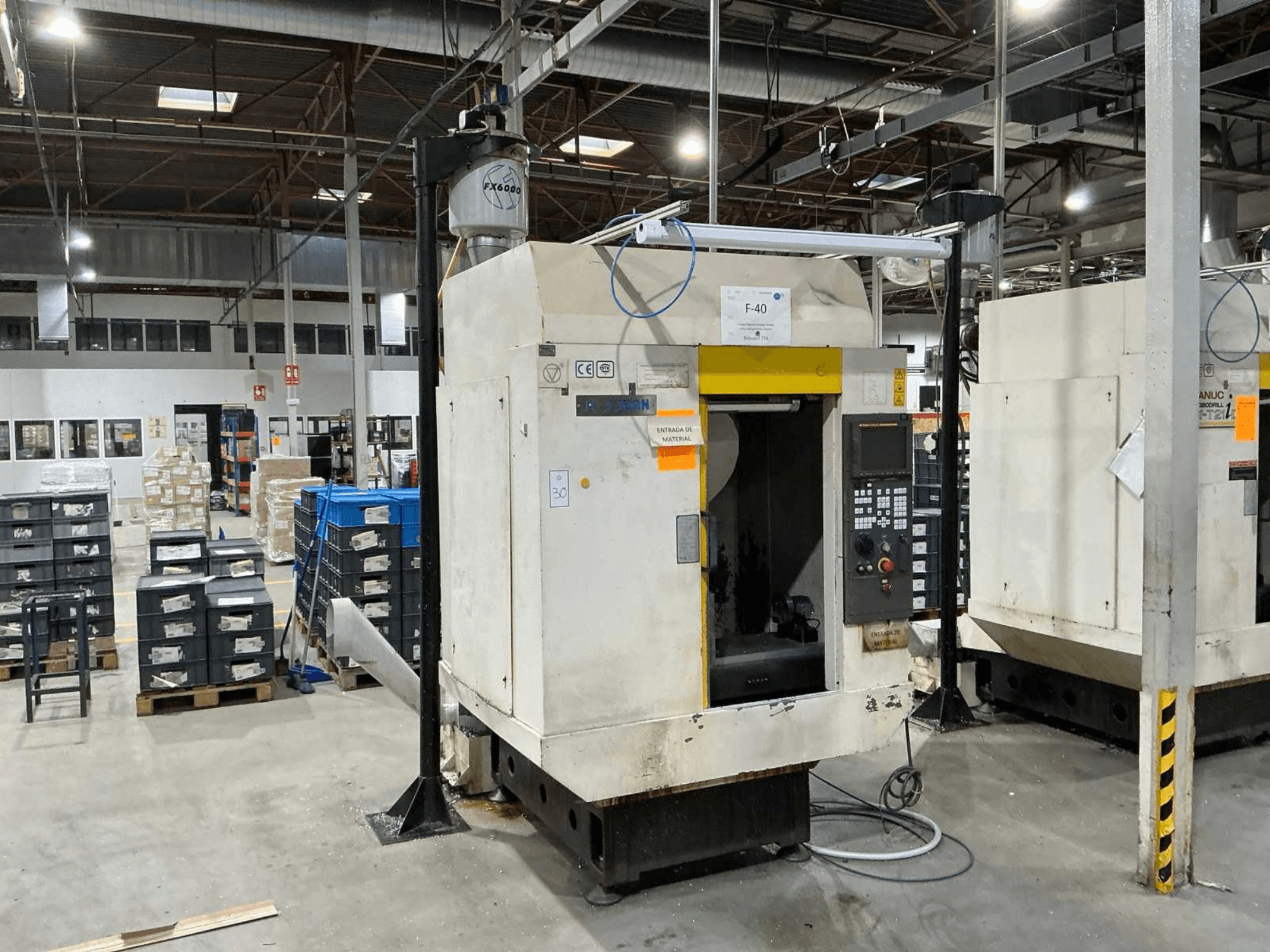

This 3-axis FANUC ROBODRILL α-T21iD was manufactured in 2003. It features an X-axis travel of 500 mm, Y-axis travel of 400 mm, and Z-axis travel of 330 mm. The machine has a maximum spindle speed of 10,000 rpm and a maximum table load capacity of 250 kg. If you are looking to get high-quality machining capabilities, consider the FANUC ROBODRILL α-T21iD vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2003
- MODEL: ROBODRILL α-T21iD
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC ROBODRILL α-T21iD
Control Unit
- Control Brand: FANUC
- Control Model: Series 16i-MB
Dimensions
- Table Load: 250 kg
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 330 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Rapid feeds (X/Y/Z): up to 54 m/min
Installed electrical power: 10 kVA
Supply voltage: 200–220 V, 50/60 Hz, three-phase
Total cutting time shown: 1,448 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
