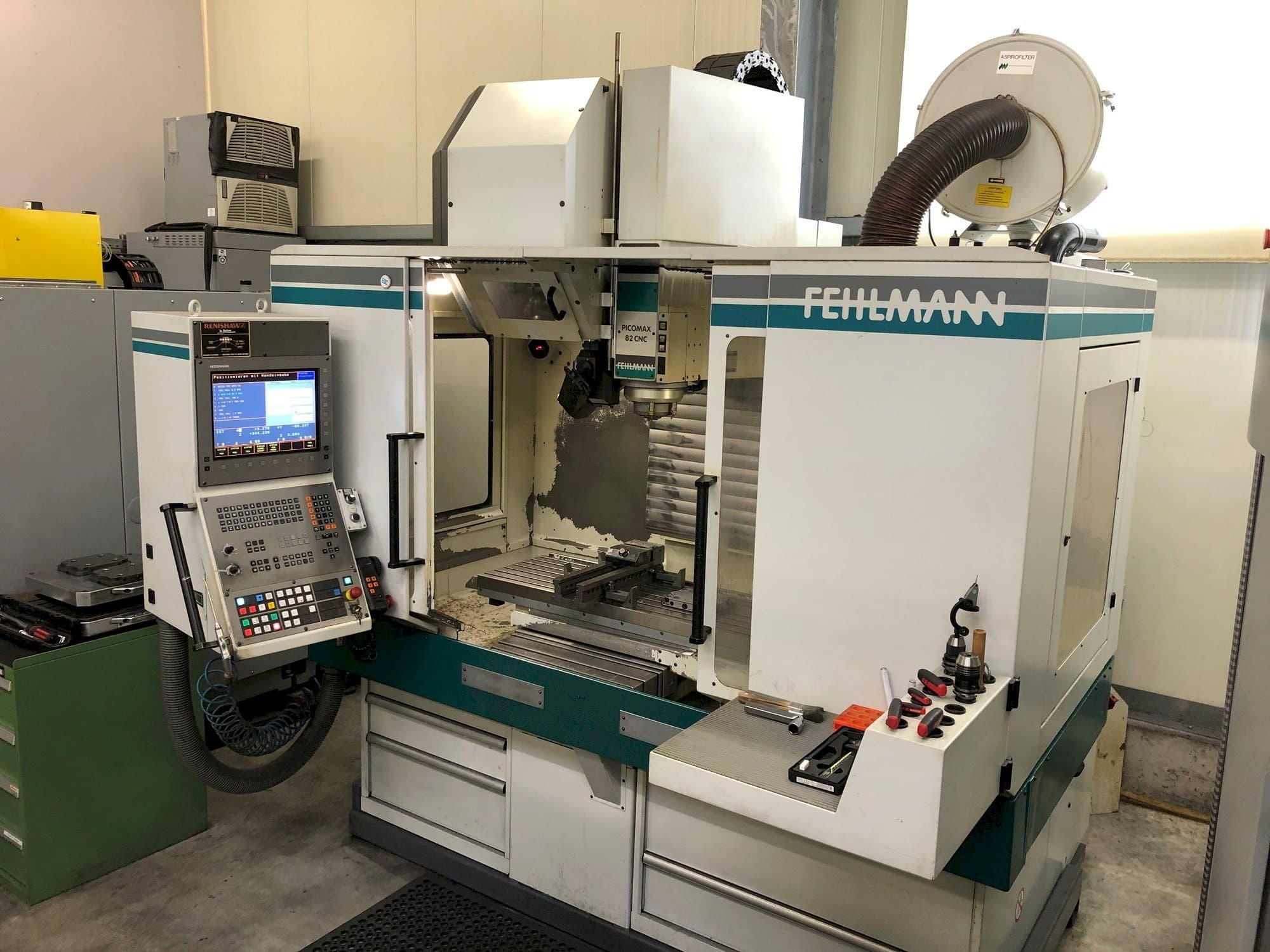

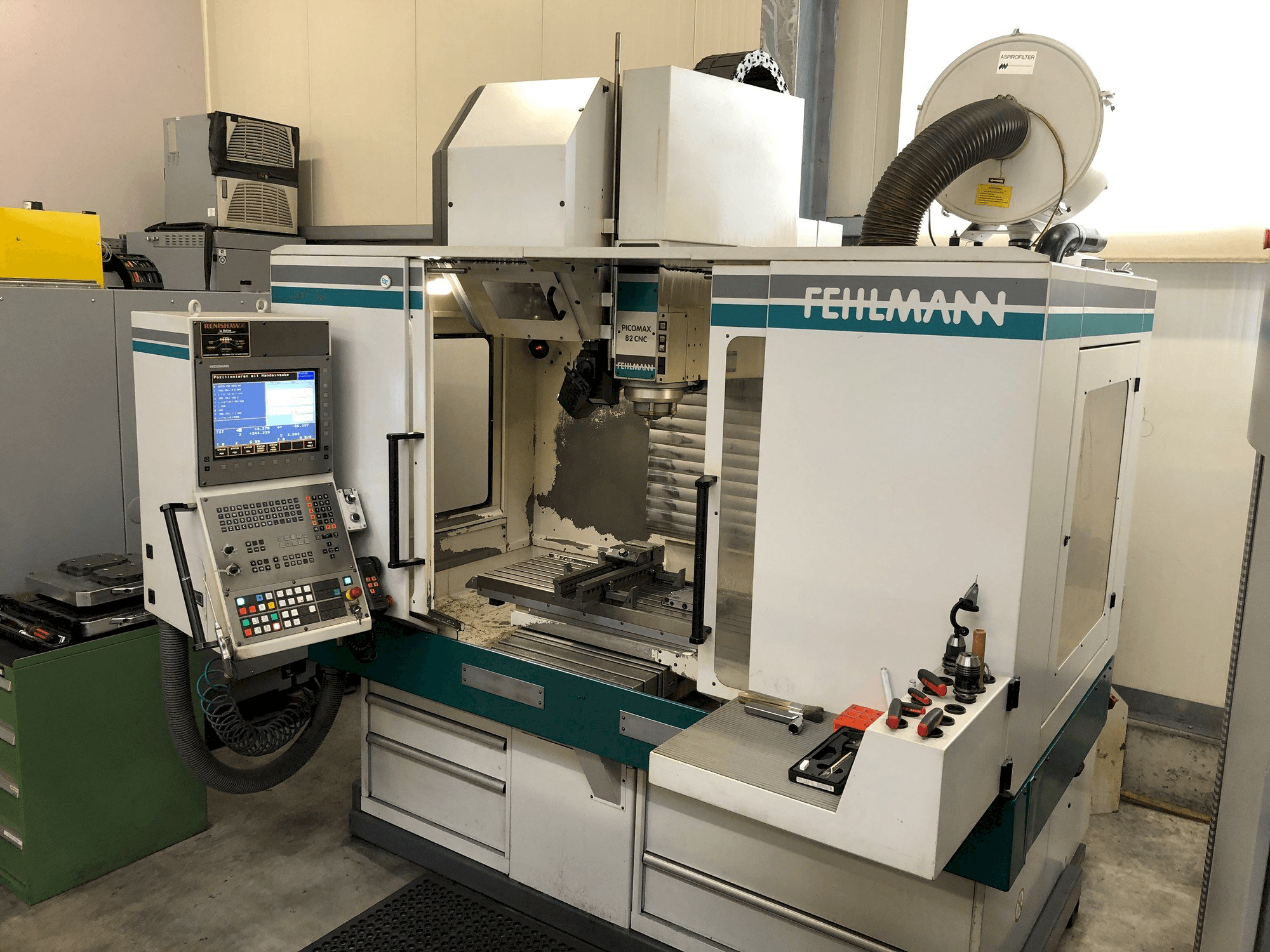

Front view of FEHLMANN PICOMAX 82 CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FEHLMANN PICOMAX 82 CNC

Photo Gallery

FEHLMANN - PICOMAX 82 CNCDE-MIL-FEH-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FEHLMANN PICOMAX 82 CNC

This FEHLMANN PICOMAX 82 CNC Vertical Machining Center was built in the year 1997 in Switzerland. It has a record of 41785 hours, of which approximately 19005 are spindle hours. This 3 axis machine is equipped with a HEIDENHAIN TNC 426 control unit. It works with a spindle speed range 50 - 16000 rpm.

Overview

brand: FEHLMANN
year: 1997
MODEL: PICOMAX 82 CNC
production hours: 41785
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 82 CNC

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Dimensions

Machine Depth: 2800 mm
Machine Height: 2750 mm
Machine Weight: 4500 kg
Table Length: 1230 mm
Table Load: 250 kg
Table Width: 12 mm

Movement

Number of Axes: 3
X-axis Travel: 685 mm
Y-axis Travel: 315 mm
Z-axis Travel: 540 mm

Technical Specification

Max. Tool Weight: 3 kg
Spindle Power: 11 kW
Spindle Speed: 16000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Speed: x- and y-axis 1 - 12'000 mm/min - z-axis 1 -15000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
