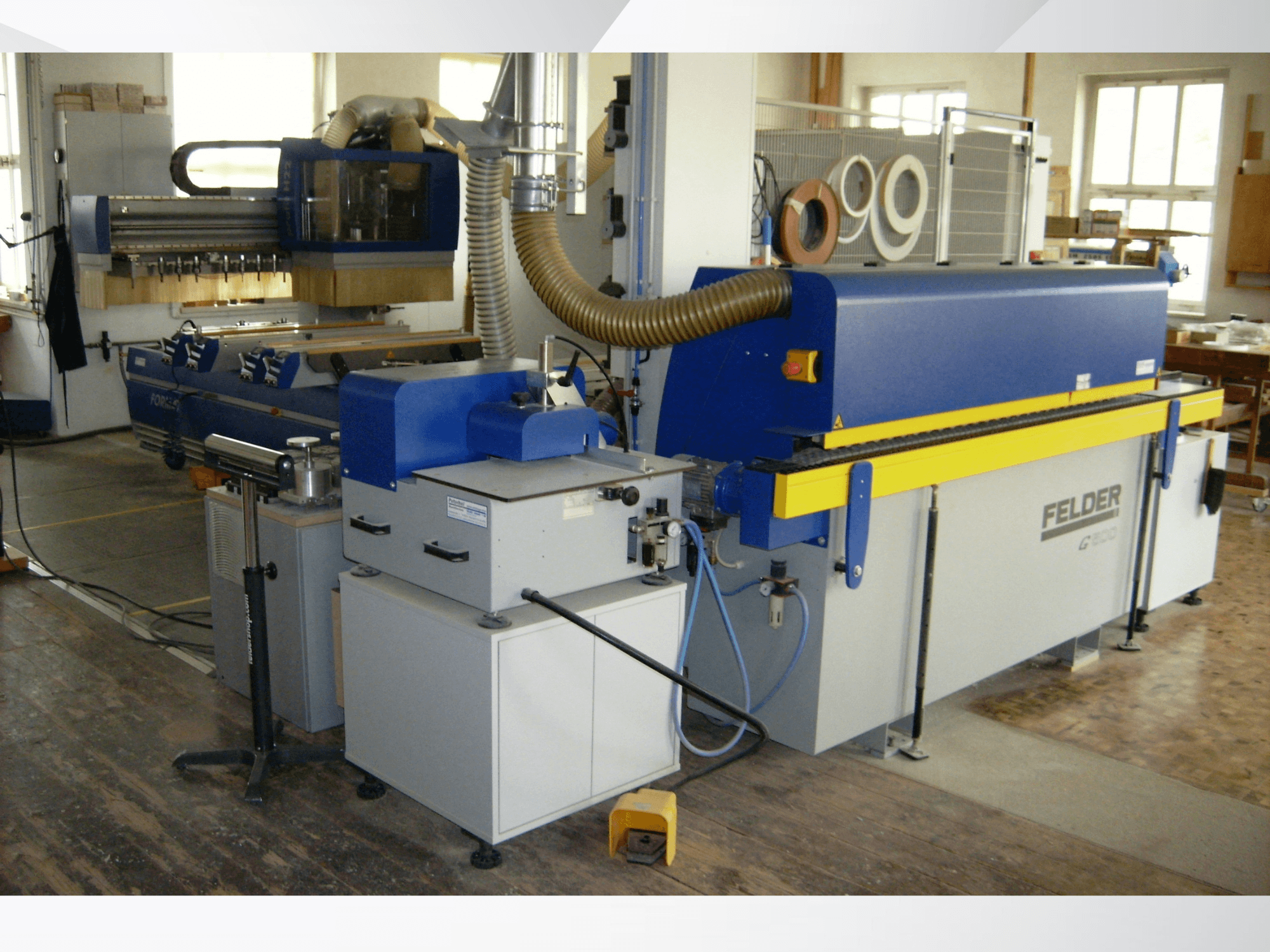

FELDER G500 edgebander in a workshop, side view showing the blue and yellow structure with controls and ducting.
FELDER G500 edgebander in a workshop, side view showing the blue and yellow structure with controls and ducting.

FELDER - G500DE-EDG-FEL-2008-00001

9,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Edgebander manufactured in 2008. This FELDER G500 features an edge thickness capability of 0.4–5.0 mm, with an optional 8 mm. It accommodates workpiece thicknesses from 8 to 60 mm and offers a feed speed of 11 m/min. The machine includes automatic edge feeding, a Teflon-coated glue roller, and multiple finishing positions. If you are looking to get high-quality edging capabilities, consider the FELDER G500 edgebander we have for sale. Contact us for further details.

Overview

  • brand: FELDER
  • year: 2008
  • MODEL: G500
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander
  • Available from: 01/10/2026

Technical Information - FELDER G500

Dimensions

  • Machine Height: 1550 mm
  • Machine Length: 3200 mm
  • Machine Weight: 750 kg
  • Machine Width: 1100 mm

Technical Specification

  • Feed Speed: 11 m/min
  • Workpiece Thickness: 60 mm

Additional Information

Machine

  • FELDER G 500 Edgebanding Machine

  • Voltage: 400 V

  • Frequency: 50 Hz

  • Phase: 3N

  • Current: 14 A

  • Power: 5.5 kW

  • Edge Thickness: 0.4–5.0 mm (optional 8 mm)

  • Workpiece Thickness: 8–60 mm

  • Minimum Workpiece Width: 70 mm

  • Minimum Workpiece Length: 140 mm

  • Automatic Edge Feeding

  • Strip Magazine

  • Coil Diameter: Ø800 mm

  • Suitable Edge Materials: PVC, ABS, Solid Wood Veneer

  • Glue Pot Capacity: 2 kg

  • Glue System: EVA Hot-Melt Granulate

  • Teflon-Coated Glue Pot

  • Glue Pot Heating Time: Approx. 12 min

  • Automatic Glue Temperature Reduction

  • Pressure Unit with 1 Straight Pressure Roller and 2 Conical Pressure Rollers

  • End Trimming Unit

  • Flush & Radius Trimming Unit

  • Free Finishing Positions: 3

  • Chain Conveyor Feed System

  • Feed Speed: 9 m/min

  • Extraction Connection: Ø120 mm

  • Machine Length: 3,200 mm

  • Machine Weight: 750 kg

Additional Equipment

  • Scraper Unit (mechanically adjustable for R = 2 mm)

  • Buffing Unit

  • 2 Motors

  • 1,400 rpm

  • 900 W

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
