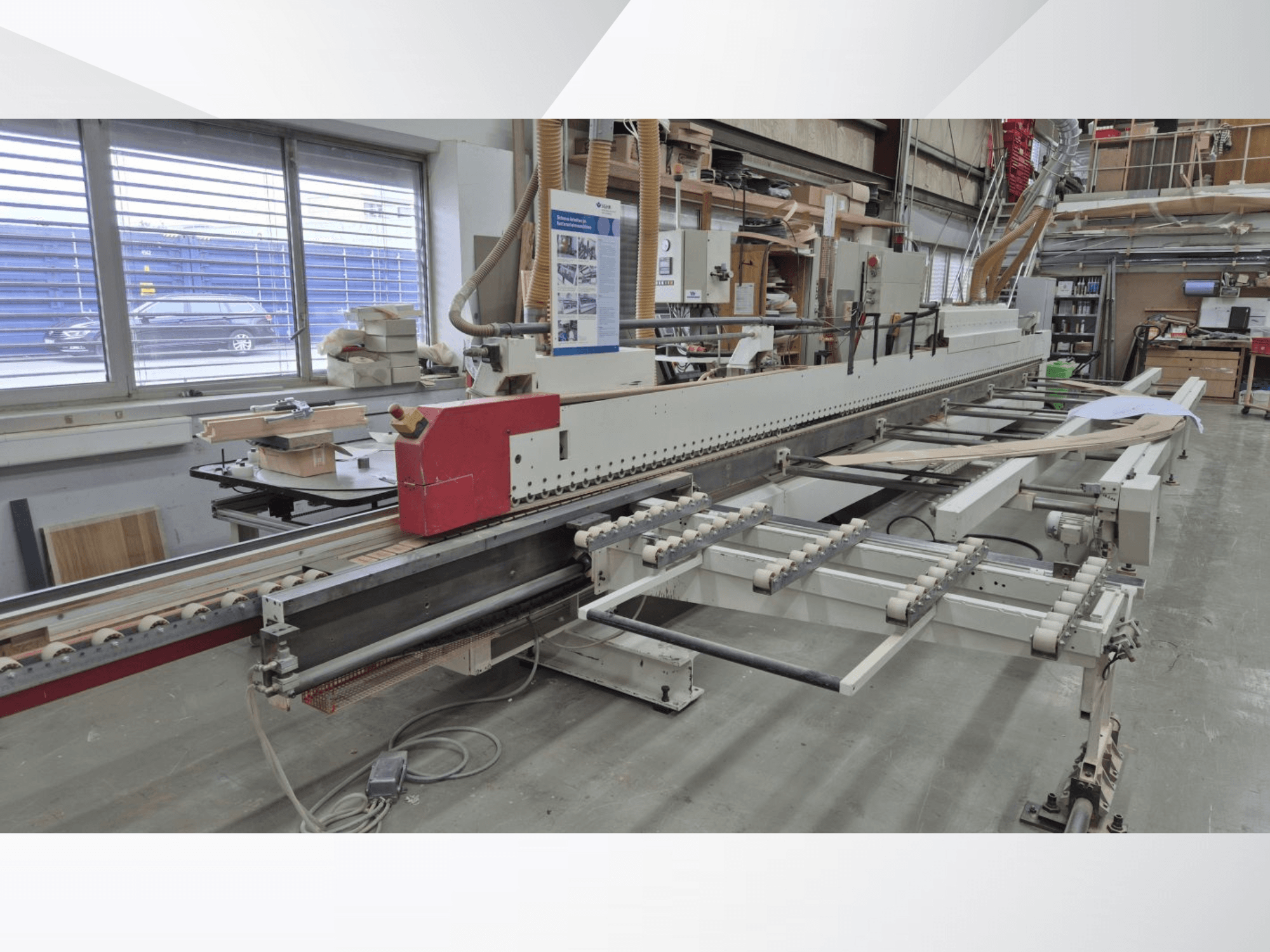

IMA - AVM/K/I/G80/822/S3R3L20DE-EDG-IMA-2003-00001

Spindle motor power:

1 pre-milling unit with 2 motors, each 3 kW

1 milling unit with 2 motors, 1 kW

1 milling unit with 2 motors, 660 W

Spindle speed range: 12.000 rpm

Heating capacity: 5,0 kW

Used single-sided rebate and edge-banding machine

Year of manufacture: 2003

For milling, edge banding and postproduction for a rebate - only on formated / pre-rabbet doors and unrebate doors

Left machine (fix stop on the left side)

Total processing in 3 throughfeeds:

Vertical edge: approx. 70 mm

Rebate glueing: approx. 60 mm

Heavy machine base as carrier for units

Drive for feed speed of approx. 5-25 m/min., mechanical stepless adjustable

Transport chain with plastic plates, approx. 80 mm wide, with automatic central lubrication

Manually height-adjustable top pressure with v-belt 80 mm wide

Infeed table

1 horizontal manually adjustable unheated infeed fence

1 pre-milling unit controllable, not swivable, not tracing

Glueing unit for optional use of straight edges or softforming, by change of glue application device

Edge material:

Strips: up to 1,3 mm

Coil material: 0,4-3 mm

Solid wood strips: 6 mm

Strip length max.: 2550 mm

Strip height: 14-80 mm (depending on glue application)

Manual side adjustment for pneumatic moveable glue application

Manual height adjustment from -15 mm up to +10 mm

1 glue application 0,8 L, max. edge height 70 mm, straight edge with pneumatic quick lock, Chem-Coat, electronic temperature control

1 hot melt glue application 0,8 L with quick-lock, edge height max. 80 mm, soft edge, Chem-Coat, with temperature control and control unit for strips

1 automatic Quickmelt hot melt glue application

1 2-fold magazine for edge material up to 3,0 mm thickness, manually mountable on the single coil magazine

1 rebate shape pressure zone for pressing of edge material to a rebate with:

an activation unit 15 kW for reactivation of the edge material for rebate-shaping

a pneumatic controlled shaping tool for the bottom fold edge

a pneumatic controlled shaping tool for the complete rebate

additional pressure rollers for the edge areas with rebate

an electropneumatic side-moving device for the complete pressure zone

1 horizontal adjustment with mechanical digital readout

1 trimming unit for 2 motors mounted on top pressure for trimming of the front and rear edge/strip projection for trimming flush or with chamfer

1 milling unit for 2 motors with height tracing, side tracing, for flush milling from bottom and top, 30° swivable

1 milling unit for 2 motors with height tracing, side tracing, for fine milling from bottom and top, 30° swivable

Note: The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding
