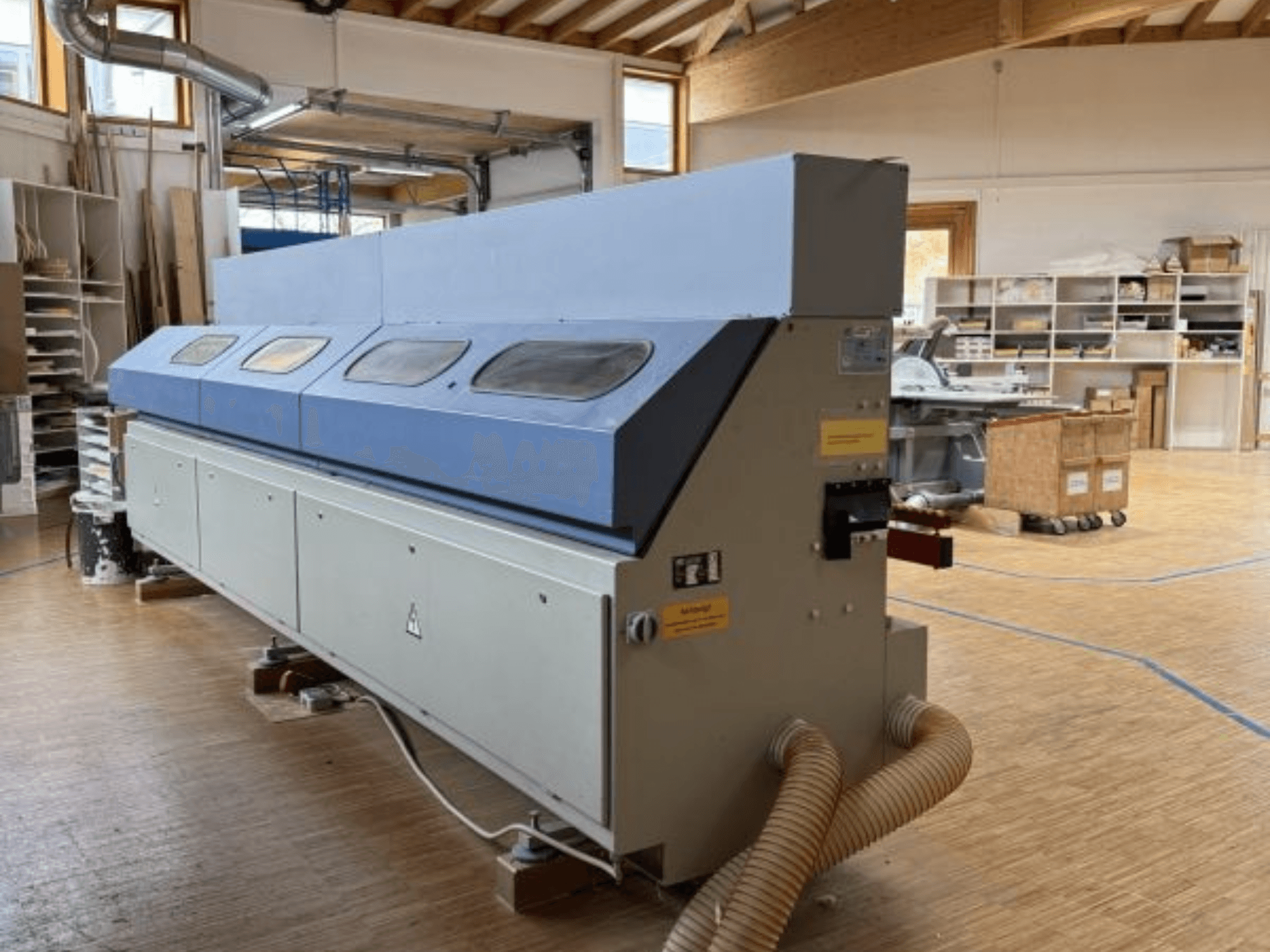

Edgebander manufactured in 2000. This OTT Pacific V6-F features an edge thickness capability of 0.2 - 6 mm and can handle workpiece thicknesses from 8 to 42 mm. It operates at a feed speed of 12 m/min and includes various processing units such as joining mills, a gluing unit, and a polishing unit. If you are looking to get high-quality edge banding capabilities, consider the OTT Pacific V6-F machine we have for sale. Contact us for further details.
Overview
- brand: OTT
- year: 2000
- MODEL: Pacific V6-F
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Technical Information - OTT Pacific V6-F
Dimensions
- Machine Weight: 2000 kg
Additional Information
Used single-sided edge banding machine
Brand: OTT
Type: Pacific V 6-F
Year of manufacture: 2000
Technical specifications:
Edge thickness: 0.2 - 6 mm
Workpiece thickness: 8 - 42 mm
Workpiece width: min. 70 mm
Workpiece length: min. 150 mm
Feed speed: 12 m/min.
Electrical connection: 3 x 400V, 50 Hz
Exhaust: 2 x Ø 120 mm at 20 m/sec.
Exhaust capacity: 30 m³/h
Equipment - Processing units:
Joining mills
2 x 1.5 kW, 12,000 rpm, 200 Hz
two application-controlled work spindles
Gluing unit
Rapid-heating tank with Melt-matic
automatic edge magazine with optical monitoring
for strip edges in fixed lengths
Release agent spray system
end trimming unit
2 x 0.2 kW, 12,000 rpm, 200 Hz
automatic swivel 0° / 3°
Flush milling unit 0° / 15° / 30° / 45°
2 x 0.43 kW, 12,000 rpm, 200 Hz
Radius milling unit R2 - R5
2 x 0.3 kW, 12,000 rpm, 200 Hz
2 quick-change stations for milling units
Corner rounding milling unit
2 x 0.3 kW, 12,000 rpm, 200 Hz
Scraper
2 x carbide scrapers
Polishing unit
2 x 0.2 kW, 2,800 rpm, 50 Hz
Weight: 2,000 kg
Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
