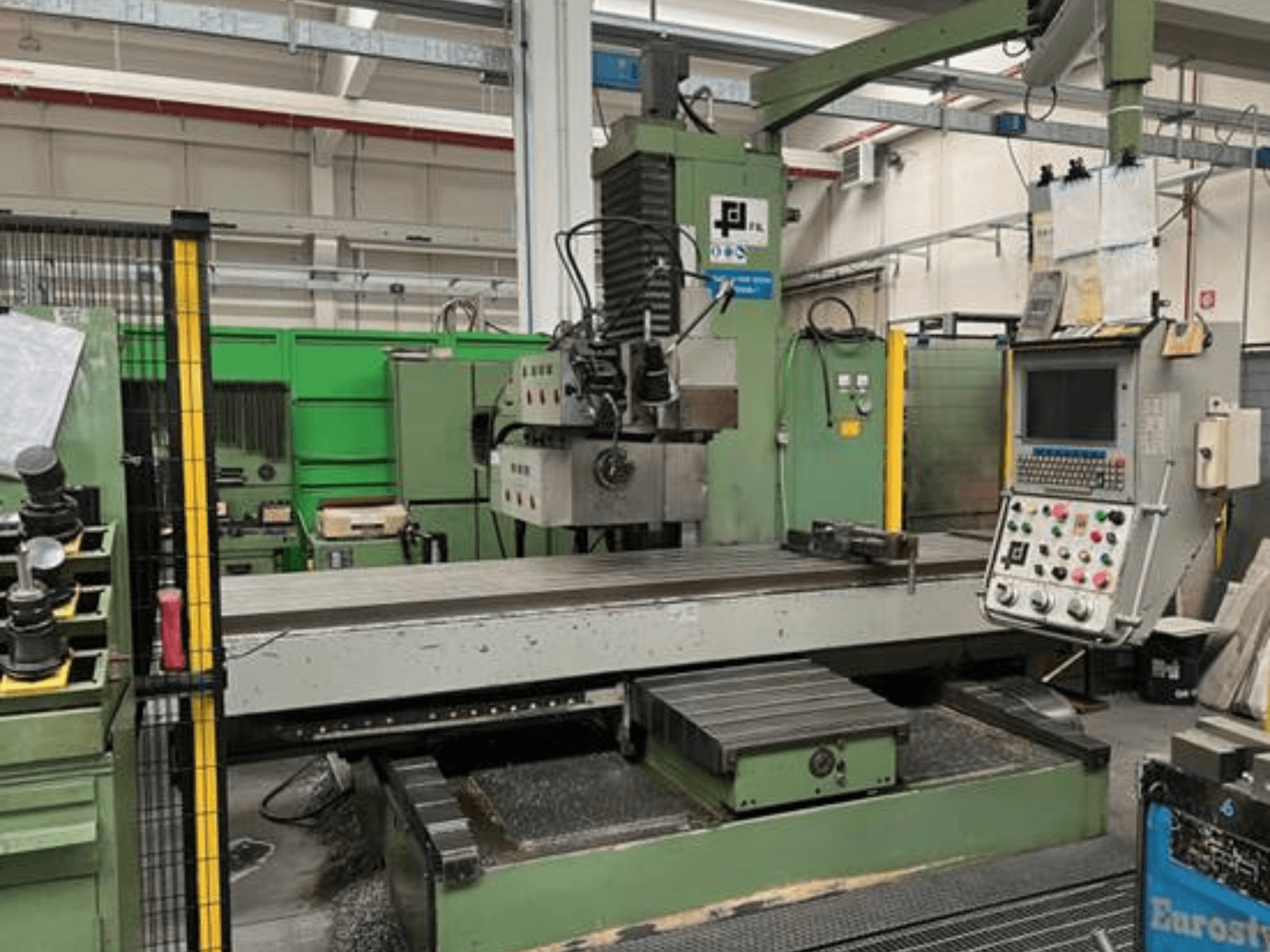

This 3s FIL FA 300 Bed Type Milling Machine was manufactured in 1990. It features a table size of 3500 × 800 mm and can support a maximum load of 4000 kg. The machine offers impressive axis travels, with the X axis reaching 3000 mm and the Y axis 1500 mm. If you are looking to get high-quality milling capabilities, consider the FIL FA 300 machine we have for sale. Contact us for further details.
Overview
- brand: FIL
- year: 1990
- MODEL: FA 300
- application type: Milling
- Location: Italy
- machine type: Bed Type Milling Machine
Technical Information - FIL FA 300
Dimensions
- Machine Weight: 13500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 850 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 2000 RPM
- Taper Size: ISO 50
Additional Information
Table: size 3500 × 800 mm; maximum load 4000 kg
Feeds: Work 1–1000 mm/min; Rapid 8000 mm/min
Horizontal spindle: ISO 50 taper; 50–2000 rpm; 15 kW motor
Vertical head (main saddle): ISO 50 taper; 50–2000 rpm; 11 kW motor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
