FIMAL - concept 350SI-SAW-FIM-2020-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used FIMAL concept 350 - Saw For Sale | gindumac.com

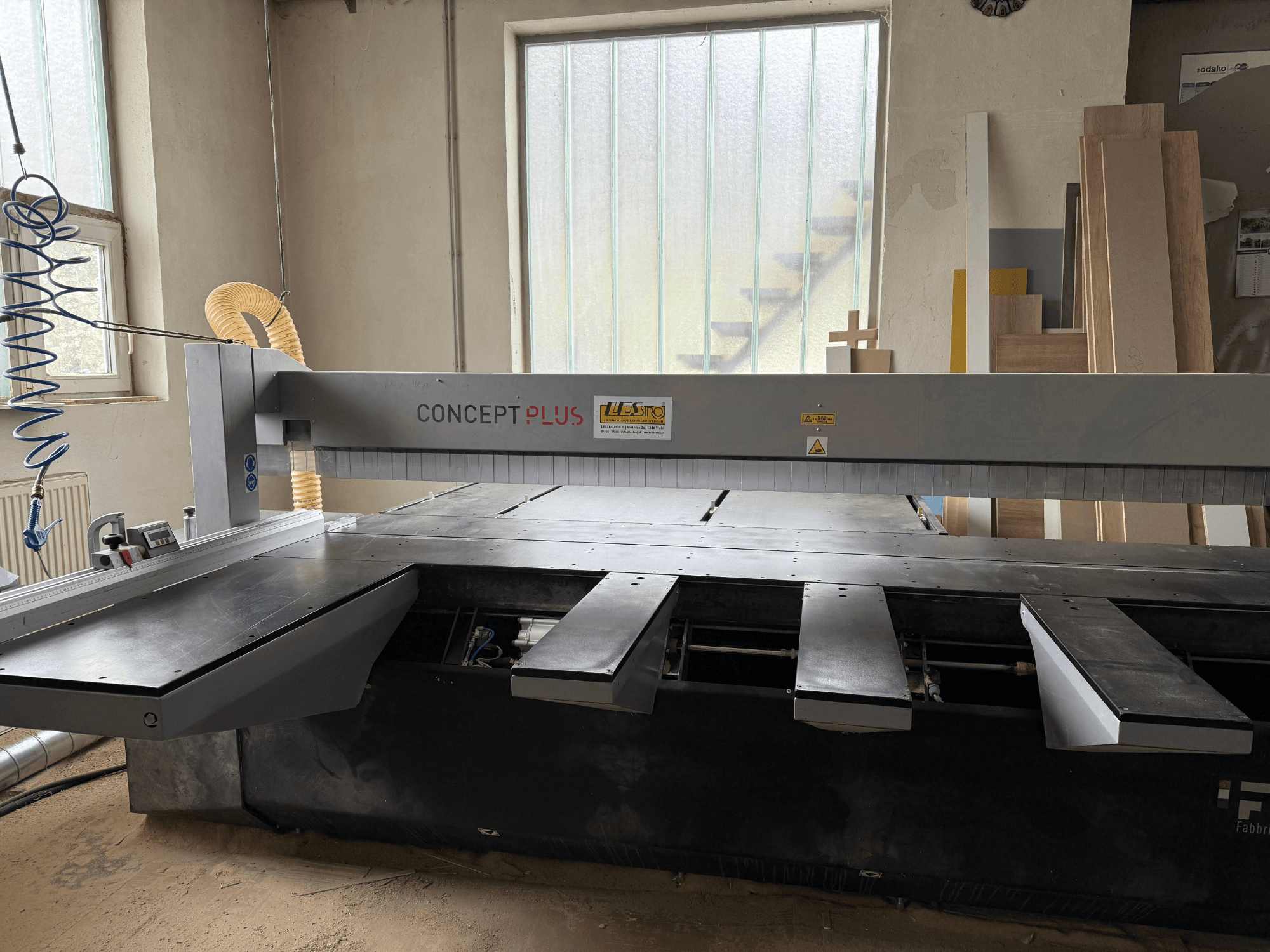

Panel saw manufactured in 2020. This FIMAL concept 350 features a squaring length of 3200 mm and a blade diameter range of 300 to 350 mm. It operates at a blade rotation speed of 4000 rpm and has a main motor power of 7.5 hp. If you are looking to get high-quality cutting capabilities, consider the FIMAL concept 350 machine we have for sale. Contact us for further details.
Overview
- brand: FIMAL
- year: 2020
- MODEL: concept 350
- application type: Sawing (Wood)
- Location: Slovenia
- machine type: Panel Saw
Technical Information - FIMAL concept 350
Technical Specification
- Saw Blade Rotation: 4000 rpm
Additional Information
Model: Concept 350 – 3200
Squaring length: 3200 mm
Blade diameter: 300–350 mm
Blade inner hole: 30 mm
Blade projection (90°): 100 mm (75 mm)
Blade projection (45°): 67 mm (45 mm)
Blade group speed (inverter): 40 m/min
Main motor power: 7.5 hp (5.5 kW)
Extraction outlet: 120 / 100 mm
Extraction air volume: 1800 m³/h
Extraction air speed: 25 m/s
Operating pressure: 7 bar
Air consumption: 85 l/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
