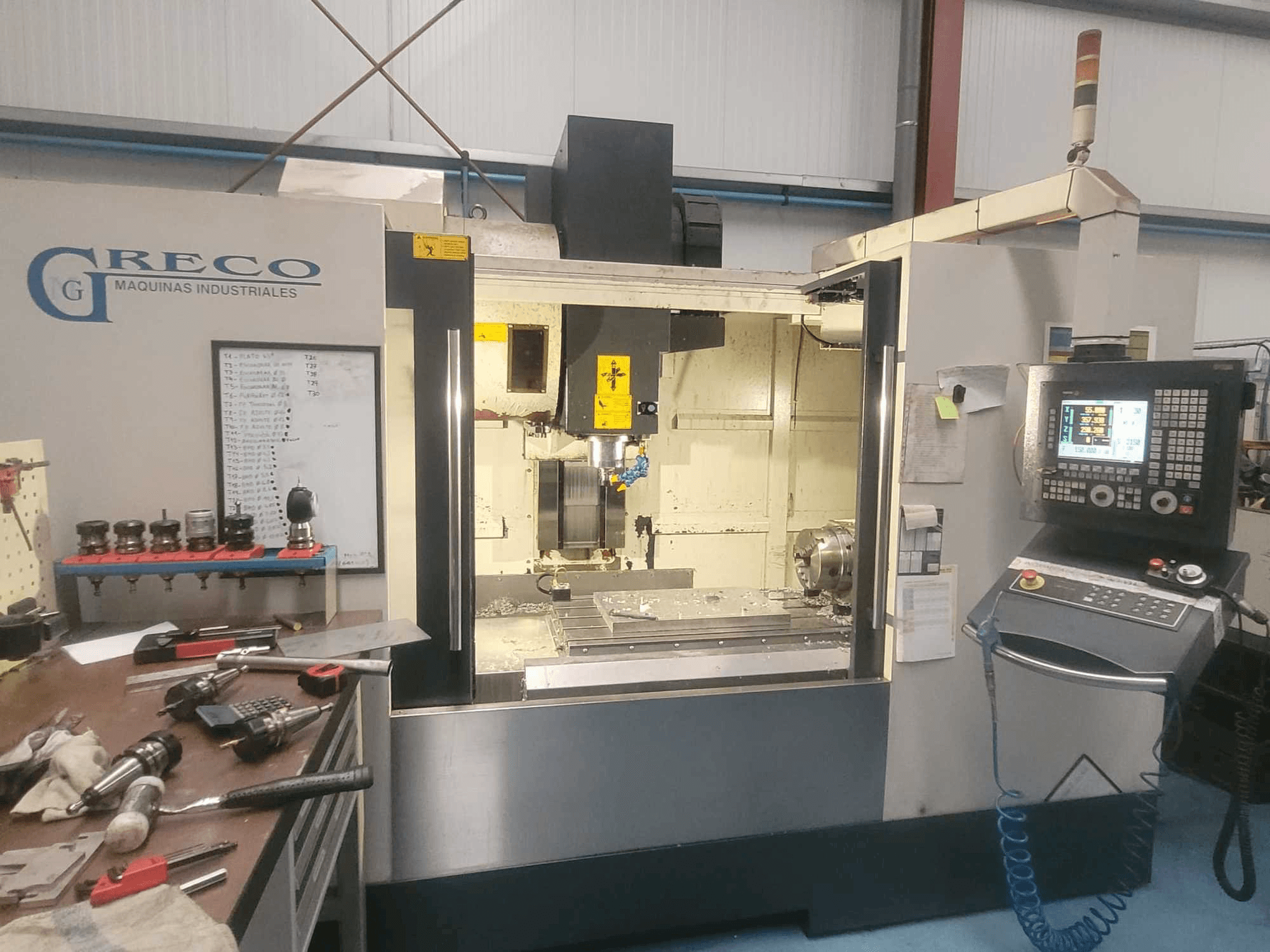

Front view of Finitech SMV-1270-3B  machine

Finetech SMV-1270-3B

Finetech - SMV-1270-3B

2013

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Finetech SMV-1270-3B Vertical Machining Center was made in the year 2013 in Taiwan and has few working hours. It is equipped with a Fargo 8055 control unit and has 4 axis. The machine has a spindle speed of 12000 rpm and is in good condition.

Overview

  • brand: Finetech
  • year: 2013
  • MODEL: SMV-1270-3B
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Fagor
  • GINDUMAC ID: ES-MIL-FIN-2013-00001

Technical Information

General Data

  • Measurements width: 3000 mm
  • Measurements depth: 2200 mm
  • Measurements height: 2500 mm

Control Unit

  • Brand: Fagor
  • Model: 8055

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1200 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 650 mm

Workpiece

  • Workpiece weight: 1000 kg

Table

  • Outer length: 1300 mm
  • Outer width: 600 mm

Tools

  • Slots in storage: 30
  • Max weight: 10 kg
  • Max tool diameter: 100 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT-40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Rigid threading
      • - Air through head & external cooling jet with nozzles
      • - Automatic lubrication system
      • - Head oil cooling system
      • - Water gun
      • - Rs 232 output
    • Qualitative Machine Benefits:
      • - Little working hours
      • - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
