Finn-Power - E5xPL-PUN-FIN-2010-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- Finn-Power E5x Punching Machine

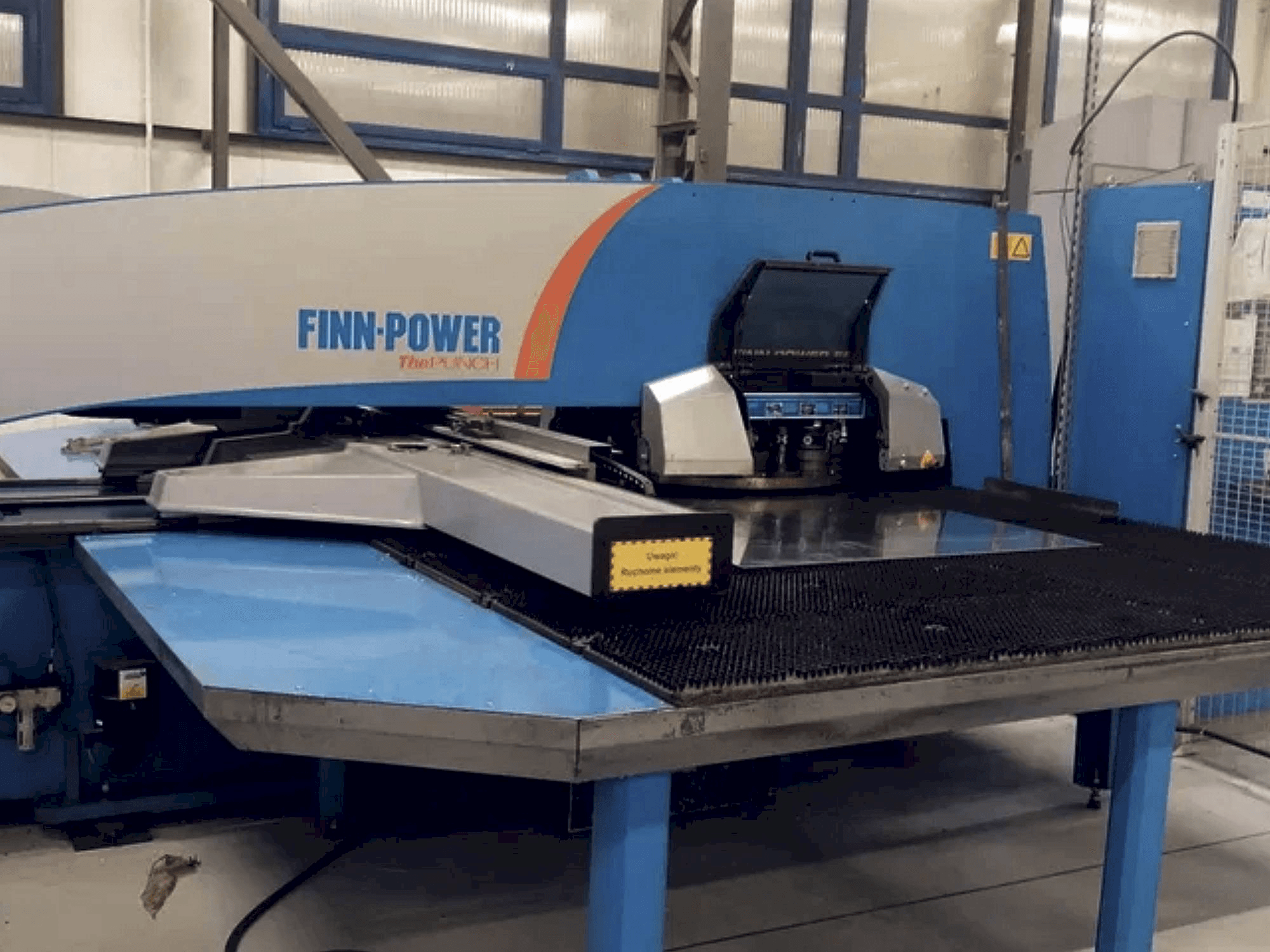

This Finn-Power E5x Servo-electric Punching Machine was made in 2010. It is operated with a control unit of the same brand. It has been on for 18069 hours. This machine can work with a punching force of 230 kN.
Overview
- brand: Finn-Power
- year: 2010
- MODEL: E5x
- production hours: 18069
- application type: Punching
- Location: Poland
- machine type: CNC Punch Press
Technical Information - Finn-Power E5x
Dimensions
- Machine Depth: 7640 mm
- Machine Height: 2500 mm
- Machine Weight: 10500 kg
Technical Specification
- Punching Force: 230 Kn
Additional Information
Additional equipment
- Third (3rd) clamp
- 5 indexing tools (size: 2xC, 2xB, 1xD)
- Punching scrap removal directly to the box next to the machine
- Foot switch for sheet clamp closing
- Sheet distortion sensors
- Automatic individual clamp move
- Automatic closing clamps clamping
- 1 station for Multitool 24-8
Machine Benefits
Qualitative Machine Benefits
- Ram speed: programmable
- Punch diameter max. : 89 mm
- Turret rotation 24 r/min
- Tools type: thick turret
- Tool change time: 1-3 sec
Technical Machine Benefits
- Sheet size x x y, max. : 2530 mm x 1270 mm ,sheet size x x y, min. : 300 mm x 100 mm ,sheet weight max. : 200 kg
- X traverse length: 2584 mm, x traverse axis speed, max. : 90 m/min
- Y traverse, length: 1317 mm, y traverse axis speed, max. : 60 m/min
- Sheet positioning speed 108 m/min
- Marking speed: 1800 1/min
- Nibbling speed (1 mm): 700 1/min
- Tool rotation 133 rpm
- Punching speed 700 hits/min
- Punch stroke: servo electric
- Stroke depth: numerically adjustable, stroke length: programmable
Extra Information
Machine in good condition.
Machine History
Material thickness
8 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
