FRIMO - NFPP Thermoforming PlantDE-OTH-FRI-2015-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used FRIMO NFPP Thermoforming Plant | Plastic Processor

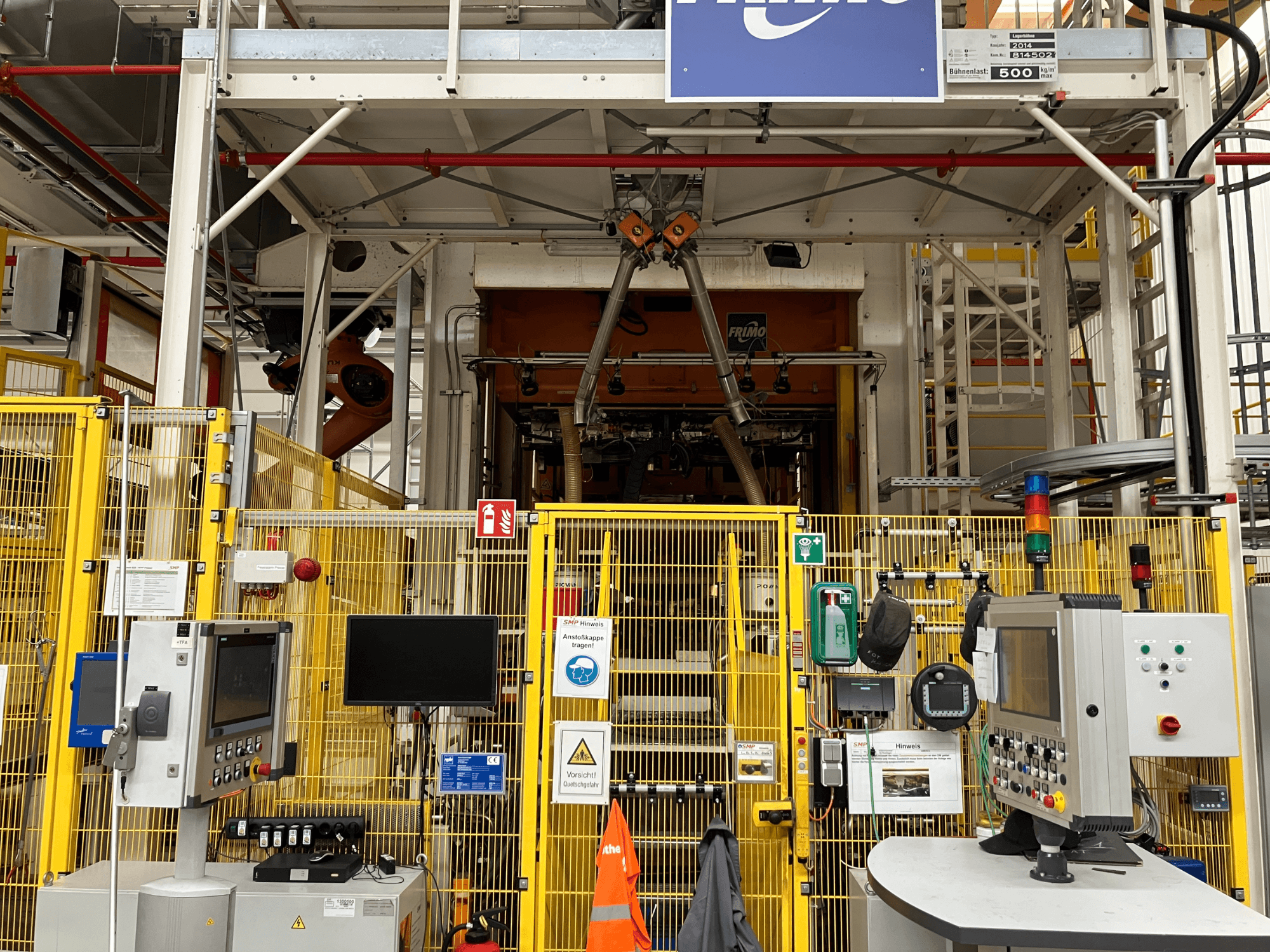

This FRIMO NFPP Thermoforming Plant was manufactured in 2015. It features a powerful HOP400 press with a force of 4000 kN and a press area of 2500 x 1800 mm. The plant dimensions are 18,000 mm in length, 13,550 mm in width, and 7,510 mm in height. If you are looking to get high-quality thermoforming capabilities, consider the FRIMO NFPP Thermoforming Plant we have for sale. Contact us for further details.
Overview
- brand: FRIMO
- year: 2015
- MODEL: NFPP Thermoforming Plant
- production hours: 44309
- application type: Other Plastic Processing Machinery
- Location: Germany
- machine type: Plastic Processing Machine
- control unit brand:
Technical Information - FRIMO NFPP Thermoforming Plant
Dimensions
- Machine Height: 7510 mm
- Machine Length: 18000 mm
- Machine Width: 13550 mm
Technical Specification
- Pressing Force: 4000 Kn
Additional Information
Application: Door panel FAT/FOT (Left Hand / Right Hand)
Connected Load: 692 kW
Rated Current: 1000 A
Voltage: 400 V AC / 24 V DC
Frequency: 50 Hz
Operating Pressure (Pneumatic): 5–7 bar
Air Consumption: < 300 l per cycle
Pneumatic Connection: G 1/2
Pneumatic Air Quality: Dried / Un-oiled
Ambient Temperature Range: 15–40 °C
Relative Humidity: 20–70% (non-condensing)
Noise Level: < 82 dB
Main components included:
HOP400 Press: 4000 kN press force; 2500 x 1800 mm press area; approx. 79,000 kg
HOP300 Calibration Press: 3000 kN press force; 2100 x 1300 mm press area; approx. 24,000 kg
Feeding Table: 2400 x 1800 x 1100 mm
Hydraulic units for form and calibration presses
Tool change systems (Left and Right)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
