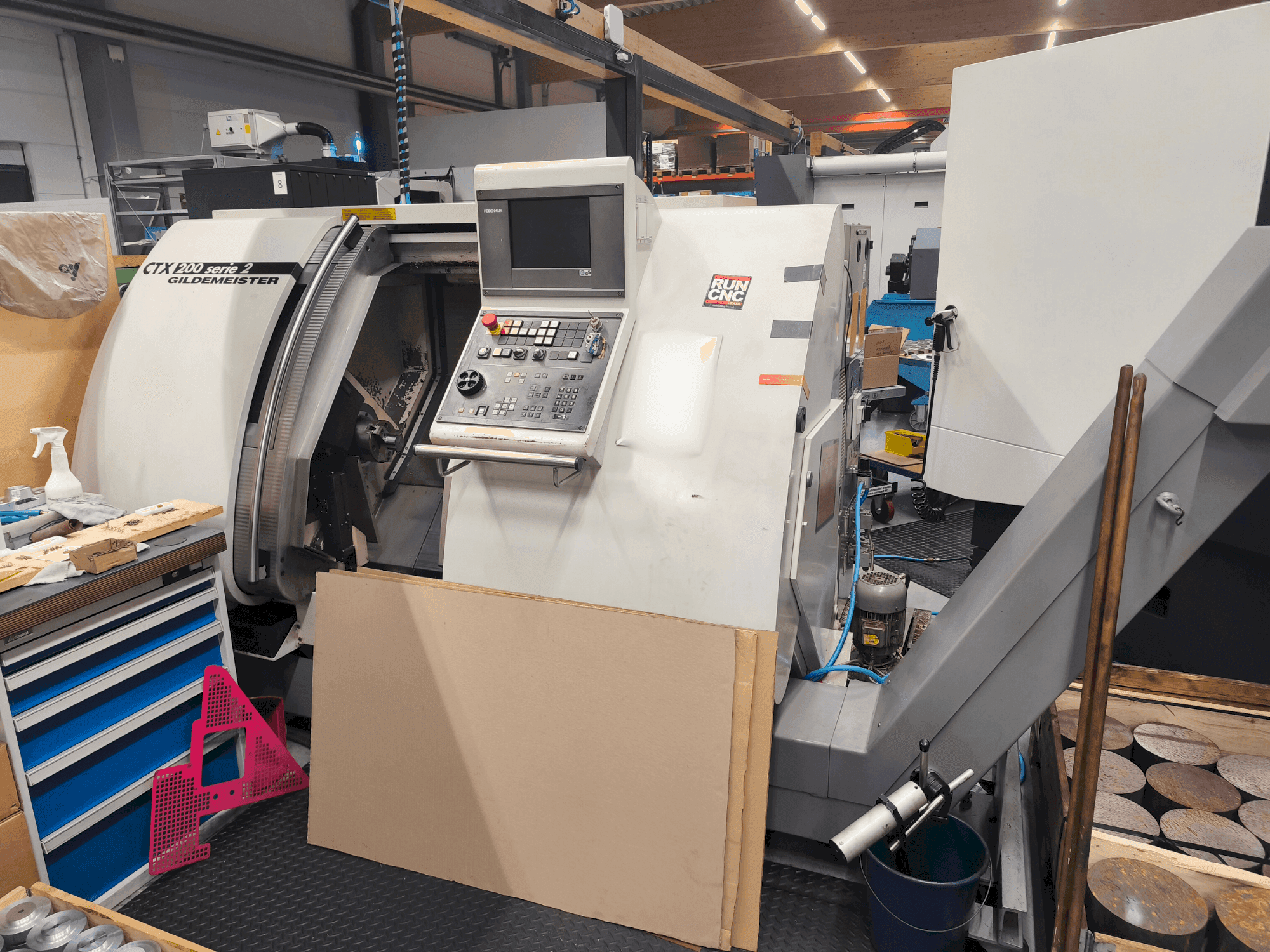

Front view of Gildemeister CTX 200 Serie 2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 200 Serie 2

Gildemeister - CTX 200 Serie 2DE-TUR-GIL-2001-00005

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTX 200 Serie 2 | Multi-Spindle Lathe

This Gildemeister CTX 200 Serie 2 was manufactured in 2001. A horizontal turning machine, it's ideal for those looking to enhance their machining capabilities. Contact us for more information.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 200 Serie 2
production hours: 28890
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Gildemeister CTX 200 Serie 2

General Data

Measurements width: 1651 MM
Measurements depth: 2800 MM
Measurements height: 1777 MM
Machine weight: 2900 KG

Main drive

Spindle speed range: 25-5000 1/MIN

Movement

X-AXIS Feed Force: 2 kN
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Feed Force: 3 kN
Z-AXIS Rapid traverse: 30 m/min

Media

Chip conveyor: Yes

Additional Equipment

- Coolant pump
- Tailstock
- Includes 3 jaw chucks and various holders for turning tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Circumferential Ø over bed guide cover: 440 mm
- - Circumferential Ø over face guide cover: 210 mm
- - Face path: 160 mm
- - Longitudinal travel: 350 mm
- - Spindle head Ø: 120 mm
- - Spindle head Ø in front bearing: 85 mm
- - Spindle bore: 56 mm
- - Chuck Ø: 140 mm
- - Drive power 100% ed: 9 kw
- - Max. Torque: 84 nm
Qualitative Machine Benefits:
- - Ball screw x/z: 25x10 mm
- - Universal disc-type turret (automatic indexing with directional logic and fixed tool pull)
- - Tool holders: din 69880 20mm
- - Max. Driven tools: 12
- - Max. Clamping diameter of the driven tools: 13 mm
- - Tailstock diameter in the front area: 80 mm
- - Tailstock travel: 350 mm
- - Tailstock reception: mk 3
- - Tailstock force min. /max. : 3 kn
- - Has no driven tools

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
