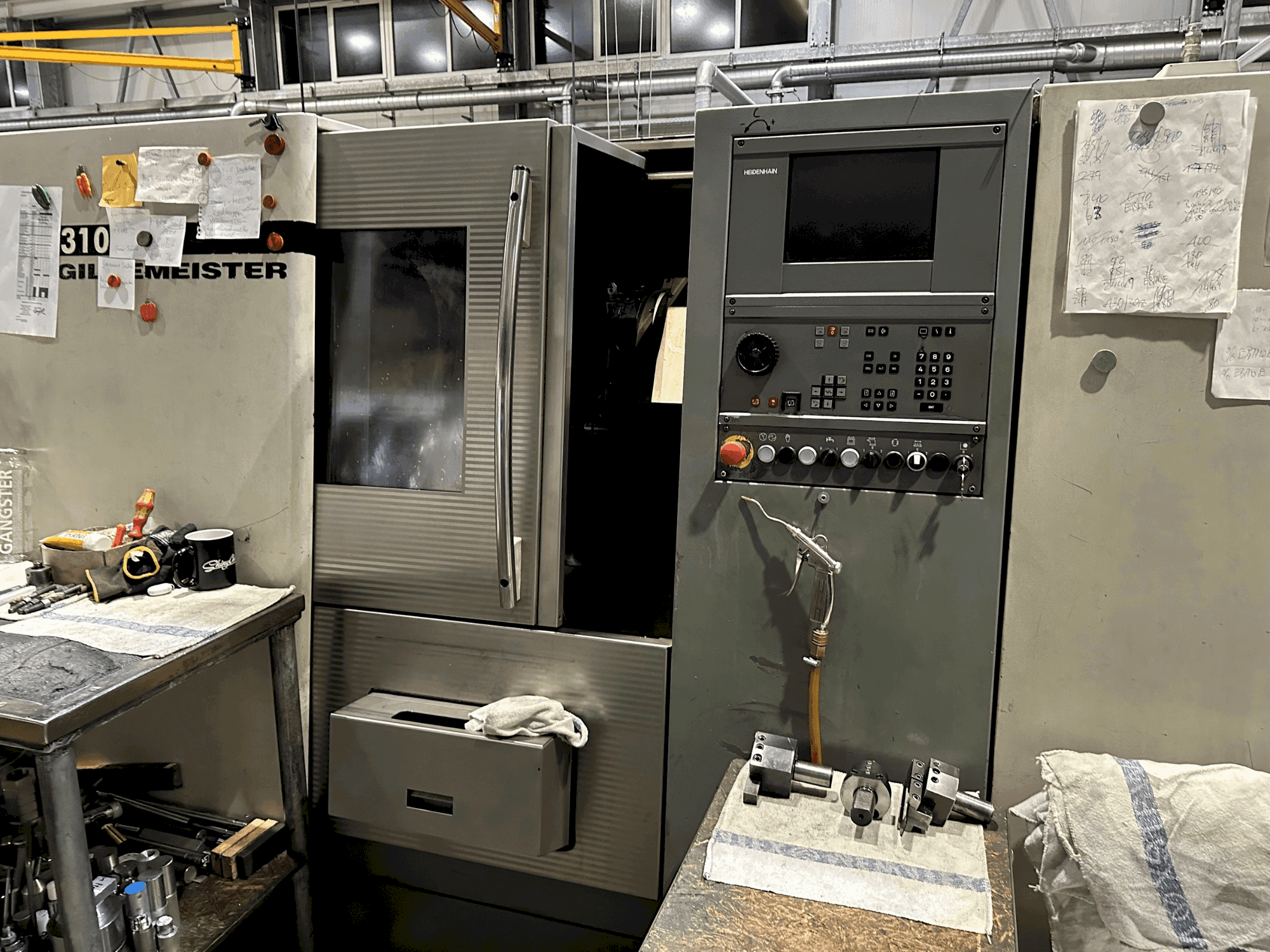

Front view of Gildemeister CTX 310  machine

Gildemeister - CTX 310DE-TUR-GIL-2003-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis GILDEMEISTER CTX 310 lathe was manufactured in 2003. It features a Heidenhain iT numerical control with DIN PLUS, TURN PLUS programming software, and a coolant lubricant pump. The lathe has a spindle bore of 68.5 mm and offers a speed range of up to 5000 rpm. It also includes 12 tool stations with a maximum torque of 86 Nm. The machine dimensions, including the chip conveyor, are 4173 x 1594 x 1730 mm. Reach out for further details regarding this horizontal lathe.

Overview

  • brand: Gildemeister
  • year: 2003
  • MODEL: CTX 310
  • production hours: 31820
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Heidenhain

Technical Information - Gildemeister CTX 310

General Data

  • Measurements width: 1594 mm
  • Measurements depth: 4173 mm
  • Measurements height: 1730 mm
  • Machine weight: 3800 kg

Control Unit

  • Brand: Heidenhain
  • Model: iT

Main drive

  • Spindle speed range: 20-5000 1/MIN
  • Spindle bore: 68.5 mm
  • Number of axis: 3

Movement

  • X-AXIS Movement: 160 mm
  • X-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Movement: 450 mm
  • Z-AXIS Rapid traverse: 30 m/min

Workpiece

  • Workpiece drm over bed: 330 mm
  • Workpiece drm over support: 260 mm

Tools

  • Number of index: 12
  • Number of stations: 6

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Coolant lubricant pump type Grundfoss 12 bar
    • - Hollow clamping device diameter 52mm
    • - Chuck diameter: 170/210mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Workpiece diameter: 330 mm
        • - Number of driven tool stations: 6, max. Speed: 4200 min-1
        • - Advanced control unit (heidenhain it) with din plus turn plus programming software for precision and ease of use.
        • - Coolant lubricant pump type grundfoss 12 bar
        • - Tailstock stroke: 400 mm
        • - Hydraulics capacity: approx. 50l, pressure: 40 bar
      • Qualitative Machine Benefits:
        • - Robust build and high torque (86nm) ensure reliable machining and longevity.
        • - High precision and accuracy in machining with a structured tool carrier and c-axis capabilities.

      Extra information

      • - Quill holder: flat flange

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
