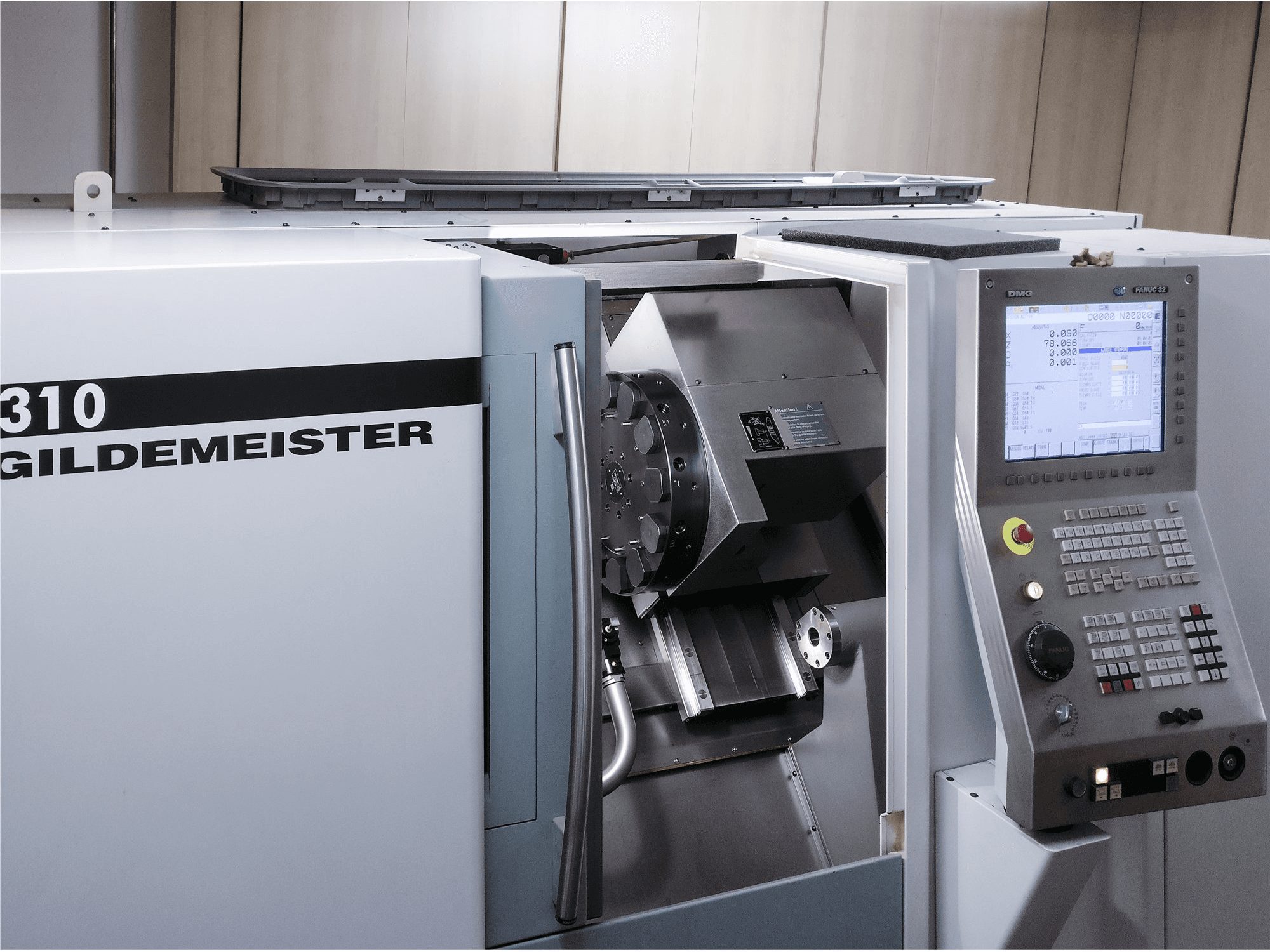

This Gildemeister CTX 310 Lathe was manufactured in 2007 in Italy and has a working record of only 545 production hours since then. This machine is operated through a FANUC 32i Control unit and has exclusively worked with aluminium, producing supplies for the furniture industry. Beside the perfect condition of the machine, which can be considered as new, it stands out due to its tiltable spindle and its automatic tool changer. Additional tools are included in the delivery.
Overview
- brand: Gildemeister
- year: 2007
- MODEL: CTX 310
- production hours: 545
- application type: Turning
- Location: Spain
- machine type: Lathe
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: ES-TUR-GIL-2007-00001
Technical Information
General Data
- Measurements width: 4000 mm
- Measurements depth: 1563 mm
- Measurements height: 1730 mm
- Machine weight: 3629 kg
Control Unit
- Brand: FANUC
- Model: 32i
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/min
- Spindle motor power: 12 kW
- Spindle bore: 73 mm
Movement
- X-AXIS Movement: 213 mm
- X-AXIS Working Feed: 24 mm/min
- X-AXIS Feed Force: 450 daN
- Z-AXIS Movement: 450 mm
- Z-AXIS Working Feed: 30 mm/min
- Z-AXIS Feed Force: 450 daN
Workpiece
- Workpiece drm over bed: 500 mm
- Workpiece drm over support: 375 mm
- Workpiece drm: 246 mm
- Workpiece z: 445 mm
- Workpiece weight: 110 kg
Turret
- Number of turrets: 1
- Number of tool slots: 12
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 24 kVA
- Lubrication tank: 175 L
- Oil tank: 1.8 L
- Internal cooling: Yes
Additional Equipment
- - Tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
