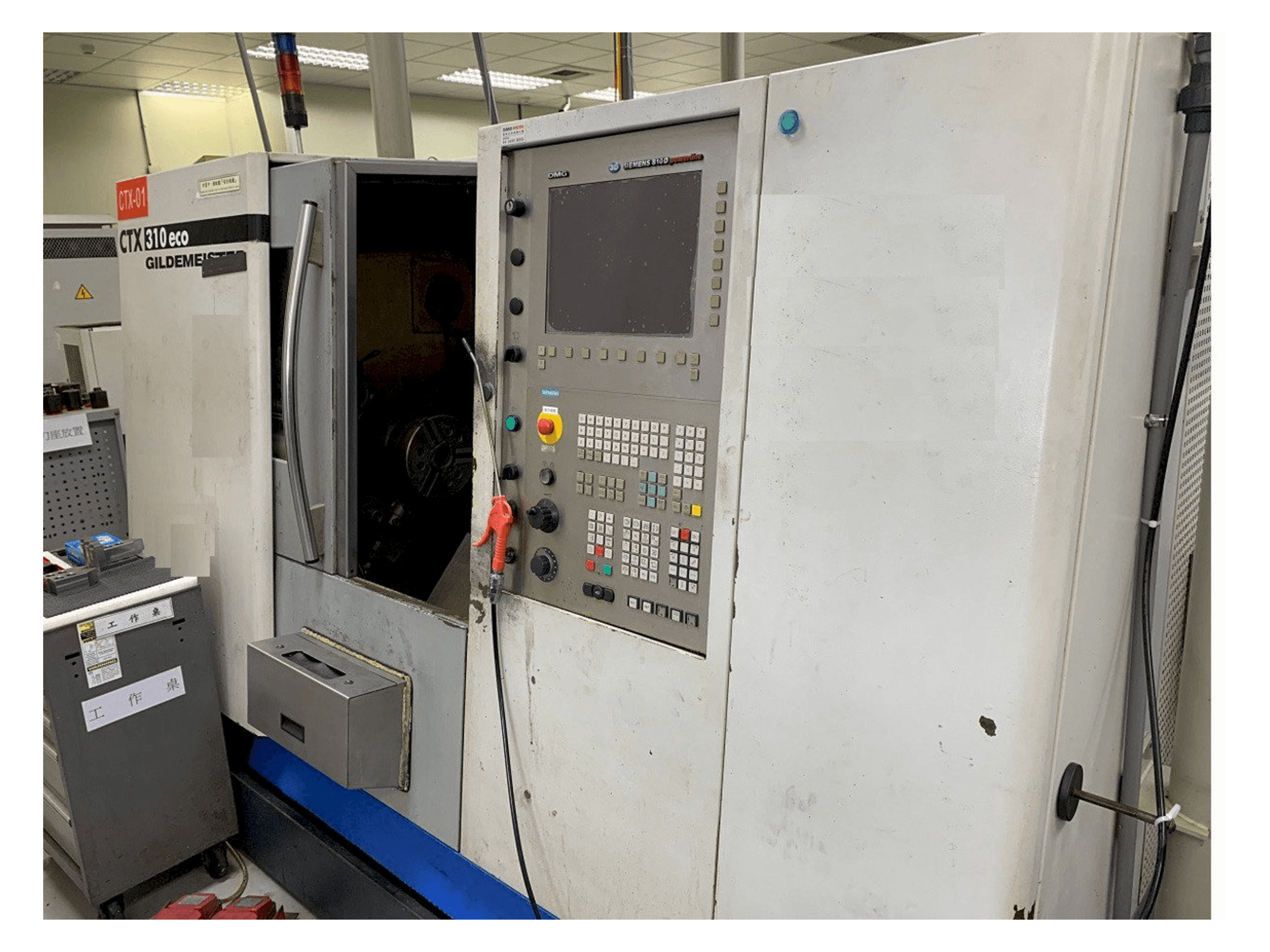

Front view of Gildemeister CTX 310V1 eco machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 310V1 eco

Photo Gallery

Gildemeister - CTX 310V1 ecoTW-TUR-GIL-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

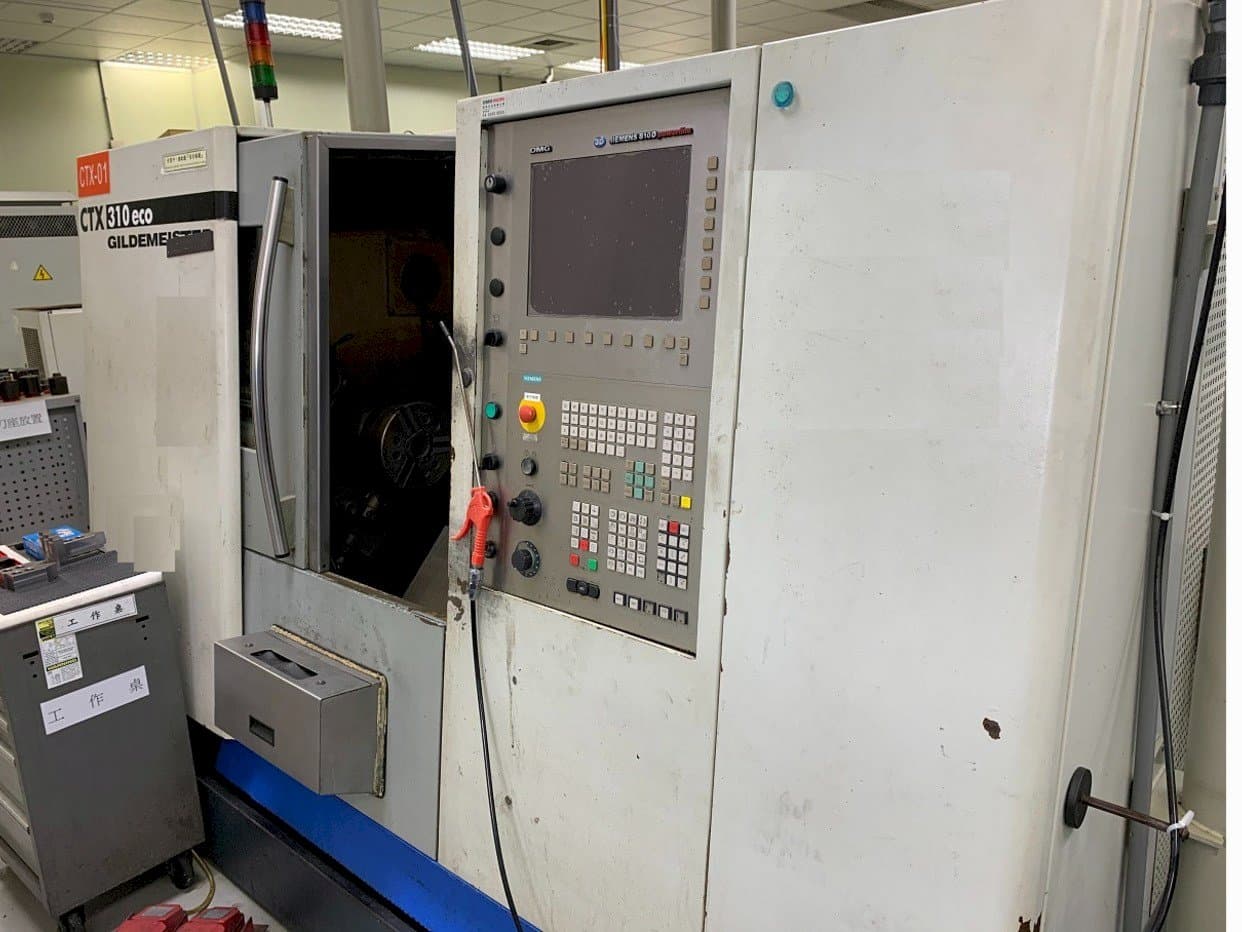

Gildemeister CTX 310V1 eco Lathe

This Gildemeister CTX 310V1 eco Lathe was made in China in the year 2007. It has 52174 production hours. It is operated through a Siemens 810D Powerline control unit. This machine can perform with a spindle speed up to 5000 rpm.

Overview

brand: Gildemeister
year: 2007
MODEL: CTX 310V1 eco
production hours: 52174
application type: Turning
Location: Taiwan
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Gildemeister CTX 310V1 eco

Control Unit

Control Brand: SIEMENS
Control Model: 810D Powerline

Dimensions

Machine Depth: 2200 mm
Machine Height: 1800 mm
Machine Weight: 3200 kg

Movement

X-axis Travel: 185 mm
Z-axis Travel: 455 mm

Technical Specification

Spindle Power: 10 kW
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Swing 330 mm
Max. Turning length 580 mm
Turning dia. Over face-slide 260 mm
Max. Turning dia. 205 mm
Max. Torque 115 / 86 nm
Spindle diameter in front bearing 100 mm
Usable bar diameter 52 mm
Chucking diameter max. 210 mm
Shank diameter 20 x 20 mm
Tailstock adjustment 400 mm, intake pressure max. 4. 000 n

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
