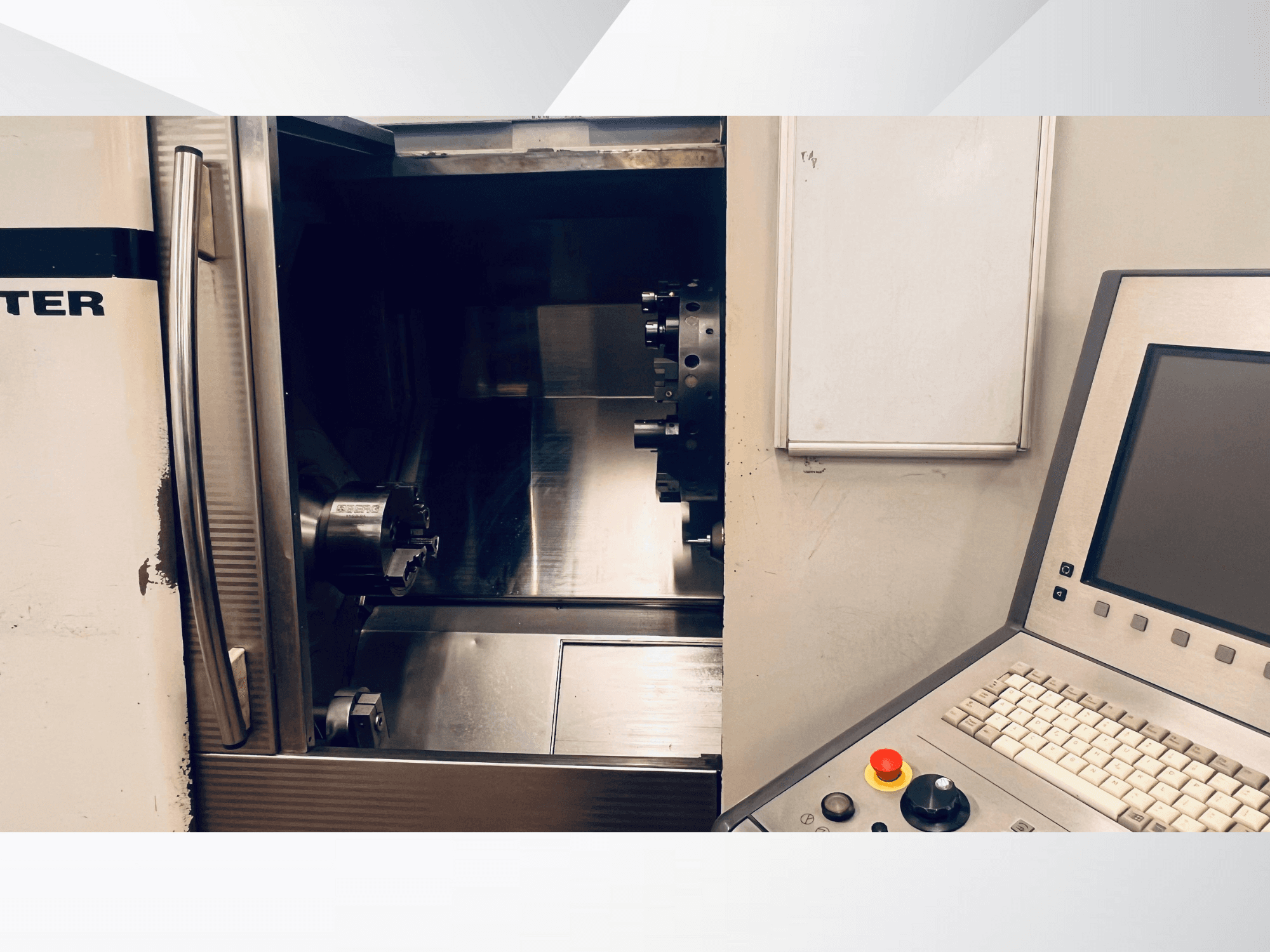

This 3-axis Gildemeister CTX 320 Linear was manufactured in 2004. It features a max turning diameter of 246 mm, swing over bed of 500 mm, and a bar capacity of 51 mm. The spindle supports up to 6000 rpm with a power of 20 kW. It includes a 12-station turret with VDI30 tool interface and Heidenhain Plus iT CNC control. Consider the opportunity to buy this Gildemeister CTX 320 Linear horizontal turning machine. Contact us for more information.
Overview
- brand: Gildemeister
- year: 2004
- MODEL: CTX 320 Linear
- production hours: 18335
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: HEIDENHAIN
Technical Information - Gildemeister CTX 320 Linear
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: Plus iT
Dimensions
- Machine Weight: 3500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 315 mm
- Y-axis Travel: 32 mm
- Z-axis Travel: 450 mm
Additional Information
Spindle Power: 20 / 16 kW (40% / 100% ED)
Max Torque: 200 / 155 Nm
Speed Range: 20 – 6000 rpm
Max Turning Diameter: 246 mm
Swing Over Bed: 500 mm
Number of Stations: 12
Tool Interface: VDI30
Very low operating hours, maintaining high precision, stability, and smooth performance.
Machine can be connected and tested under power.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
