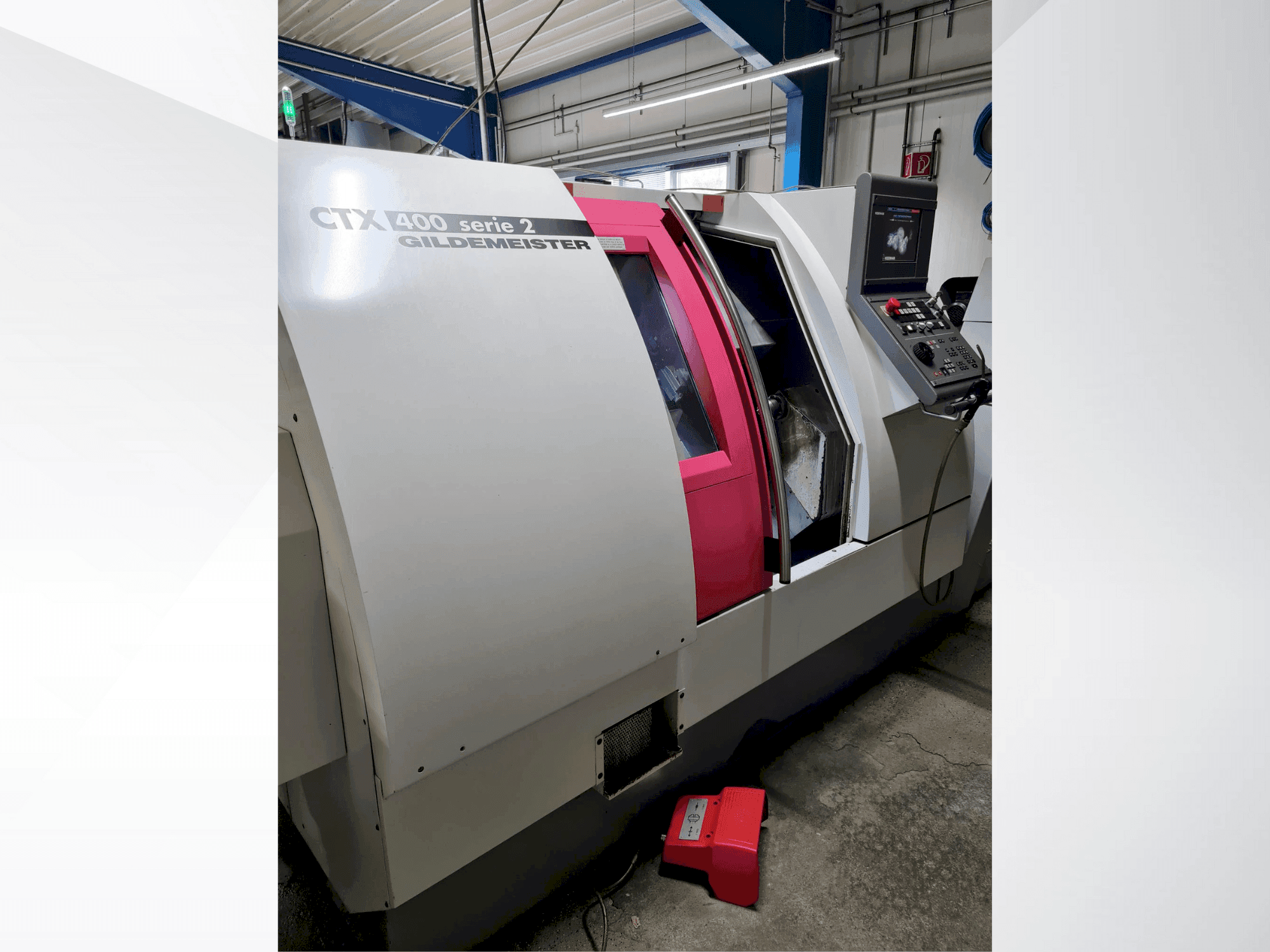

Front view of Gildemeister CTX 400 S2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 400 S2

Photo Gallery

Gildemeister - CTX 400 S2DE-TUR-GIL-2001-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTX 400 S2 For Sale | gindumac.com

This Gildemeister CTX 400 S2 lathe was manufactured in 2001. It features a Heidenhain CNC control system, a turning diameter max of 400 mm, and a turning length max of 600 mm. Equipped with a tailstock with quill, collet chuck, two-jaw chuck, four-jaw chuck, bar loader, and 9 attached tool holders. The spindle bore is 78 mm. Ideal for precision tasks, the Gildemeister CTX 400 S2 machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 400 S2
production hours: 37702
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 400 S2

Control Unit

Control Brand: HEIDENHAIN
Control Model: CNC Pilot with TURN PLUS

Movement

Number of Axes: 2
X-axis Travel: 220 mm
Z-axis Travel: 635 mm

Additional Information

Additional equipment

Tailstock with quill
Hainbuch collet chucks / a two-jaw chuck / a four-jaw chuck
Various guide channels for FMB
Not included: Collets and holders
Bar loader
9 attached tool holders
IRCO bar loader including all accessories
All driven tools
Complete original documentation
6 driven tools (3 x horizontal, 3x vertical) /

Machine Benefits

Qualitative Machine Benefits

Reliable and robust with substantial operating hours

Technical Machine Benefits

Max. Workpiece diameter: 400 mm / turning diameter max. 400 mm / turning length max. 600 mm
Standard turning diameter: 200 mm / turning diameter over bed 570 mm / turning diameter above the cross slide 420 mm
Spindle diameter: 120 mm / spindle bore 78 mm / max. Usable bar diameter (62) mm / chuck diameter max. 250 mm
Max. Usable bar diameter: 62 mm
Chuck diameter max: 250 mm
High precision turning with heidenhain control system
Extensive equipment setup for versatile operations
Travelling distance: traverse path - x 220 mm / traverse path - z 635 mm

Extra Information

Machine still under power / Machine can be tested under power at any time.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
