- ➤ Used Gildemeister CTX 400 Serie 2 | Horizontal Lathe

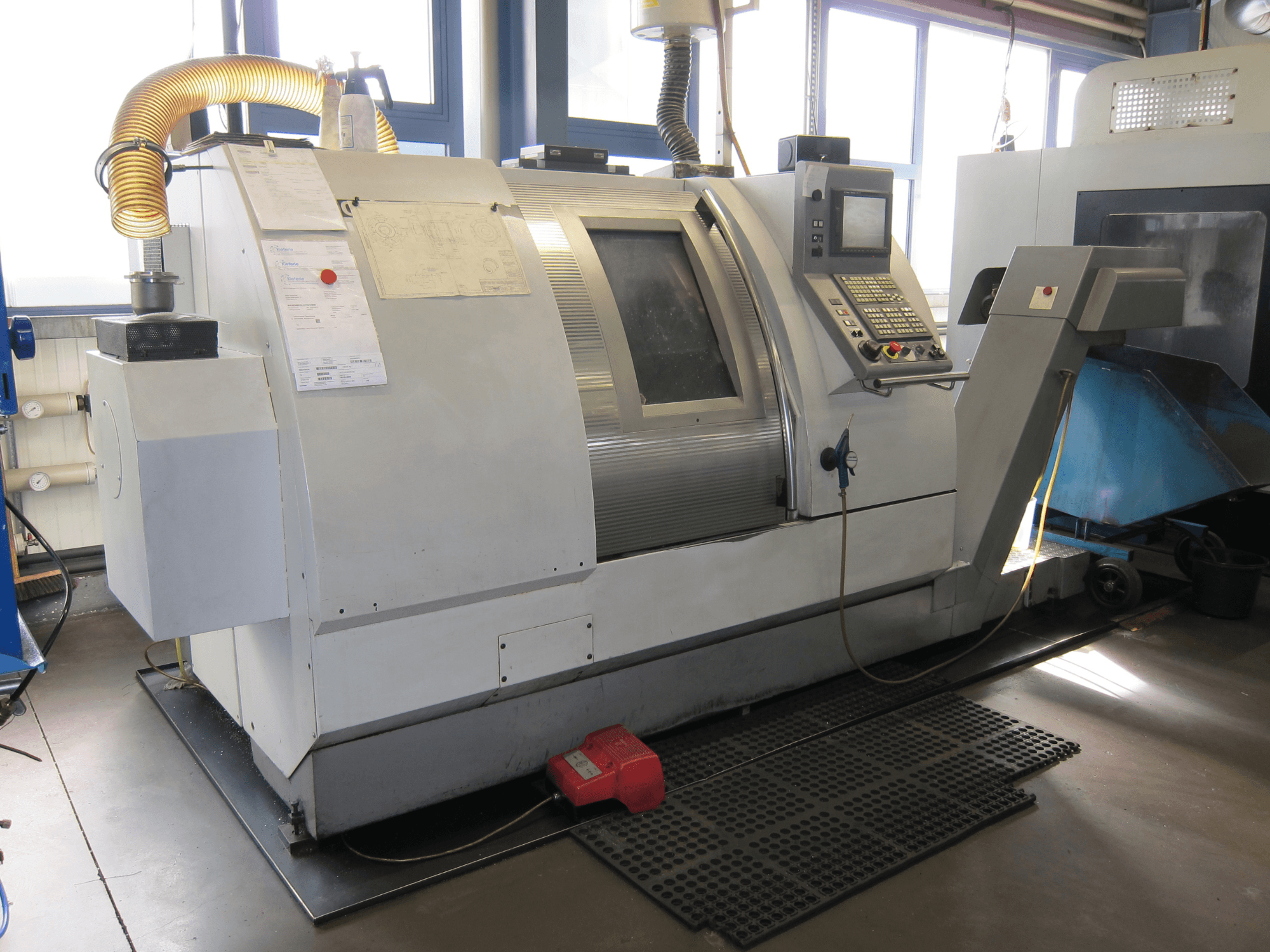

This 3-axis Gildemeister CTX 400 Serie 2 was manufactured in 2002. It features a spindle speed of up to 5,000 rpm and a z-axis travel of 635 mm, along with an x-axis travel of 570 mm over the bed. The machine includes a 12-position turret and is equipped with a 3-jaw chuck, chip conveyor, and coolant system. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 400 Serie 2 machine we have for sale. Contact us for further details.
Overview
- brand: Gildemeister
- year: 2002
- MODEL: CTX 400 Serie 2
- production hours: 22542
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Gildemeister CTX 400 Serie 2
Control Unit
- Control Brand: FANUC
- Control Model: Series 21i-T
Movement
- Number of Axes: 3
- X-axis Travel: 570 mm
- Z-axis Travel: 635 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 5000 RPM
Additional Information
X-axis travel: max. 570 mm (over bed) / 420 mm (over slide)
Voltage: 400 V
Frequency: 50 Hz
Power capacity: 44 kVA
Rated current: 64 A
Main fuse: 80 A
Control voltage: 230 V (AC) / 244 V (DC)
Working hours: 22,542 hours
Feed time: 8 hours 4 minutes
Turret: 12-position turret
Tooling capability: driven tools; C-axis displayed on screen
Additional equipment
3-jaw chuck
Chip conveyor
Coolant system
Workspace lighting
Optional: Tool Holder Package
Optional: Schunk Rota NCD 210-66 three-jaw chuck
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
