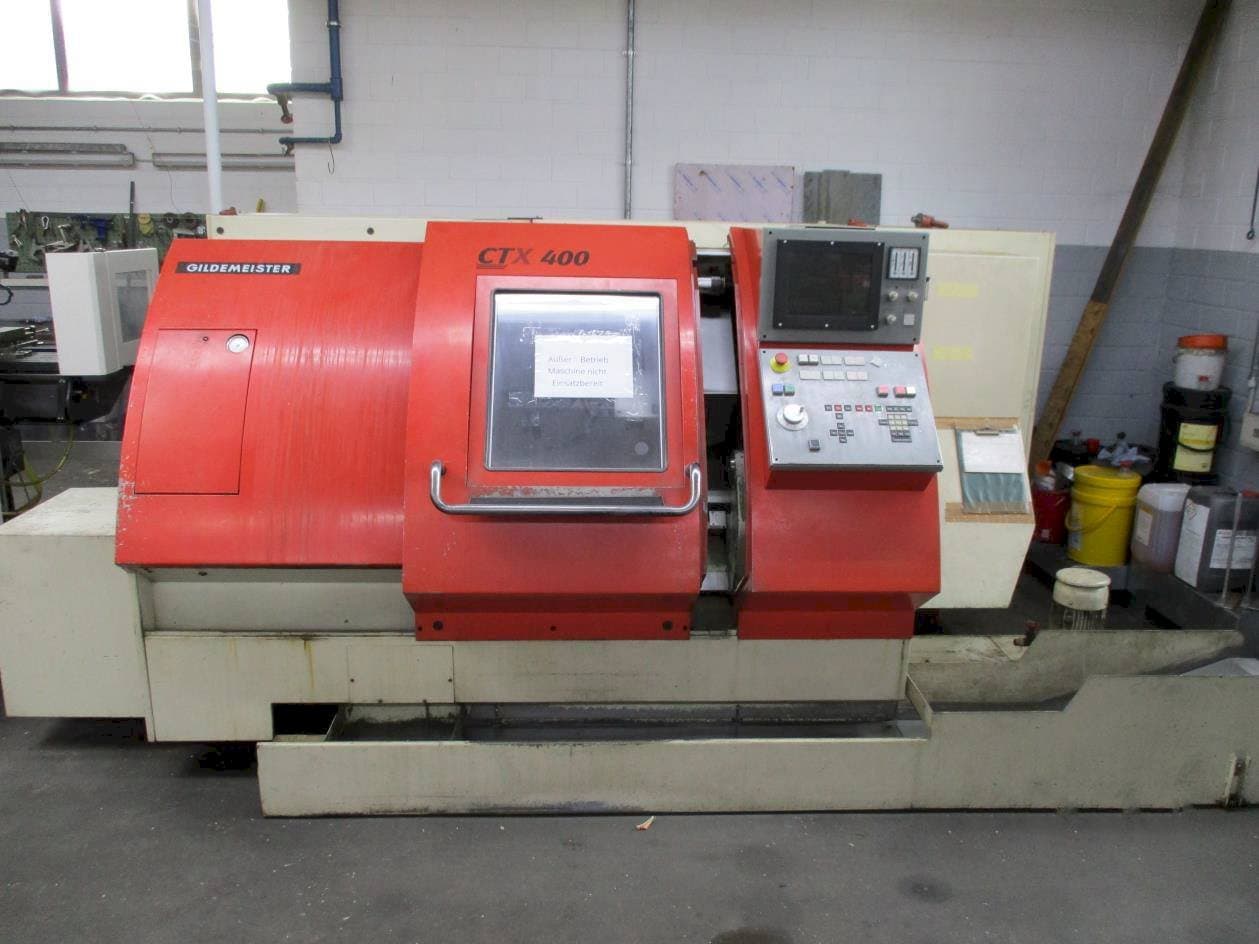

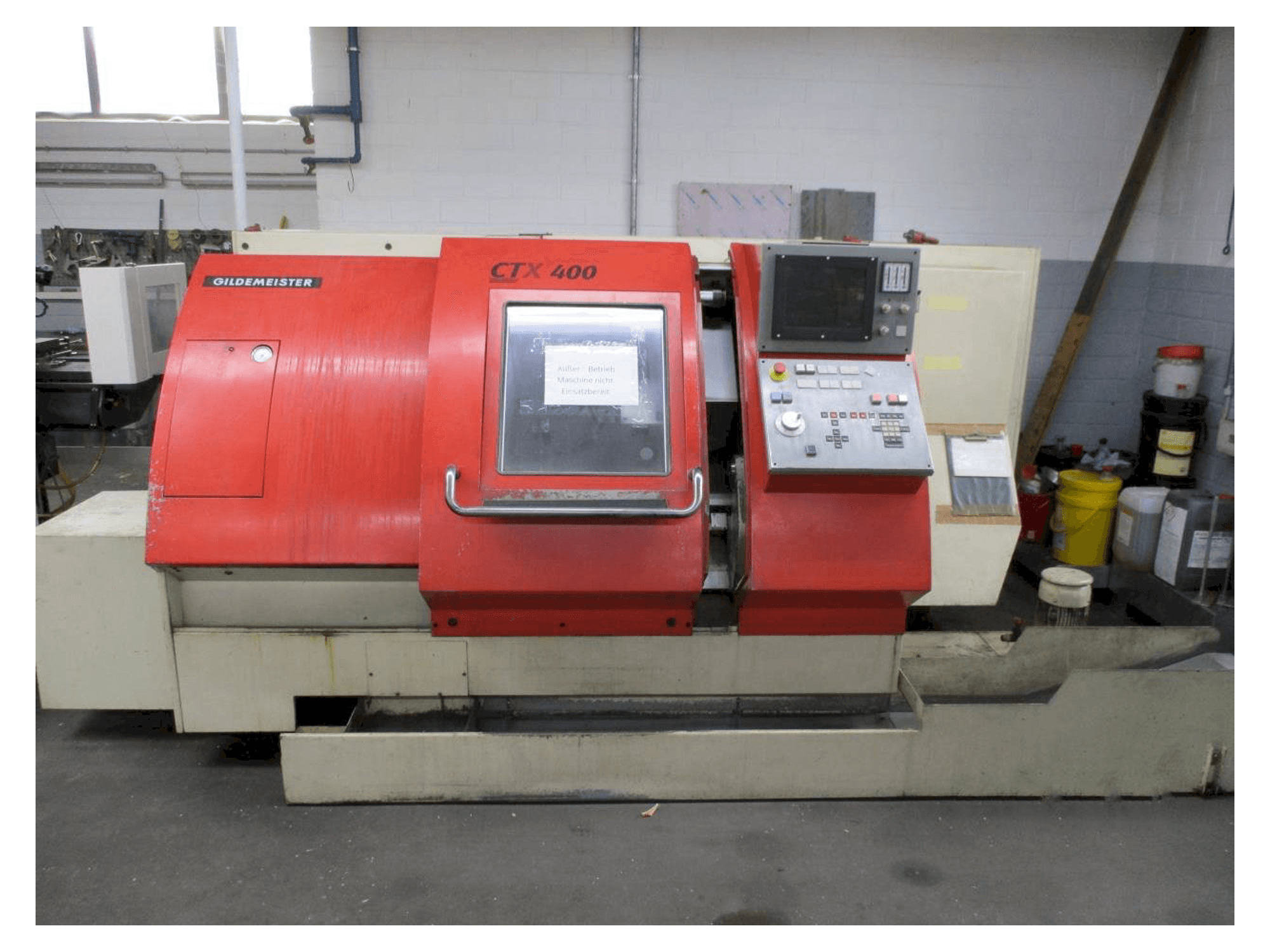

Front view of Gildemeister CTX 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 400

Photo Gallery

Gildemeister - CTX 400DE-TUR-GIL-1990-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Gildemeister CTX 400 - Pre-Owned Lathe For Sale

This Gildemeister CTX 400 Lathe was manufactured in the year 1990 in Germany and has 18335 production hours. It is equipped with a Gildemeister EPL 2 control unit. The machine has a spindle speed of 25-5000 rpm.

Overview

brand: Gildemeister
year: 1990
MODEL: CTX 400
production hours: 18335
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Gildemeister CTX 400

Movement

X-axis Travel: 212 mm
Z-axis Travel: 640 mm

Technical Specification

Spindle Power: 2 kW
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Turning diameter above support: 290 mm
Turning diameter over bed: 500 mm
Spindle diam. Front bearing: 100 mm
Spindle bore diameter: 72 mm hollow chip removal direction
Torque: 210 nm
Cylindrical shank tool holder: vdi 30
Tailstock quill stroke: 100 mm
Quill inner cone: mk 4
Tailstock force: 8 kn
Counter spindle: none

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
