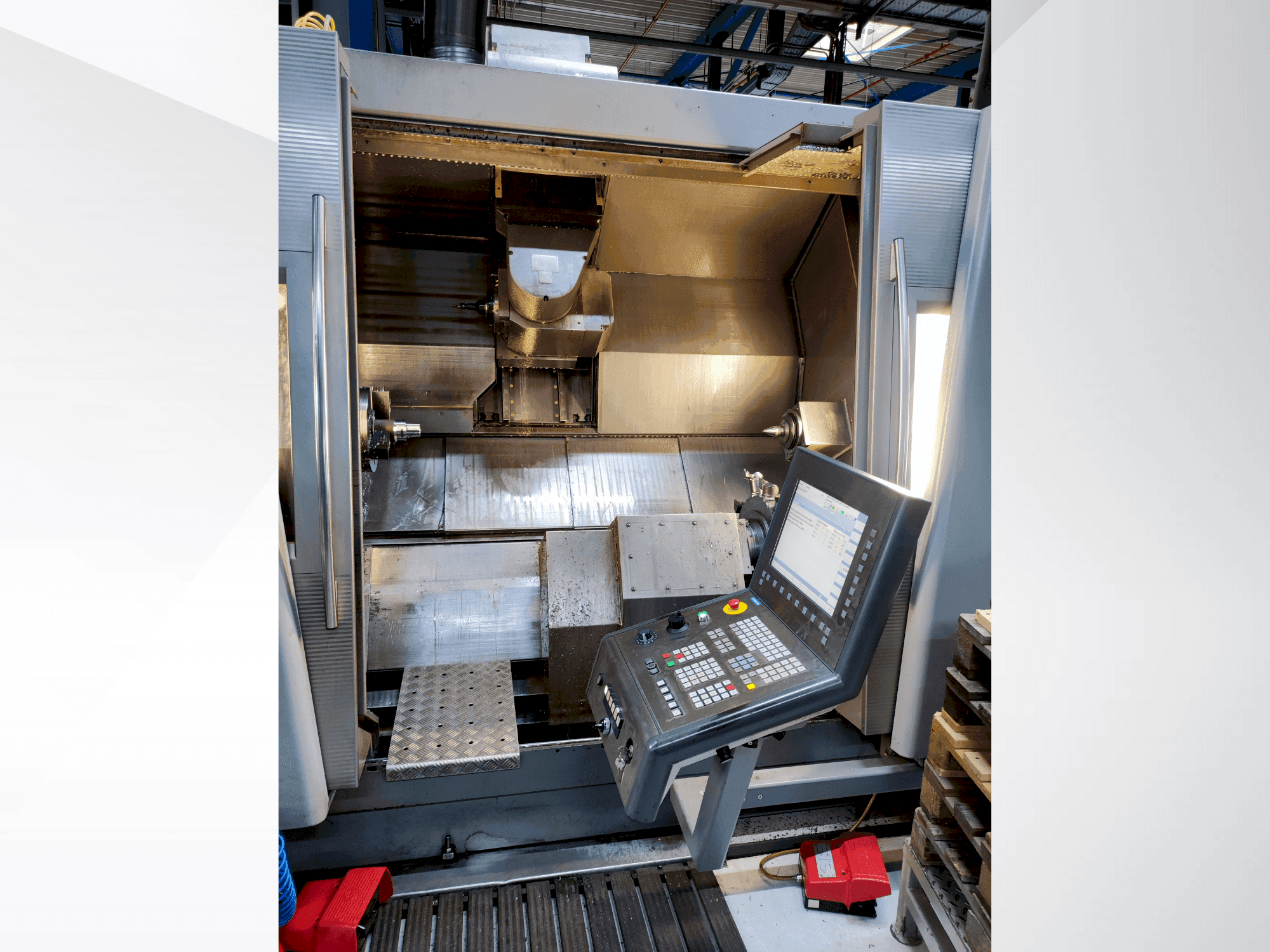

Front view of Gildemeister GMX 400 linear  machine

Gildemeister - GMX 400 linearDE-TUR-GIL-2007-00001

64,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 7-axis Gildemeister GMX 400 linear was manufactured in 2006. A robust turn-mill centre featuring an integrated spindle motor ISM 90, it offers a turning length of 1585 mm and includes a Y-axis of ±110 mm and B-axis of ±120°. Equipped with a 60-position tool magazine and CNC control SIEMENS 840 D powerline, it represents a significant asset for precision machining. Reach out for further details regarding this turn-mill centre.

Overview

  • brand: Gildemeister
  • year: 2006
  • MODEL: GMX 400 linear
  • application type: Turning
  • Location: Germany
  • machine type: Turn-Mill Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - Gildemeister GMX 400 linear

Control Unit

  • Model: 840 D powerline
  • Brand: SIEMENS

Main drive

  • Spindle motor power: 36/45 kW (100/40% ED)
  • Tool taper: HSK-63A DIN 69893

Movement

  • Y-AXIS Movement: ±110 mm
  • B-AXIS Movement: ±120° interpolating with hydraulic clamping MM

    Additional Equipment

    • - Integrated spindle motor ISM 90
    • - Partial hollow clamping device (hydraulic)
    • - C-axis and spindle brake (hydraulic)
    • - Triple Hirth serration with 1° indexing
    • - Absolute, direct path measuring systems in all linear axes
    • - Coolant tank: 500 litres with lifting pump and level control
    • - Coolant cleaning with belt filter (40 μm filter fineness)
    • - Chip conveyor, discharge height 1100 V24 and Ethernet interface
    • - Optional equipment: Star turret, Lower cross slide, NC tailstock

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Turning length: 1585 mm
        • - Max. Bar diameter: 92 mm
        • - Internal draw tube Ø: 92 mm x 825 mm deep
        • - Coolant pump: 8 bar; 20 l/min

      Extra information

      • - Machine still under power / Two units are available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
