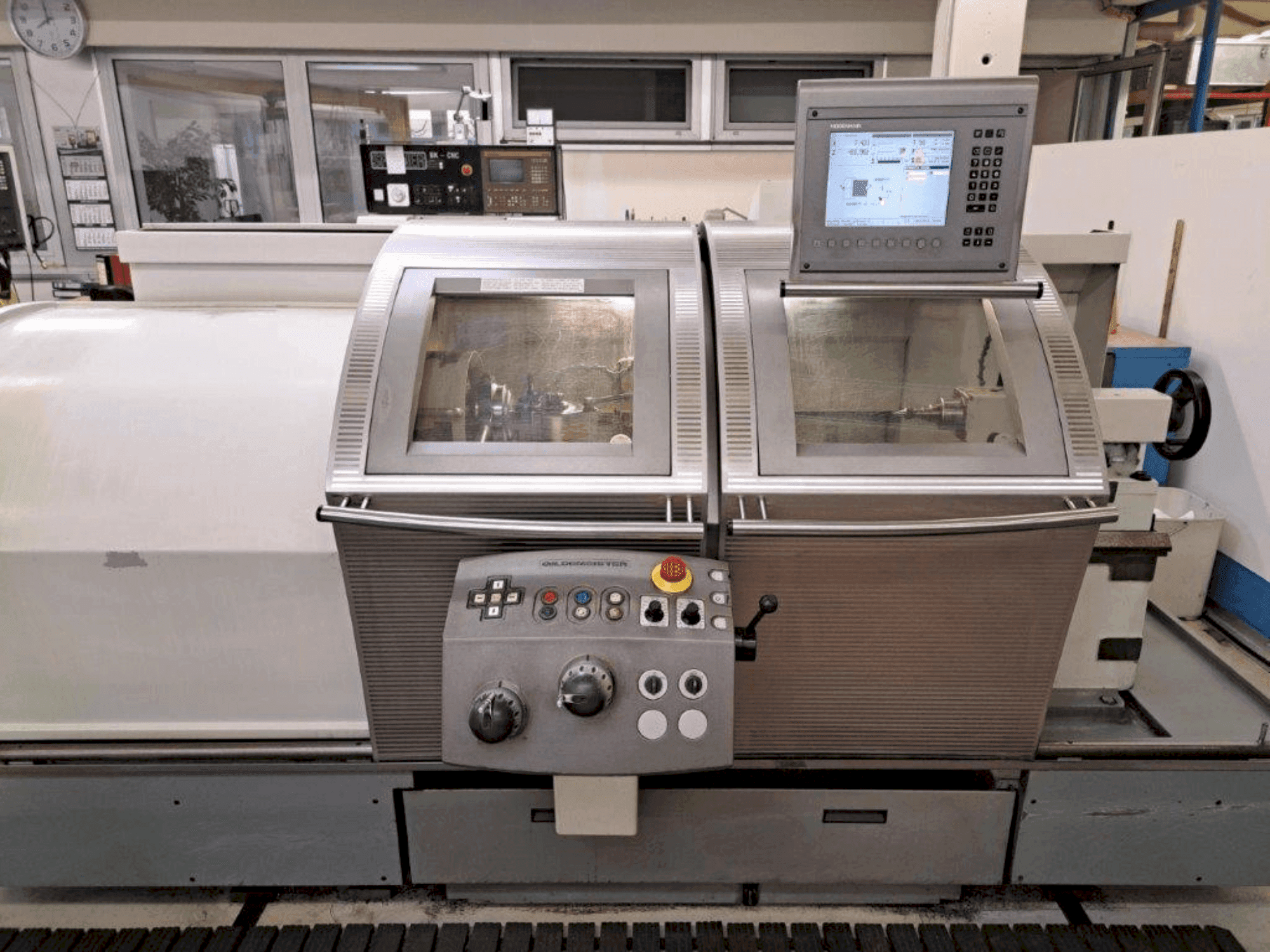

Front view of Gildemeister NEF520 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister NEF520

Photo Gallery

Gildemeister - NEF520DE-TUR-GIL-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister NEF520 For Sale | gindumac.com

This Gildemeister NEF520 was manufactured in 2005. A reliable horizontal turning machine, it offers robust performance for various machining tasks. Ideal for those looking to enhance their turning capabilities. Contact us for more information.

Overview

brand: Gildemeister
year: 2005
MODEL: NEF520
production hours: 34661
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister NEF520

Control Unit

Control Brand: HEIDENHAIN

Additional Information

Additional equipment

A traveling steady rest.
A ROTA-S plus 250-71 wedge bar chuck from Schunk.
Approximately 30 sets of clamping jaws, hard and soft.
Ten "Multifix" size C tool holders.

Machine Benefits

Technical Machine Benefits

Max chuck: 315 mm
Max torque: 900 nm
Center height: 250 mm
Center width: 1000/1500 mm
Max circulation bed: 500 mm
Max rotation of cross slide: 290 mm
Longitudinal stroke: 850/1350 mm
Facing stroke: 260 mm

Extra Information

Workpiece Support: Multifix-C tool system Number of Bed Slides: 1 MK5 Quill Taper Main Drive Main Drive: Siemens 57 Nm 23 A 1500 1/min Feed Flat: Siemens 3.2 Nm 2.4 A 3000 1/min Feed Longitudinal: Siemens 6 Nm 3.1 A 3000 1/min Lubrication: Beka 0.1 Kw 0.25 A 2700 1/min Coolant: EMP 155 W 0.74 A Tools Feed Speed (Longitudinal Slide): 5000 mm/min Feed Speed (Cross Slide): 5000 mm/min Rapid Traverse: 8 m/min Feed Force: 6000 N Spindle Speeds: I 4-1000 1/min stepless, II 4-4000 1/min stepless

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
