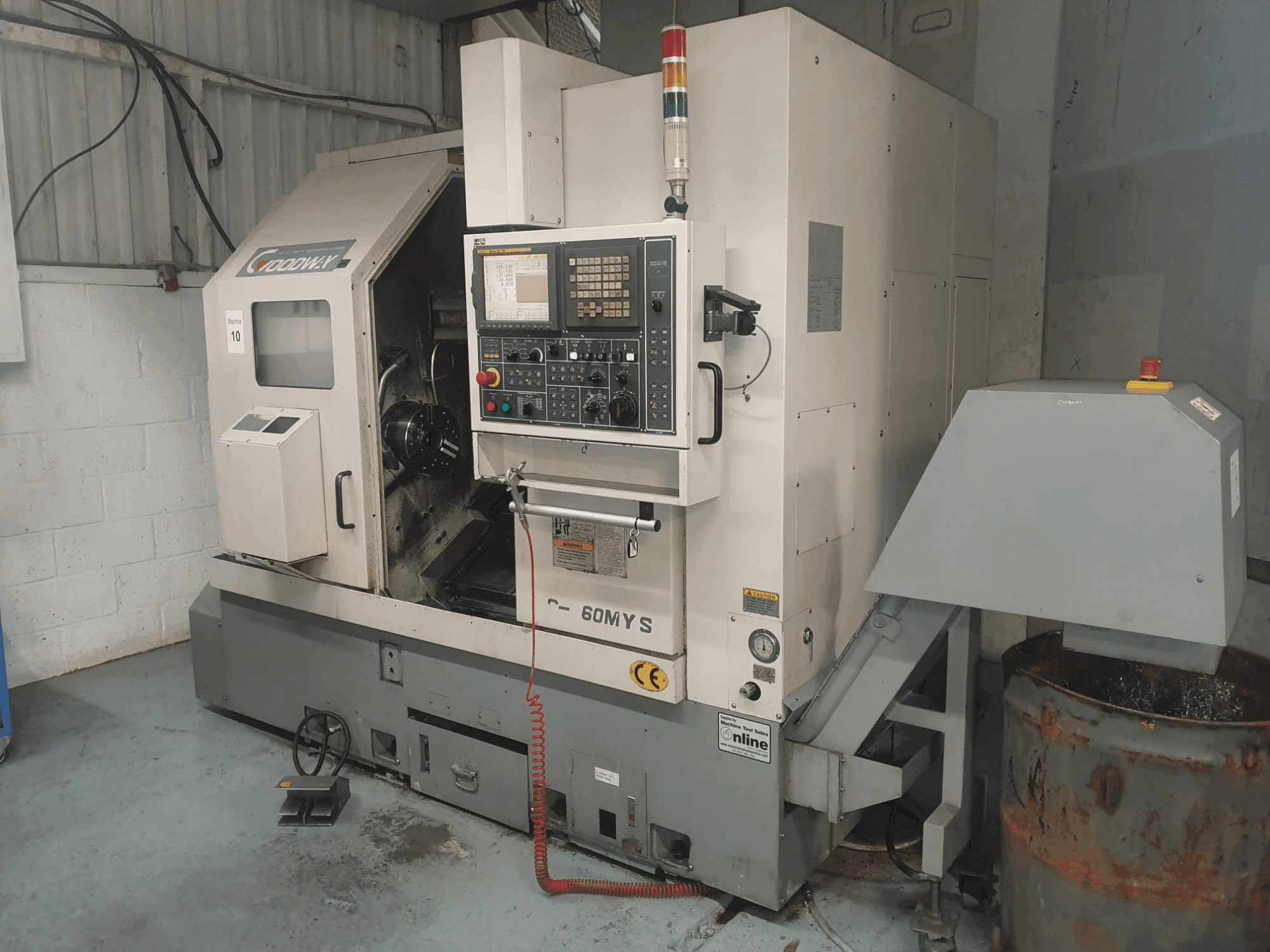

Front view of Goodway GS-260MYS  machine

Goodway - GS-260MYSIE-TUR-GOO-2006-00002

47,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This GOODWAY GS-260MYS Lathe was manufactured in the year 2006 and has 6000 production hours. It is equipped with a Fanuc 18i-TB control unit with CU Language Customizable. This machine has 2 spindles (4000 rpm) and have simultaneous axis operation (one of these is a counter spindle). Disposes of a turret and a chip conveyor. It can be included a Kitagawa B210 Chuck, an Auto Sirona N206 Chuck and a selection of Toolholders.

Overview

  • brand: Goodway
  • year: 2006
  • MODEL: GS-260MYS
  • production hours: 6000
  • application type: Turning
  • Location: Ireland
  • machine type: Turn-Mill Centre
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Goodway GS-260MYS

General Data

  • Measurements width: 2670 mm
  • Measurements depth: 1920 mm
  • Measurements height: 2260 mm
  • Machine weight: 5800 kg

Control Unit

  • Brand: Fanuc
  • Model: 18i-TB
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4000 1/MIN

Movement

  • X-AXIS Movement: 230 mm
  • Y-AXIS Movement: 110 mm
  • Z-AXIS Movement: 600 mm
  • C-AXIS Movement: 360º MM

Workpiece

  • Workpiece drm over bed: 420 mm
  • Workpiece z: 560 mm
  • Workpiece weight: 230 kg

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12
  • Type of tool holder: ER32

Media

  • Main electronic connection: 400 V
  • Power consumption: 38 kVA
  • Chip conveyor: Yes

    Additional Information

      Machine history

      • Material type: Steel
      • End product: Cutters for wood working machines

      Machine Benefits

      • Technical Machine Benefits:
        • - Machine with sub spindle
        • - Machine with driven tool turret
      • Qualitative Machine Benefits:
        • - Low machining hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
