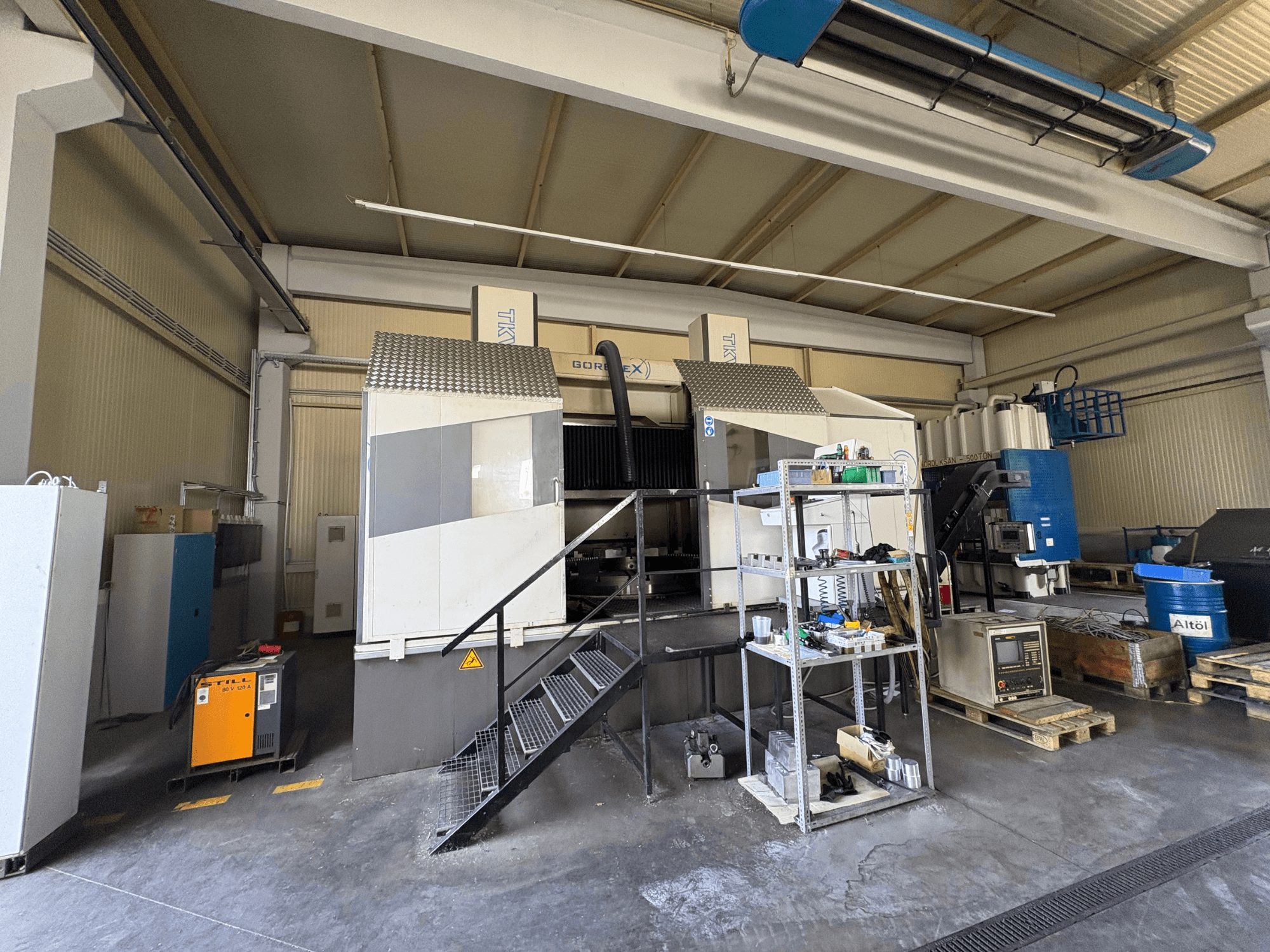

Industrial machining setup with GORAT X machine, side view; includes tools, control panel, and equipment on shelves.
Industrial machining setup with GORAT X machine, side view; includes tools, control panel, and equipment on shelves.

Thank you for your visit

This machine was recently sold.

Browse similar machines

GORBREX - TKV 525 CNCPL-TUR-GOR-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis GORBREX TKV 525 CNC was manufactured in 2021, offering precise vertical turning capabilities. Ideal for detailed machining tasks, this machine maintains robust construction and modern design. Consider the opportunity to buy this GORBREX TKV 525 CNC vertical turning machine. Contact us for more information.

Overview

  • brand: GORBREX
  • year: 2021
  • MODEL: TKV 525 CNC
  • application type: Turning
  • Location: Poland
  • machine type: Vertical Turning Machine
  • control unit brand: HEIDENHAIN

Technical Information - GORBREX TKV 525 CNC

Control Unit

  • Control Brand: HEIDENHAIN

Dimensions

  • Machine Weight: 35500 kg

Movement

  • Number of Axes: 3

Technical Specification

  • Spindle Power: 75 kW

Additional Information

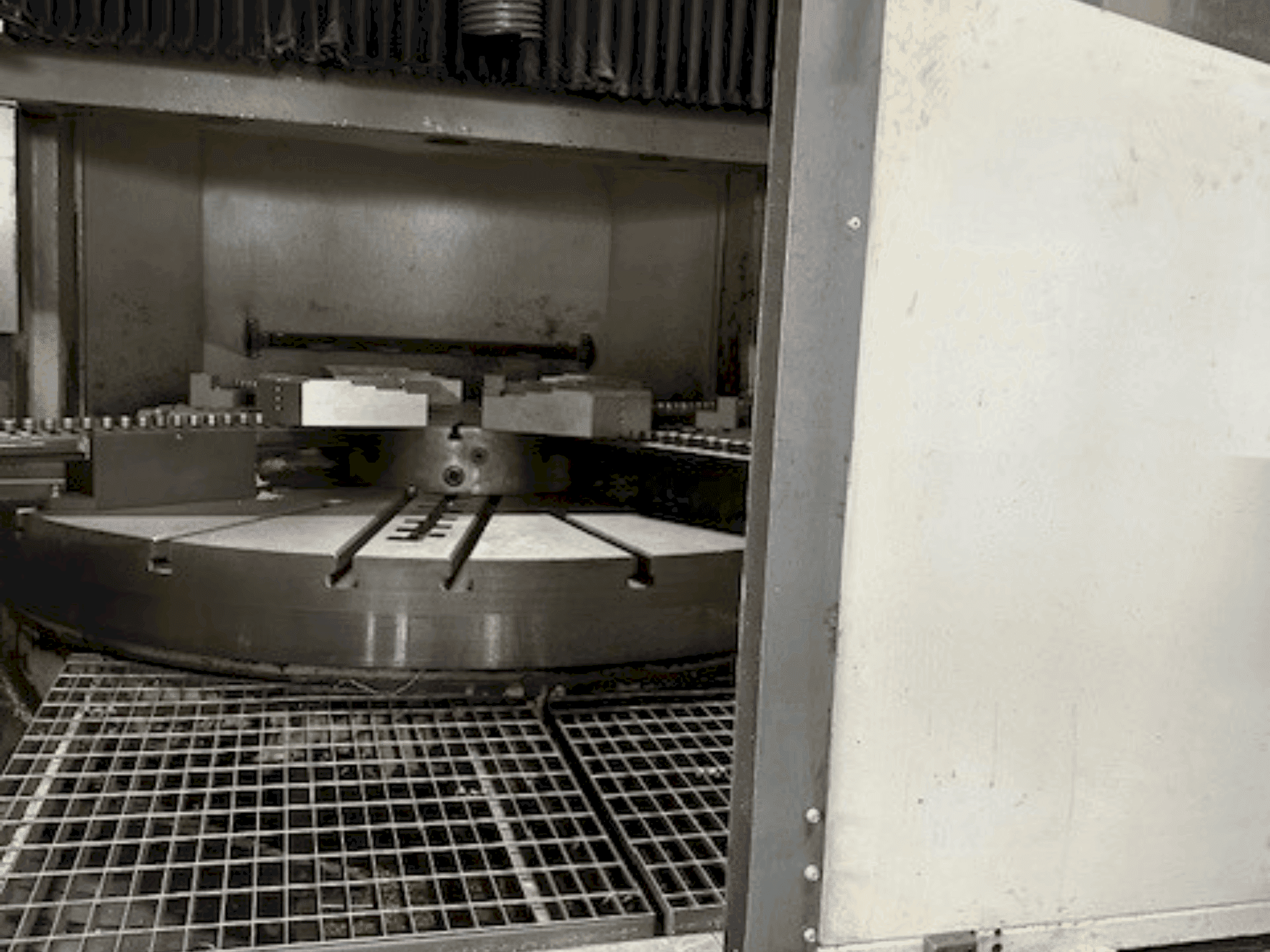

  • Table working surface diameter: 2,260 mm

  • Maximum machining diameter: 2,500 mm

  • Maximum workpiece height: 1,600 mm

  • Table rotational speed: 1–150 rpm

  • Maximum workpiece weight:

    • 1–25 rpm: 10,000 kg

    • 25–100 rpm: 5,000 kg

  • Vertical supports (slides): 2 (right/left)

  • CNC axes (right slide): X (horizontal), Z (vertical)

  • CNC axes (left slide): X1 (horizontal), Z1 (vertical)

  • Slide travel: X (horizontal) 1,395 mm, Z (vertical) 1,165 mm

  • Feed rate (stepless): 1–5,000 mm/min

  • Rapid traverse: 5,000 mm/min

  • Max torque (DC feed motors): 37 Nm

  • Vertical slide torsion angle: 30°

  • Crossrail vertical travel: 1,320 mm

  • Main drive motor power: 75 kW

  • CNC control: Siemens Sinumerik 840D sl

  • Machine weight: approx. 35,500 kg

  • Power supply: 3 × 380 V, 50 Hz

  • Control voltage: 24 V AC

  • Max. Turning diameter: 2800 mm

  • Workpiece height: 800 mm

Machine still under power

Additional equipment

  • Scope of delivery: Machine, clamping system, chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
