GROB G350 5 Axes - Universal Machining Center | GINDUMAC

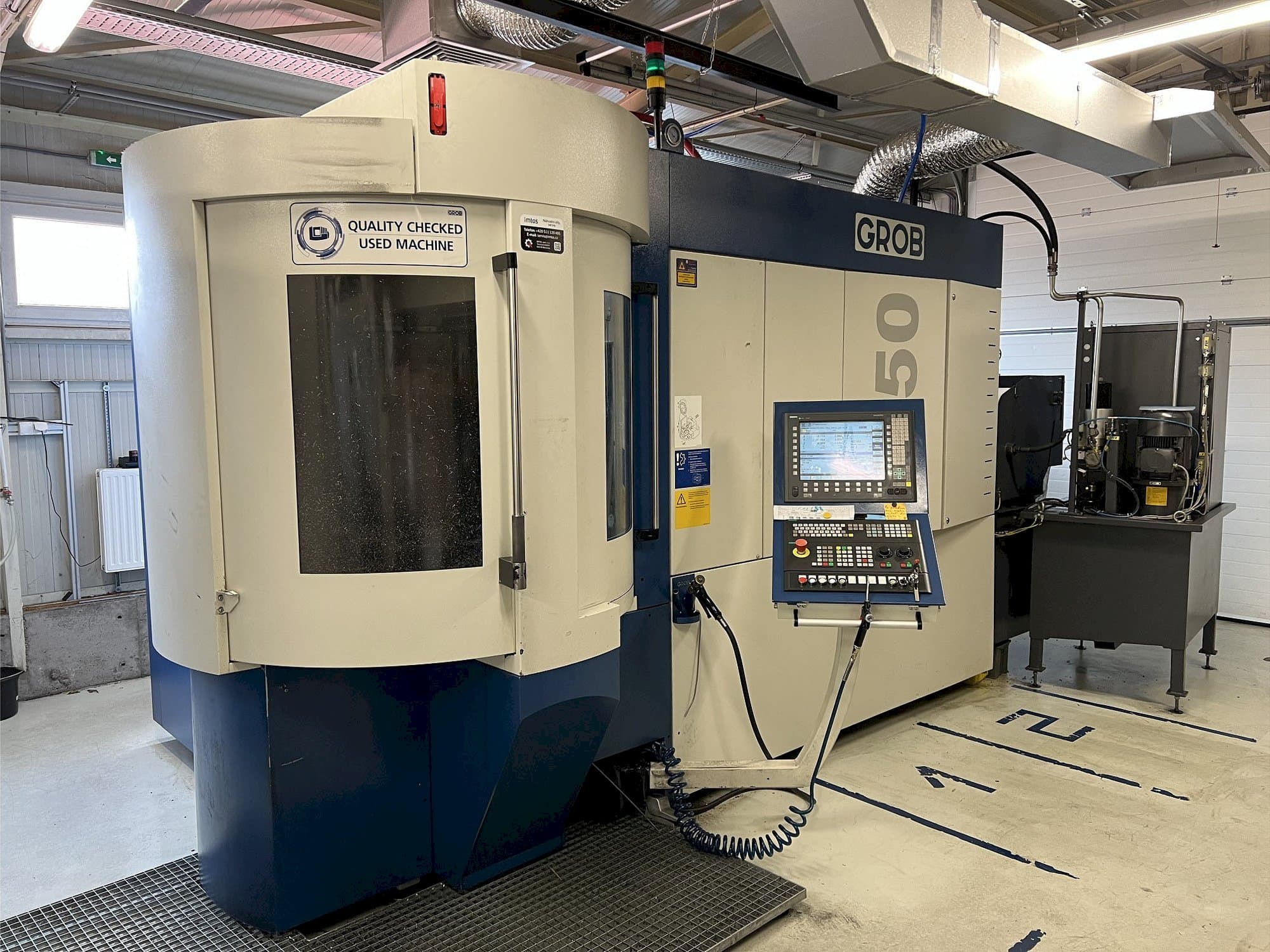

This 5-Axis GROB G350 universal machining center was manufactured in the year 2011 and has 54019 hours, of which 17507 are spindle hours. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 18000 rpm.

Overview

brand: GROB
year: 2011
MODEL: G350
production hours: 54019
application type: Milling
Location: Slovakia
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - GROB G350

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Number of spindles: 1
Spindle speed range: 18000 rpm 1/MIN
Spindle motor power: 29/39 kW
Tool taper: HSK-A 63
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 770 mm
Z-AXIS Movement: 805 mm

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 34
Type of tool holder: HSK-A 63

Media

Chip conveyor: Yes

Additional Equipment

- Tool cleaning device
- Electromechanical tool length checking device
- Pallet changing system
- Scraper belt chip conveyor
- Extended high-pressure cooling lubricant system
- Remote machine diagnostics
- Renishaw omp60 probe (including preparations)
- The B-Axis have a Torque Motor.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The machine on offer is a single piece of the generation 0 in hydraulic-free execution.
- - Electromechanical pallet clamping system.
- - Workpiece carrier pallets with electromechanical pallet clamping system.
- - Adjustment device for electromechanical clamping on pallet.
- - Electromechanical motor spindle.
- - Second-hand machine, without torque motor in the a axis. The a-axis is equipped with a worm drive.
- - Rotary table with pallet clamping system grob (b'-axis, pw)
- - Motor spindle in electromechanical version
- - High spindle speed, advanced control system, effective ikz.
- - Machine bed with screw connection
Qualitative Machine Benefits:
- - Enhanced precision, efficient tool and pallet handling.
- - Wide-opening set-up station doors, accessible from all sides
- - Chip disposal, interlit factory outlet

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
