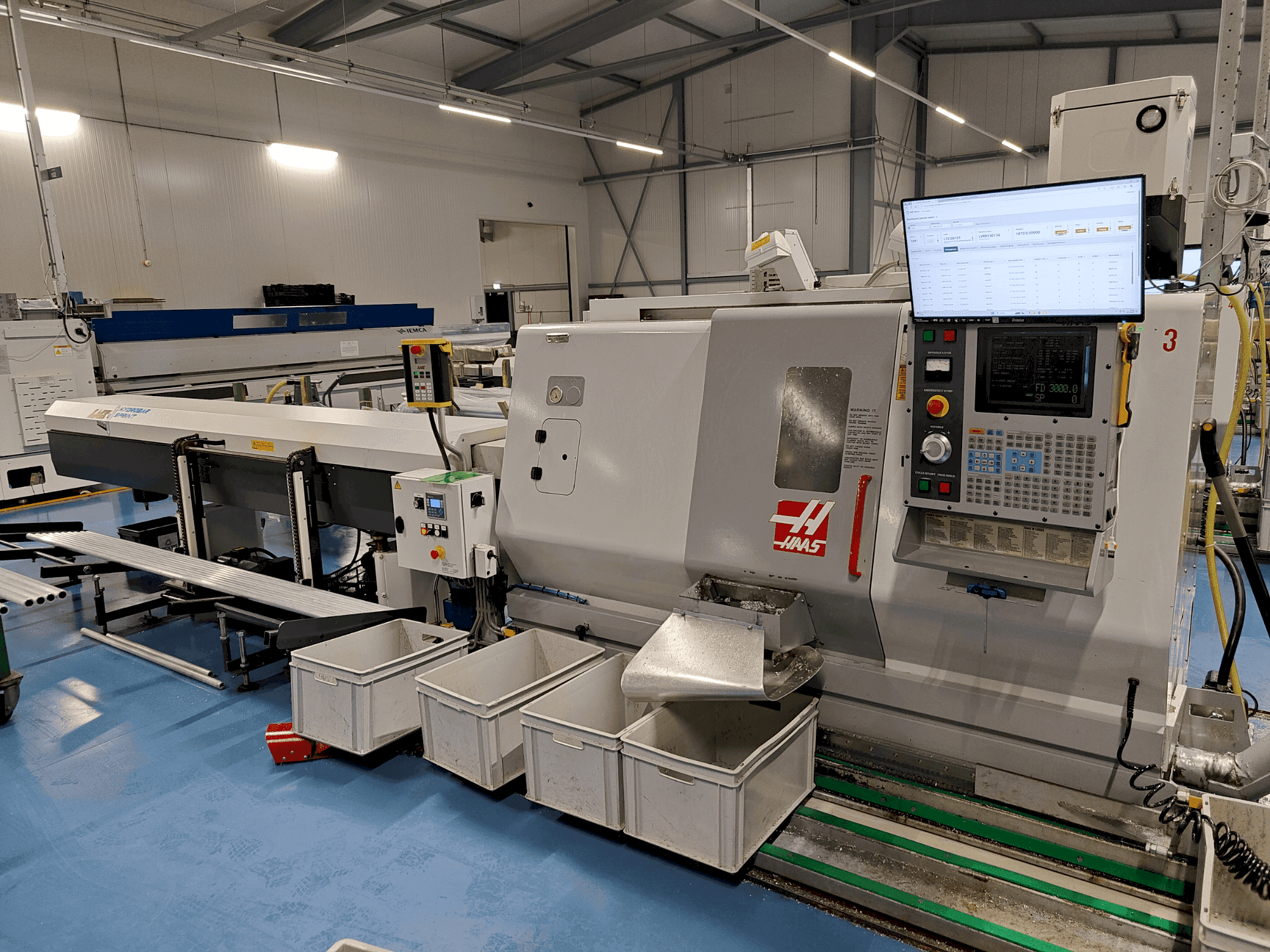

Front view of HAAS SL-20HE (2002) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAAS SL-20HE

Photo Gallery

HAAS - SL-20HENL-TUR-HAA-2002-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe HAAS SL-20HE - 2002 - for sale | gindumac.com

This 5-Axis lathe was manufactured in 2002. With a turning length of 508 mm and a 15 kW main engine, it's equipped for precision machining. The 210 mm chuck and 10-position tool turret ensure versatility. Featuring a rigid tapping system and VDI turret, it's ideal for varied machining tasks. Boasting a spindle speed of 4,000 rpm, it delivers efficiency. Complete with European package additions like USB port and chip conveyor, buy this HAAS SL-20HE lathe for a reliable machining solution. Contact us for further information.

Overview

brand: HAAS
year: 2002
MODEL: SL-20HE
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS SL-20HE

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 3213 mm
Machine Height: 1778 mm
Machine Weight: 4082 kg

Movement

Number of Axes: 5
X-axis Travel: 215 mm
Z-axis Travel: 508 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Hydraulic tailstock
Automatic lubrication system
Load Monitor

Machine Benefits

Technical Machine Benefits

Cooling tank capacity of 151 litres
Air connection of 7 bar, 113 l/min
Connected load of 14 kva (increased passage (b) = 28 kva)
Max. Torque at main spindle of 209 nm
Spindle diameter of 76 mm
Bar passage of 52 mm
Maximum turning diameter: 262 mm // swing diameter: 584 mm // turning length (max): 508 mm // distance between centers: 610 mm
Chuck of 210 mm
Complete c axis
Usb port and chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
