➤ Used HAAS ST-20 Horizontal Lathe For Sale | gindumac.com

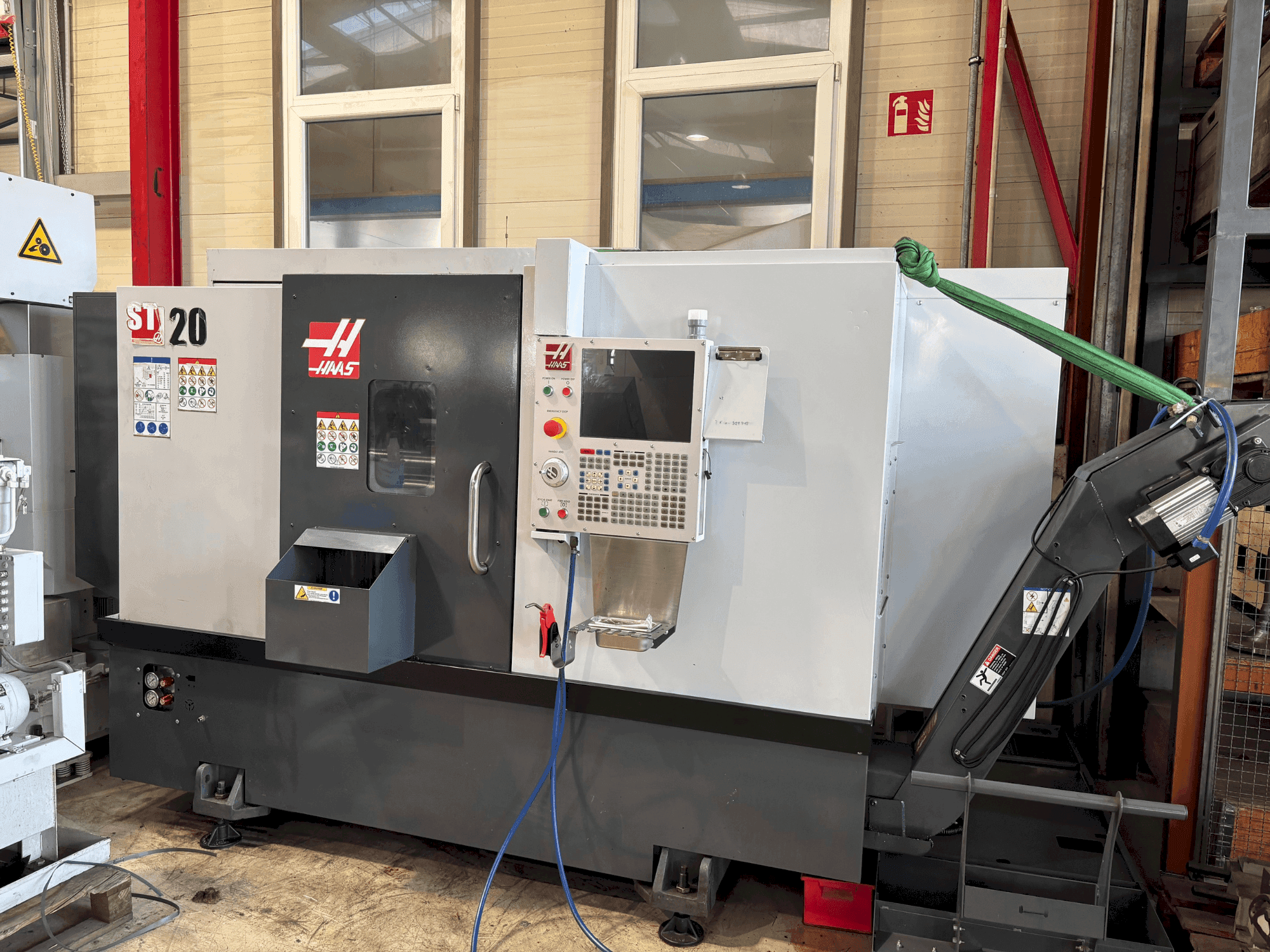

This HAAS ST-20 was manufactured in 2019. A robust horizontal turning machine featuring a 210mm hydraulically actuated chuck, a VDI turret with 12 tool stations, and a spindle speed of 4,000 rpm. It supports a maximum load of 330 x 572 mm and bar diameters up to 64 mm. Ideal for precision turning operations. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2019
MODEL: ST-20
production hours: 11111
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-20

Control Unit

Brand: HAAS
Model: n/a

Main drive

Spindle speed range: 4000 rpm 1/MIN

Additional Equipment

- Additional Options: Driven 4000 rpm tool and C-axis, 12 stations BMT65, Automatic tool presetting arm
- Features: Hinged belt chip conveyor, Lathe parts catcher
- Coolant System: 208l coolant tank, Variable coolant flow
- Other Features: Visual part programming system (1GB), Hydraulically actuated 210mm chuck A2-6, Early detection module for power failure, Synchronized tapping, safe running, Control touchscreen, Ethernet, HaasConnect, HaasDrop, M130, WLAN
- Additional Features: Macros, SOM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum load capacity: 330 x 572 mm / diameter range for bars: 64 mm
- - Type: vdi turret with 12 tool stations
- - Type: programmable hydraulic tailstock
- - Preparation for robot / driven tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
