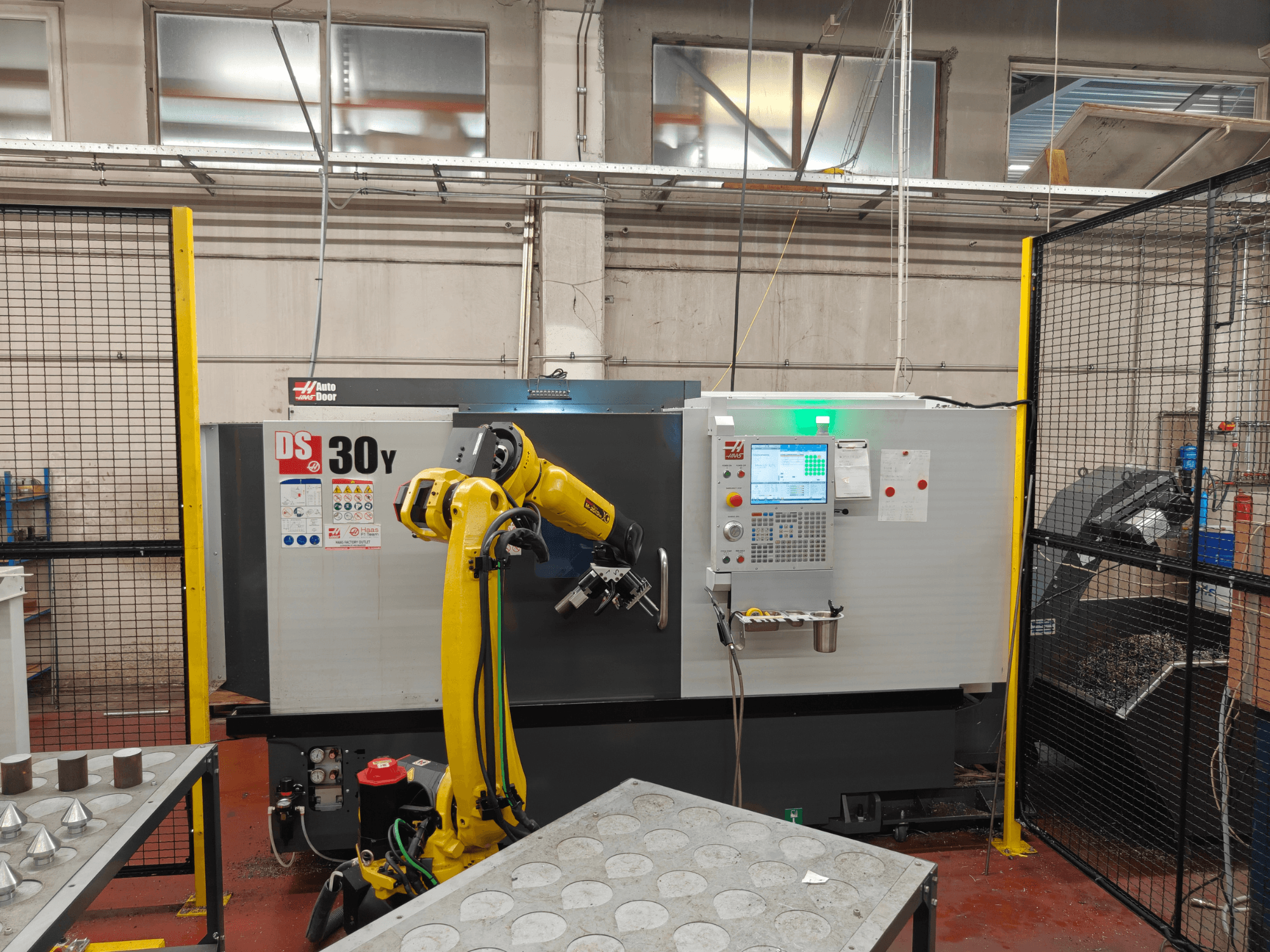

This 4-axis HAAS DS30Y horizontal turning machine was manufactured in 2023. It features a maximum part swing of 533 mm and a maximum cutting diameter of 349 mm. The machine is equipped with a robust turret that accommodates 12 tools, ensuring versatility in operations. If you are looking to get high-quality turning capabilities, consider the HAAS DS30Y machine we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2023
- MODEL: DS30Y
- production hours: 2408
- application type: Turning
- Location: Belgium
- machine type: Horizontal Turning Machine
Technical Information - HAAS DS30Y
Dimensions
- Machine Weight: 5534 kg
Movement
- Number of Axes: 4
- X-axis Travel: 239 mm
- Y-axis Travel: 102 mm
- Z-axis Travel: 584 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22.4 kW
- Spindle Speed: 4500 RPM
Additional Information
Capacities:
Chuck size (main): 10.0 in / 254 mm
Max part swing: 21.0 in / 533 mm
Max cutting diameter (with BMT65 turret): 13.75 in / 349 mm
Max cutting length (varies with workholding): 32.5 in / 826 mm
Bar capacity: 3.00 in / 76 mm
Between centers: 32.5 in / 826 mm
Feedrates (rapids):
X: 472 ipm / 12.0 m/min
Y: 472 ipm / 12.0 m/min
Z: 945 ipm / 24.0 m/min
Axis motors (max thrust):
X: 4100 lbf / 18238 N
Y: 2300 lbf / 10231 N
Z: 5100 lbf / 22686 N
Main spindle:
Spindle nose: A2-6
Drive system: Direct speed, belt drive
Max torque: 275 ft-lbf @ 500 rpm / 373 Nm @ 500 rpm
Draw tube bore: 3.0 in / 76 mm
Spindle bore: 3.50 in / 88.9 mm
Main spindle C axis:
Max speed: 60 rpm
Max rating: 5.0 hp / 3.7 kW
Positioning (±): 0.01°
Brake diameter: 13.9 in / 353 mm
Brake holding torque: 250 ft-lbf / 339 Nm
Control type: Interpolated motion and positioning
Secondary spindle:
Chuck size: 8.3 in / 210 mm
Spindle nose: A2-5
Drive system: Direct speed, belt drive
Max rating: 15.0 hp / 11.2 kW
Max speed: 4000 rpm
Max torque: 100 ft-lbf @ 870 rpm / 135.6 Nm @ 870 rpm
Spindle bore ø (non-through): 0.81 in / 20.7 mm
Secondary spindle C axis:
Max rating: 5.0 hp / 3.7 kW
Max speed: 60 rpm
Positioning (±): 0.01°
Brake diameter: 8.5 in / 216 mm
Brake holding torque: 140 ft-lbf / 190 Nm
Control type: Interpolated motion and positioning
Secondary spindle positioning (M119):
Positioning (±): 0.02°
Brake diameter: 8.5 in / 216 mm
Control type: Positioning only
Turret:
Number of tools: 12 stations
OD vs ID tools: Any combination (will vary with turret)
Boring bar rear clearance (from back of turret): 4.00 in / 102.0 mm
Live tooling:
Max speed: 4000 rpm
Drive ratio: 1:1
Tooling: BMT65
General:
Coolant capacity: 55 gal / 208 L
Air requirements:
Air required: 4 scfm @ 100 psi / 113 L/min @ 6.9 bar
Inline air hose: 3/8 in
Coupler (air): 3/8 in
Minimum air pressure: 80 psi / 5.5 bar
Electrical specification:
Spindle speed: 4500 rpm
Drive system: Direct speed, belt drive
Spindle power: 30.0 hp / 22.4 kW
Input AC voltage (3-phase) – low: 220 VAC; full load amps: 70 A
Input AC voltage (3-phase) – high: 440 VAC; full load amps: 35 A
Dimensions – shipping:
Domestic pallet: 171 in x 90 in x 98 in / 434 cm x 229 cm x 249 cm
Export pallet: 171 in x 90 in x 98 in / 434 cm x 229 cm x 249 cm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
