HAAS - ST-10YIT-TUR-HAA-2023-00002

Name: HAAS ST-10Y
Brand: HAAS
SKU: IT-TUR-HAA-2023-00002
Price: 143000 EUR
Availability: InStock

143,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST-10Y For Sale | gindumac.com

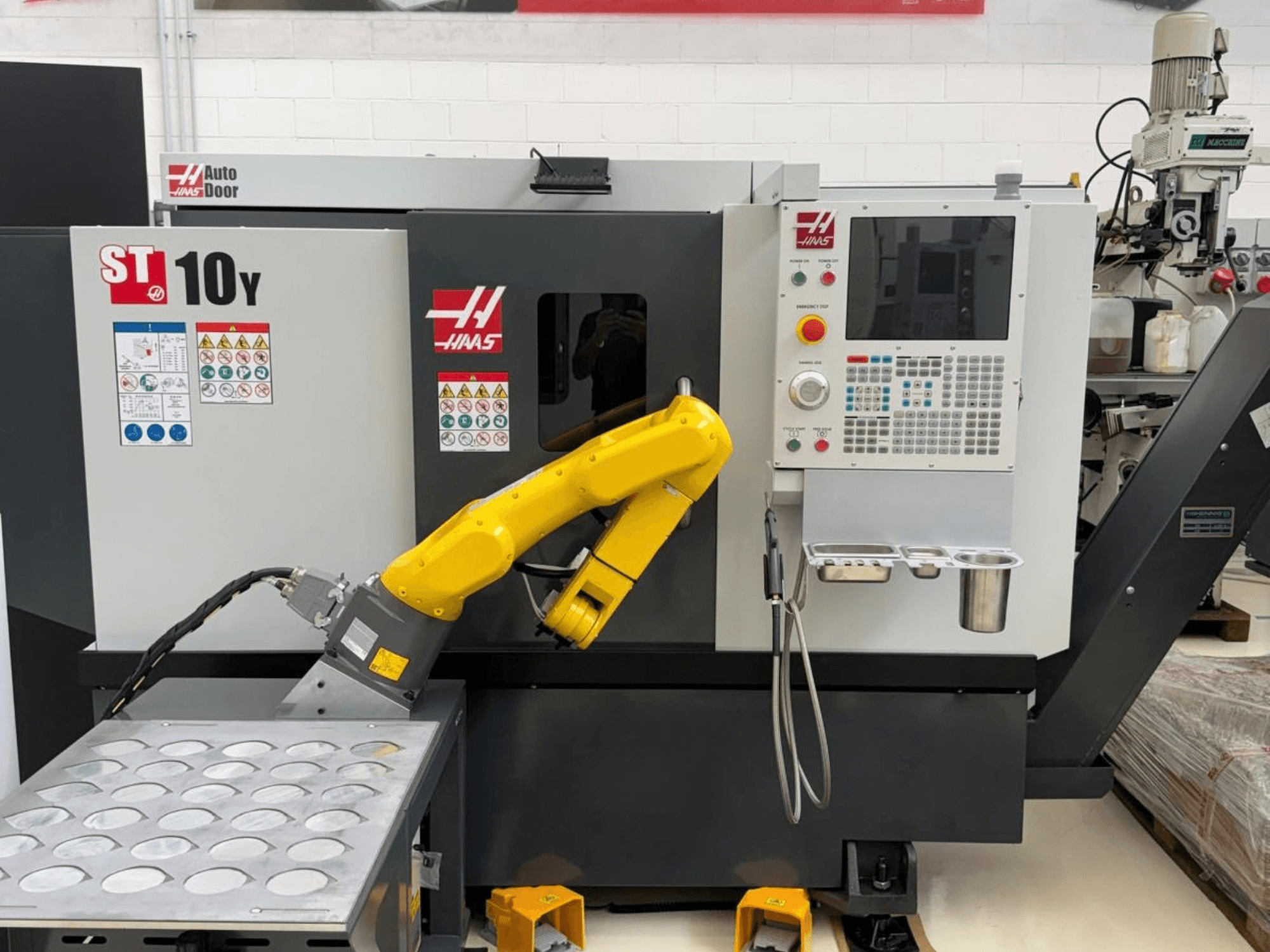

This 3-axis HAAS ST-10Y was manufactured in 2023. It features a maximum cutting diameter of 11.00 in and a maximum cutting length of 16.0 in. The machine is equipped with a 12-station turret and offers rapid movements of up to 1200 ipm on the Z-axis. If you are looking to get high-quality turning capabilities, consider the HAAS ST-10Y horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2023
MODEL: ST-10Y
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - HAAS ST-10Y

Movement

Number of Axes: 3
X-axis Travel: 200 mm
Y-axis Travel: 102 mm
Z-axis Travel: 406 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: No
Spindle Power: 11.2 kW
Spindle Speed: 6000 RPM

Additional Information

Working Hours: 0
Showroom Machine
Chuck Size: 6.5 in / 165 mm
Max Part Swing: 16.5 in / 419 mm
Max Cutting Diameter: 11.00 in / 279 mm (with BMT45 turret)
Max Cutting Length: 16.0 in / 406 mm
Bar Capacity: 1.75 in / 44 mm
Rapids on X: 472 ipm / 12.0 m/min
Rapids on Y: 472 ipm / 12.0 m/min
Rapids on Z: 1200 ipm / 30.5 m/min
Max Thrust X: 2400 lbf / 10676 N
Max Thrust Y: 2300 lbf / 10231 N
Max Thrust Z: 3700 lbf / 16458 N
Spindle Nose: A2-5
Spindle Max Torque: 75.0 ft-lbf @ 1300 rpm / 102.0 Nm @ 1300 rpm
Draw Tube Bore ø: 1.81 in / 46 mm
Spindle Bore ø: 2.31 in / 58.7 mm
Main Spindle C Axis Max Speed: 60 rpm
Main Spindle C Axis Positioning: ± 0.02°
Sub-Spindle Chuck Size: 5.3 in / 135 mm
Sub-Spindle Max Speed: 6000 rpm
Tailstock Taper: MT3
Tailstock Hydraulic Quill Travel: 3.8 in / 95 mm
Turret Stations: 12 Stations (BMT45)
Live Tooling Max Speed: 4000 rpm
Coolant Capacity: 30 gal / 114 L
Air Required: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar
Shipping Weight: 7900 lb / 3584.0 kg

Additional equipment

Robot Package Max Load Capacity at Wrist: 15.4 lb / 7 kg
Robot Package Reach: 35.9 in / 911 mm
Robot Package Repeatability: 0.0004 in / 0.010 mm
Robot Single Gripper Max Part Weight: 7.9 lb / 3.6 kg
Robot Dual Gripper Max Part Weight: 5.0 lb / 2.3 kg per gripper

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
