HAAS ST-30
HAAS - ST-30
2014
45,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Used Lathe HAAS ST-30 - 2014 - for sale | gindumac.com

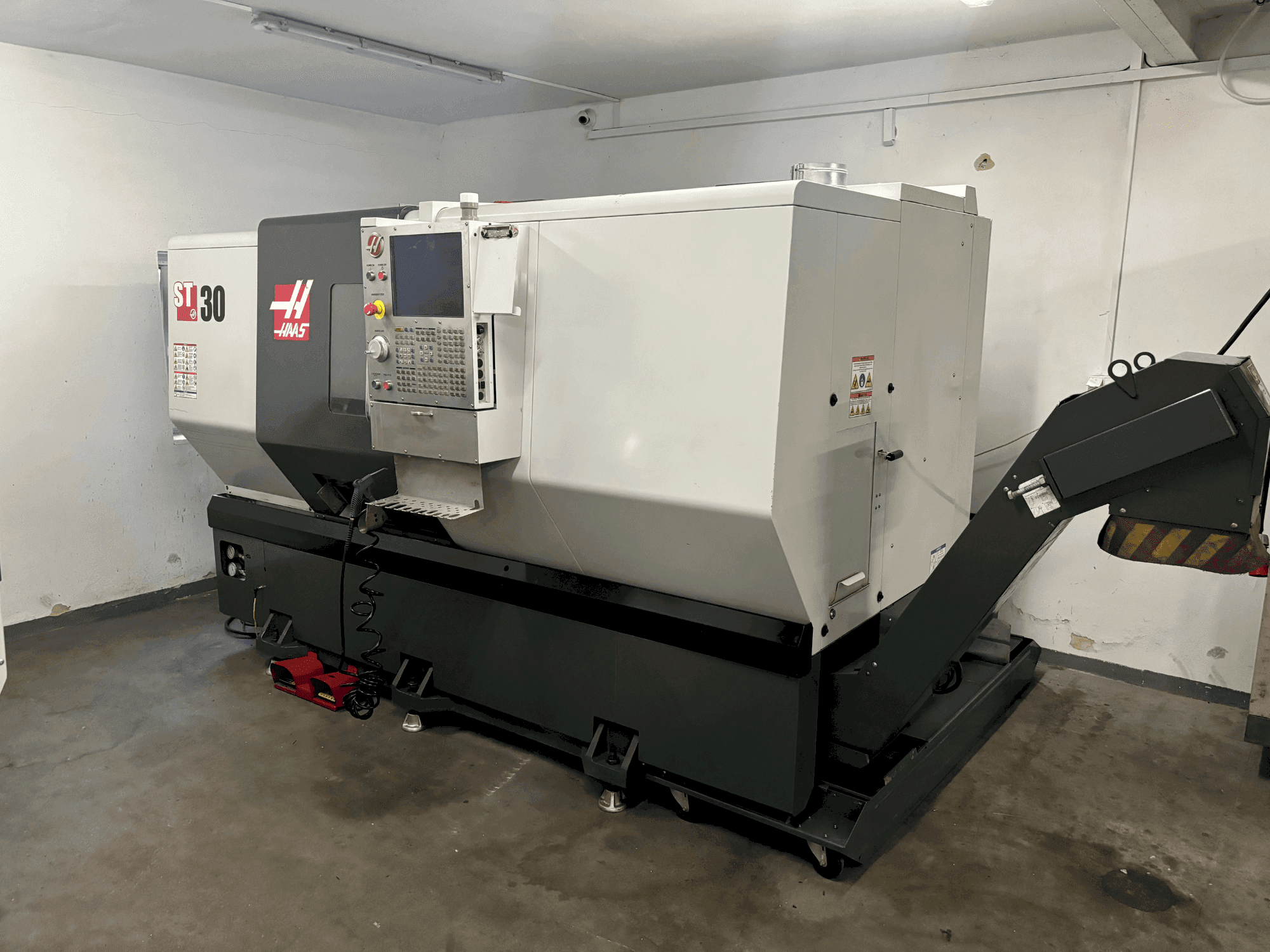

This lathe was manufactured in 2014. The HAAS ST-30 features a robust Chuck size of 254 mm, accommodating a maximum part swing of 533 mm and a turning length of up to 826 mm. Equipped with a 12-station turret and a tailstock, it enhances productivity for complex machining tasks. Its feed rates, with rapids on both X and Z axes at 24.0 m/min, coupled with a max spindle speed of 3400 rpm, ensure efficient machining cycles. The HAAS ST-30 the HAAS lathe we have for sale includes additional accessories like a HAAS SERVO BAR 3000 bar feeder and part catcher, greatly streamlining the manufacturing process. Contact us for more information about this machine.
Overview
- brand: HAAS
- year: 2014
- MODEL: ST-30
- production hours: 17751
- application type: Turning
- Location: Poland
- machine type: Lathe
- availability: Immediately
- control unit brand: HAAS
- GINDUMAC ID: PL-TUR-HAA-2014-00002
Technical Information
Control Unit
- Brand: HAAS
Main drive
- Number of spindles: 1
- Spindle speed range: 3400 1/MIN
- Spindle bore: 889 mm
- Number of axis: 2
Movement
- X-AXIS Movement: 239 mm
- X-AXIS Rapid traverse: 24.0 m/min
- Z-AXIS Movement: 826 mm
- Z-AXIS Rapid traverse: 24.0 m/min
Turret
- Number of turrets: 1
- Number of tool slots: 12
Tools
- Number of stations: 12
Additional Equipment
- - Bar Feeder: HAAS SERVO BAR 3000
- - Part Catcher
Additional Information
- Technical Machine Benefits:
- - Max. Workpiece diameter: 533 mm
- - Max. Workpiece length: 826 mm
- - High rapids on x and z axes: 24. 0 m/min
- - Tailstock included
- - Chuck size: 254 mm
- - Bar capacity: 76 mm
- - Coolant capacity: 208 l
- - Between centers: 826 mm
- Qualitative Machine Benefits:
- - Machine under power
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
