HAAS ST-40
HAAS - ST-40
2012
62,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- HAAS ST-40 Lathe

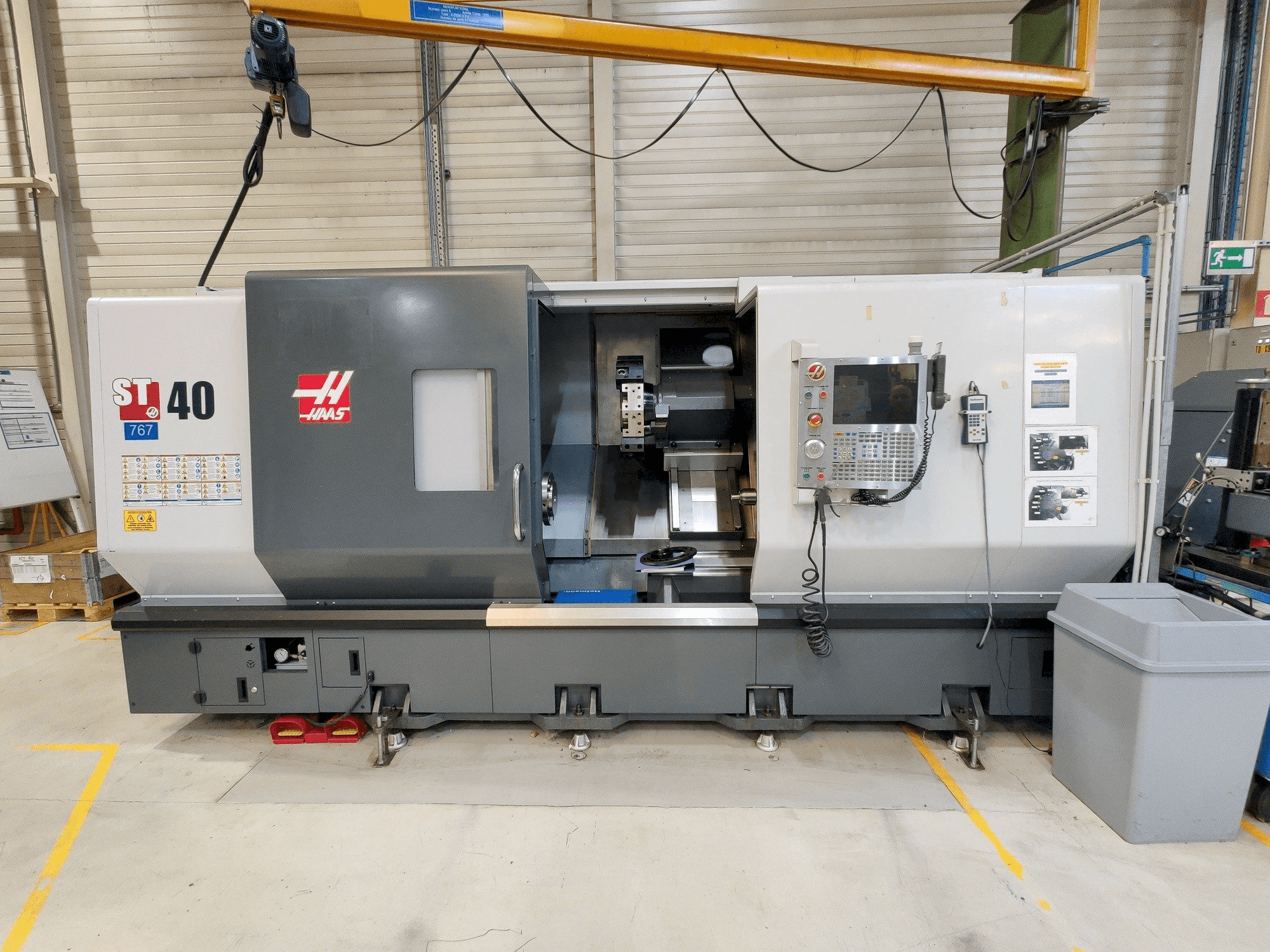

This HAAS ST-40 Lathe was made in 2012 in the United States and has only 100 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 0 - 1400 rpm, diam. max. turning length of 648 mm.
Overview
- brand: HAAS
- year: 2012
- MODEL: ST-40
- production hours: 100
- application type: Turning
- Location: Netherlands
- machine type: Lathe
- availability: Immediately
- control unit brand: Haas
- GINDUMAC ID: NL-TUR-HAA-2012-00002
Technical Information
General Data
- Measurements width: 5817 mm
- Measurements depth: 3531 mm
- Measurements height: 2261 mm
- Machine weight: 12247 kg
Control Unit
- Brand: Haas
Main drive
- Spindle speed range: 0 - 1400 1/MIN
- Spindle motor power: 29.8kW
- Spindle bore: Ø 117.3 mm
Movement
- X-AXIS Movement: 432 mm
- X-AXIS Rapid traverse: 18 m/min
- Z-AXIS Movement: 1118 mm
- Z-AXIS Rapid traverse: 18 m/min
Media
- Main electronic connection: 380 V, three-phase, 50-60 Hz
- Power consumption: 28 kVA
Additional Equipment
- - 12-station bolt-on turret
- - Memory expansion up to 1 MB
- - High torque 2-stage gearbox
- - Rigid tapping
- - 15” LCD color display and USB interface, Remote control
- - Programmable hydraulic tailstock
- - Locking access to memory by key switch on the panel
- - Additional filtration system 25µ
- - Hinged Belt Chip Conveyor
- - Rapid detection of power outages
Additional Information
- Technical Machine Benefits:
- - Tank capacity: 340 l
- - Compressed air: 113 l/min @ 6. 9 bar
- - Torque at the spindle: 1998 nm @ 150 rpm
- - Spindle nose: a2-11
- - Cylinder bore: Ø 178 mm
- - Passage diameter: 876 mm
- - Diam. Max. Turning length: 648 mm
- - Max length turning length: 1118 mm
- - Positioning accuracy: ± 0. 0051 mm
- - Repeatability accuracy: ± 0. 0025 mm
- Qualitative Machine Benefits:
- - Coolant through the center high pressure 20 bar
- - Ethernet interface
- - Definable user macros
- - Spindle orientation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
