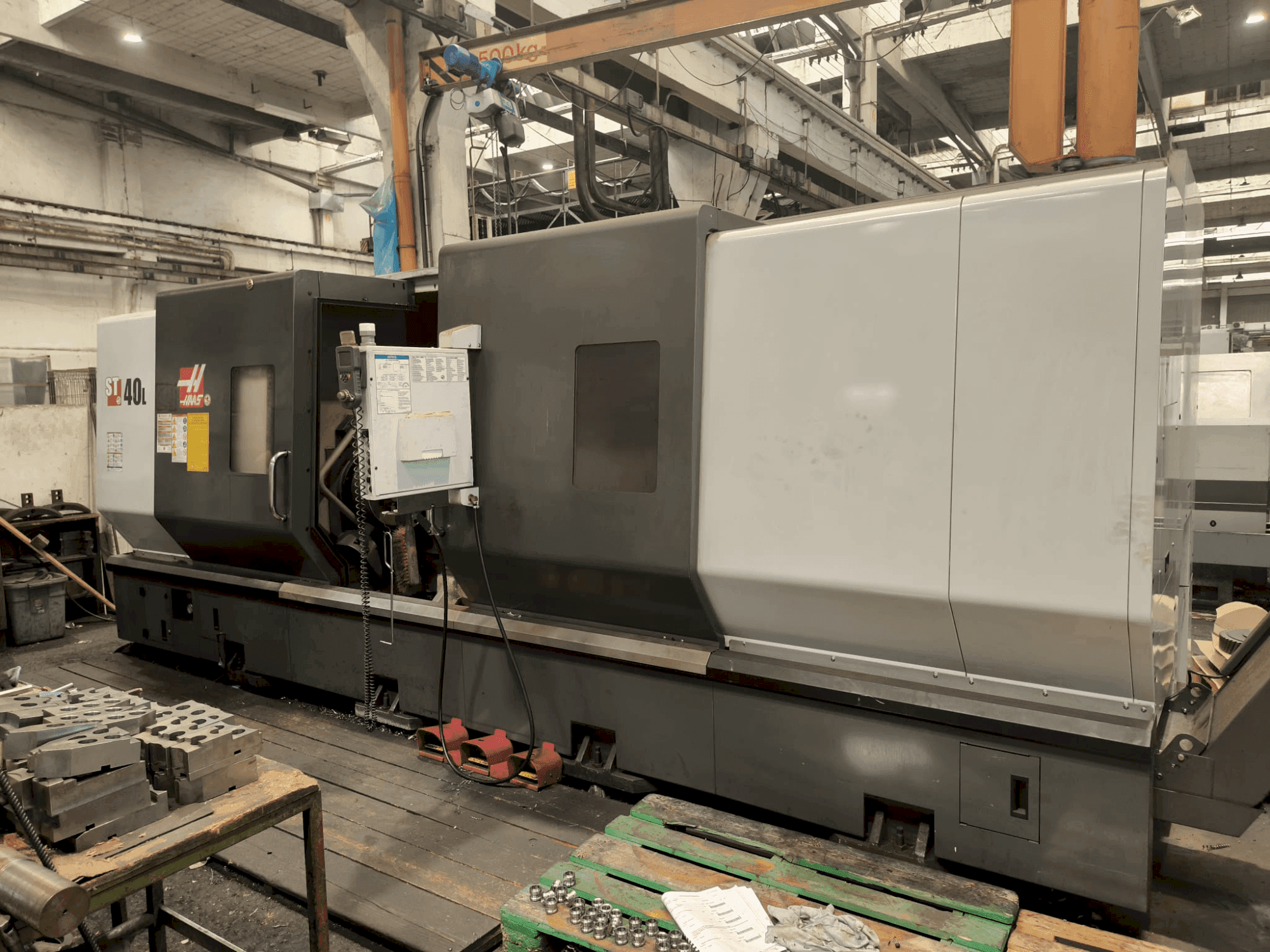

Front view of HAAS ST40L  machine

HAAS - ST40LHR-TUR-HAA-2014-00001

82,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS ST40L lathe was manufactured in 2014. It features a swing diameter over front apron of 876 mm and a maximum cutting length of 2032 mm. Equipped with a 12-station BOT turret and a 2-speed gearbox, it offers a spindle speed up to 2400 rpm and a spindle power of 29.8 kW. Ideal for handling large and complex parts, the HAAS ST40L machine we have for sale. Contact us for further details regarding this lathe.

Overview

  • brand: HAAS
  • year: 2014
  • MODEL: ST40L
  • application type: Turning
  • Location: Croatia
  • machine type: Horizontal Turning Machine
  • availability: Immediately

Technical Information - HAAS ST40L

General Data

  • Measurements width: 242 cm MM
  • Measurements depth: 646 cm MM
  • Measurements height: 267 cm MM
  • Machine weight: 13563 kg

Main drive

  • Spindle speed range: 2400 rpm 1/MIN
  • Spindle motor power: 29,8 kW (41,0 kW with XP OPTION)
  • Spindle bore: 117,3 mm
  • Number of axis: 2

Movement

  • X-AXIS Movement: 432 MM
  • Z-AXIS Movement: 2032 MM

Workpiece

  • Workpiece drm over bed: 648 mm
  • Workpiece drm over support: 2032 mm

    Additional Equipment

    • - Max Torque: 1898.0 Nm @ 150 rpm (2847.0 Nm @ 150 rpm with XP OPTION)
    • - Max Thrust X: 24465 N / Max Thrust Z: 40034 N
    • - Feedrates : Rapid Traverse X: 18.0 m/min Rapid Traverse Z: 8.1 m/min
    • - Workpiece: Chuck Size: 381 mm / Bar Capacity: 102 mm
    • - Number of Tools: 12-Station BOT / OD vs ID Tools: Any Combination (will vary with turret) / Boring Bar Rear Clearance: 111.0 mm
    • - Coolant Capacity: 360 L
    • - Air Requirements: Air Required: 113 L/min @ 6.9 bar / Inline Air Hose: 3/8 in / Coupler (Air): 3/8 in / Air Pressure Min: 5.5 bar
    • - Electrical Specifications: Input AC Voltage (3 Phase) - Low: 220 VAC / Full Load Amps (3 Phase) - Low: 105 A / Input AC Voltage (3 Phase) - High: 440 VAC / Full Load Amps (3 Phase) - High: 53 A

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High spindle power and torque for robust performance.
        • - Versatile tooling options with a 12-station bot turret.
        • - Efficient feedrates for increased productivity.
      • Qualitative Machine Benefits:
        • - Precision and reliability with advanced spindle and turret options.

      Extra information

      • - Input AC Voltage and Full Load Amps: Provided for both low and high voltage configurations.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
