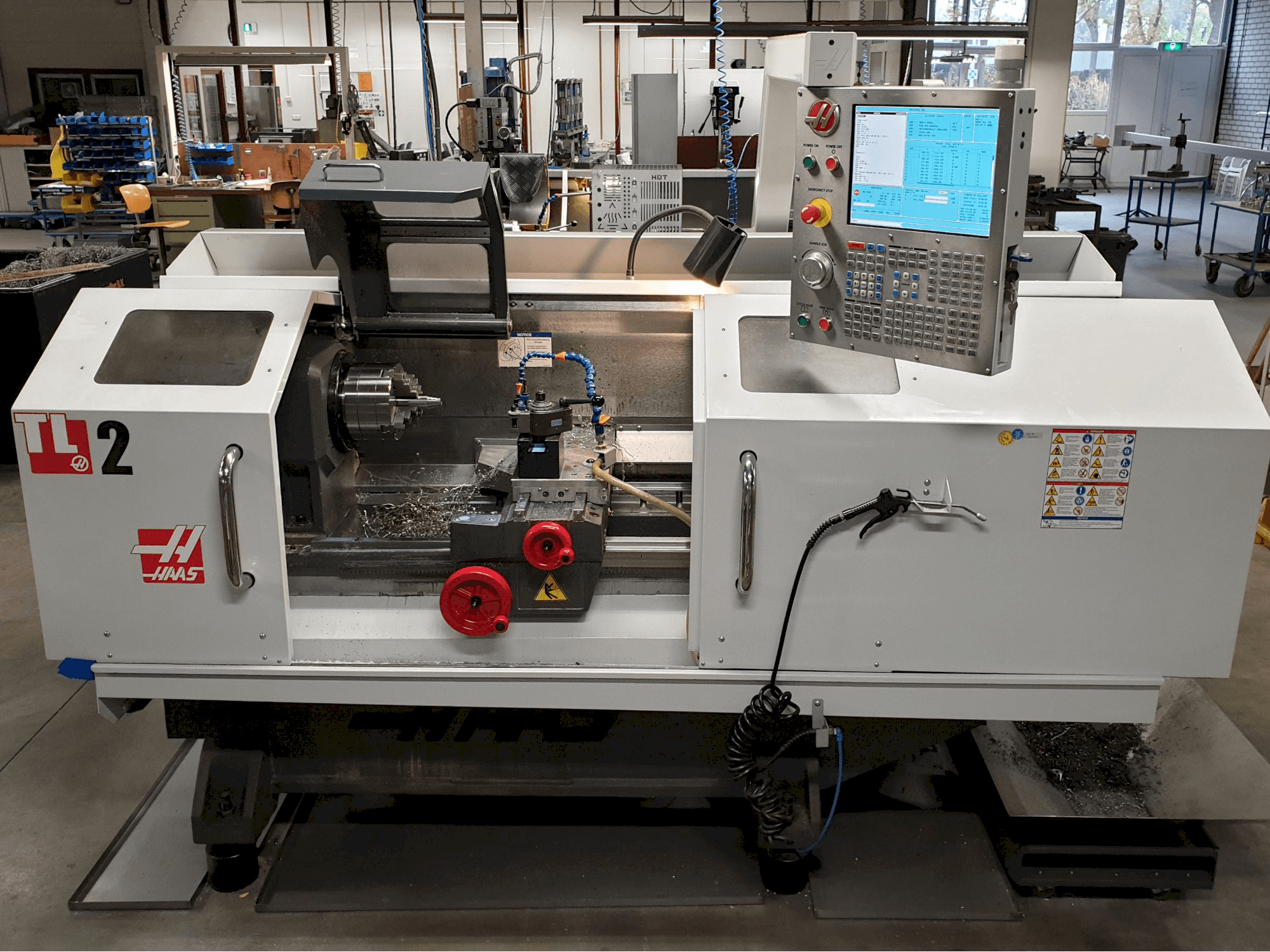

This HAAS TL-2 Lathe was manufactured in the United States in 2012. Operated through a Control unit of the same brand, its programming system consists of 1 Megabyte program memory. This machine counts with 2 axis and a body measurement of 406 x 1218 mm performing 200 revolutions per minute. It is equipped with an A2-6 spindle, a 10 HP Vector Drive and a coolant pump kit. Its heavy-duty cross-slide accepts a variety of tool post options, whereas the optional tailstock with manual quill provides additional support for long workpieces. Several additional equipment is included in the delivery of this almost new machine.
Overview
- brand: HAAS
- year: 2012
- MODEL: TL-2
- production hours: 480
- application type: Turning
- Location: Netherlands
- machine type: Lathe
- availability: Sold
- control unit brand: HAAS
- GINDUMAC ID: NL-TUR-HAA-2012-00001
Technical Information
General Data
- Measurements width: 3125 mm
- Measurements depth: 1730 mm
- Measurements height: 2010 mm
- Machine weight: 1860 kg
Control Unit
- Brand: HAAS
- CNC main language: Dutch
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 1800 rpm 1/MIN
Movement
- X-AXIS Movement: 203 mm
- Z-AXIS Movement: 1219 mm
Workpiece
- Workpiece drm: 76 mm
- Workpiece x: 508 mm
- Workpiece z: 279 mm
Turret
- Number of turrets: 1
Tools
- Max tool length: 20 MM
Media
- Main electronic connection: 366 - 425 V
- Power consumption: 14 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - 1x 3-jaw scroll plate chuck
- - 13x Multi fix tooling
- - 1x Collet chuck
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
