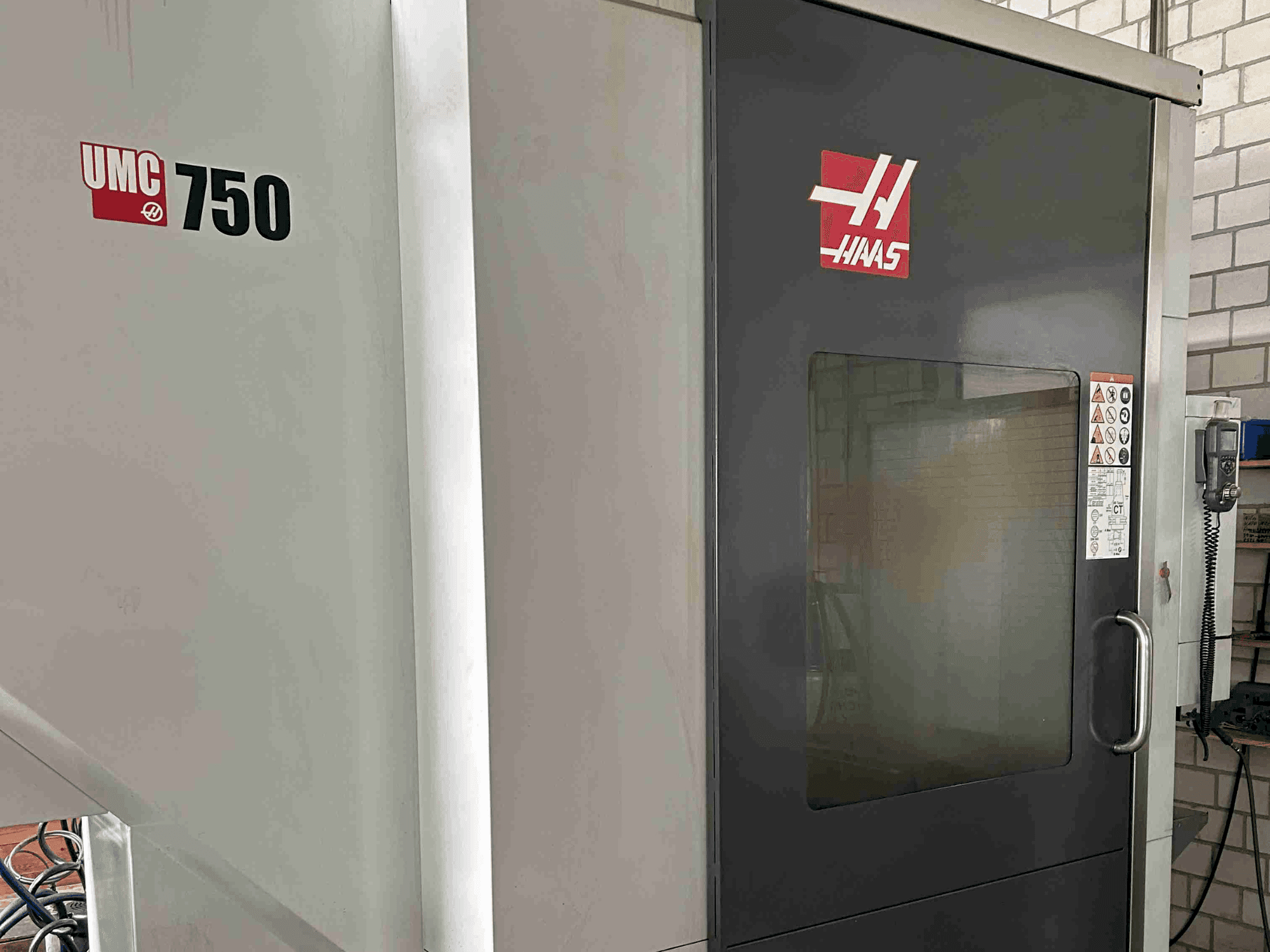

Front view of HAAS UMC-750  machine

HAAS - UMC-750DE-MIL-HAA-2017-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis HAAS UMC-750 vertical machining centre was manufactured in 2017. It features a SK-40 spindle with 12,000 rpm and a 22.4 kW vector drive. Equipped with a 40+1 tool changer and a 500 mm 2-axis rotary/swivel table, it offers rapid traverse rates up to 30.5 m/min. Additional features include a coolant through spindle at 69 bar and a hinged belt chip conveyor. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: UMC-750
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - HAAS UMC-750

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Tool taper: SK-40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 762 mm
  • Y-AXIS Movement: 508 mm
  • Z-AXIS Movement: 508 mm

Tools

  • Number of index: 41

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Fully functional, under power, ready for demonstration
    • - Integrated 500 mm 2-axis rotary/swivel table
    • - Intuitive wireless touch probe system
    • - Programmable coolant nozzle
    • - Additional coolant filter system 25μ
    • - Hinged belt chip conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ikz: yes (69 bar)
        • - High throughput with rapid traverse rates up to 30. 5 m/min
        • - Efficient and precise machining with integrated rotary table and wireless touch probe
        • - Enhanced coolant delivery through spindle with high pressure (69 bar)
      • Qualitative Machine Benefits:
        • - Enhanced machining accuracy and surface finish
        • - Improved tool life and reduced machine downtime
        • - Improved coolant management with programmable nozzle and additional filter system

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
