➤ Used HAAS VF-8 Machining Center For Sale | gindumac.com

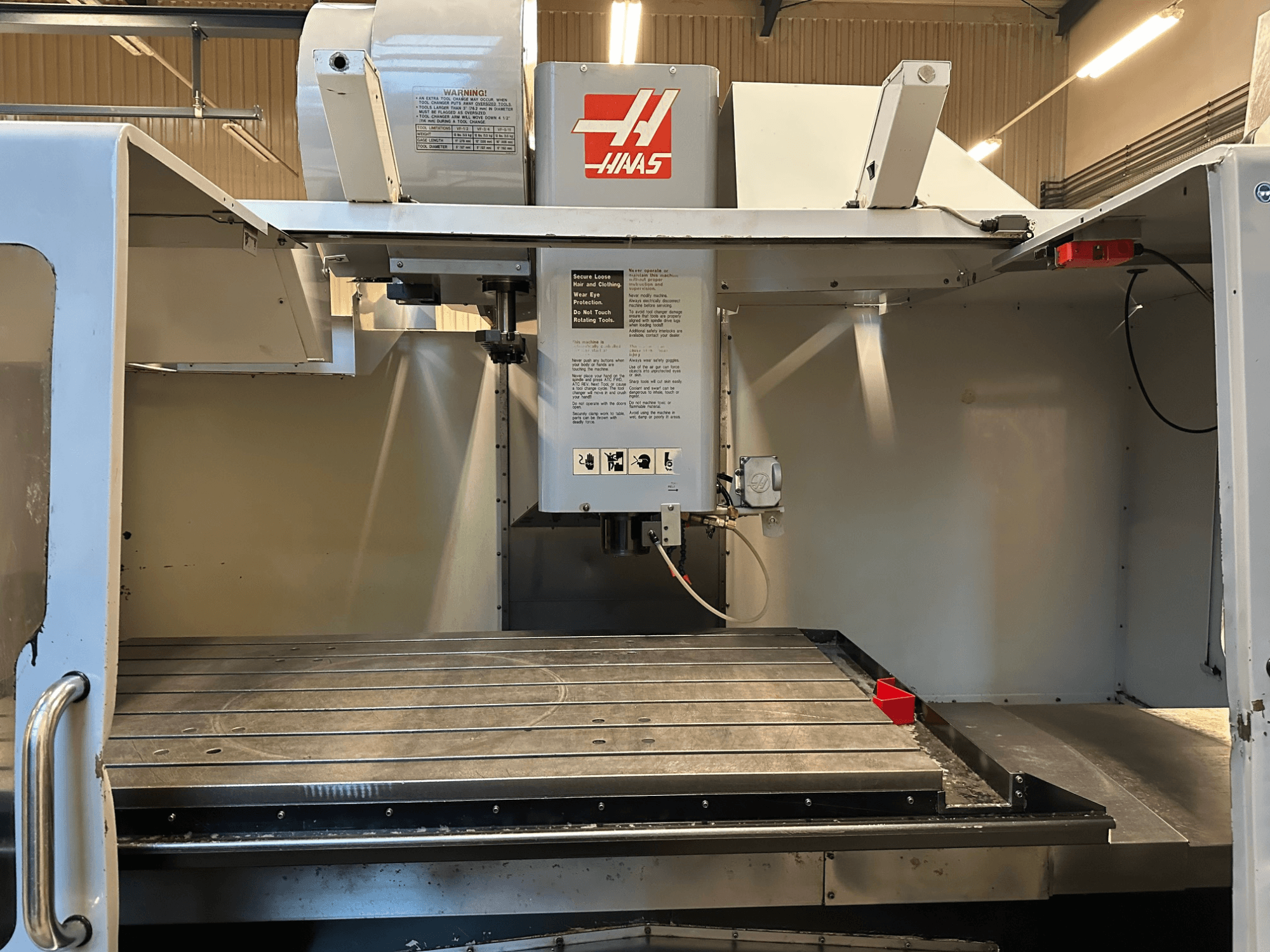

This 3-axis HAAS VF-8 vertical machining center was manufactured in 2006. It operates on a voltage of 360-480, with a phase 3 and frequency of 50/60 Hz. The full load capacity is 20 AMPS, with a largest load of 35 AMPS. Consider the opportunity to buy this HAAS VF-8 vertical machining center. Contact us for more information.

Overview

brand: HAAS
year: 2006
MODEL: VF-8
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - HAAS VF-8

Movement

Number of Axes: 3
X-axis Travel: 1626 mm
Y-axis Travel: 1016 mm
Z-axis Travel: 762 mm

Technical Specification

Spindle Speed: 8100 RPM

Additional Information

Voltage: 360–480 V
Phase: 3
Frequency: 50/60 Hz
Full-load current: 20 A
Largest load current: 35 A
SK40
Inernal cooling through spindle 21 bar
Side-mounted 24-tool changer
Spiral chip conveyor
Programmable coolant nozzle
New gearbox and spindle installed
the following components were renewed:

Gearbox

Vector drive, spindle drive

December 2024: Double arm tool arm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
